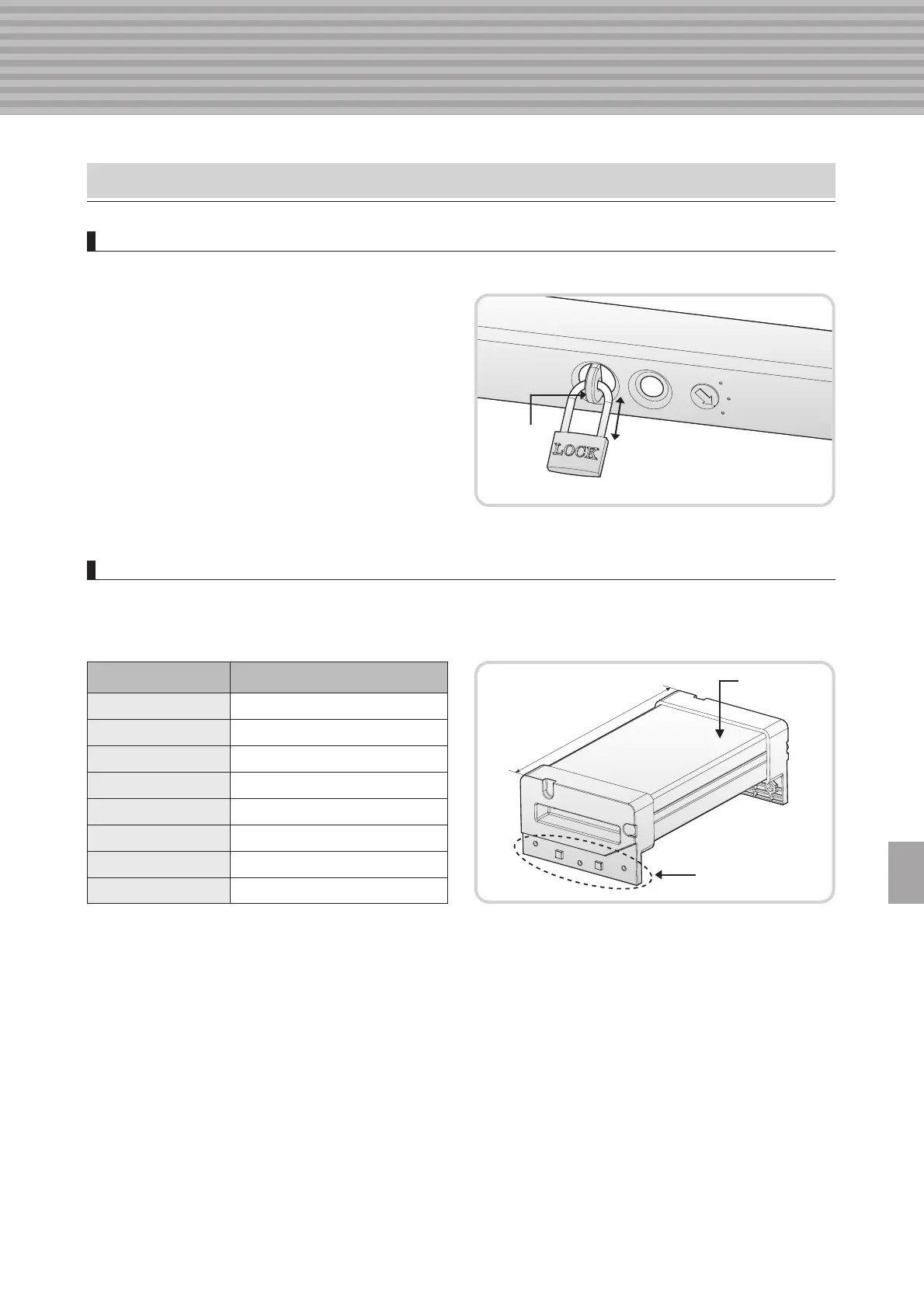

1. Externals
ACB can be positioned in CONNECTED, TEST,
DISCONNECTED. If main body of ACB is placed
in 3 positions, It is locked and stopped when
drawing in/out as operating handle does not operate.
1) If Lock operates, Draw-in/out button pops out as
shown in fig.
2) Release Lock by pushing Draw-in/out button to
continue Draw-in/out operation.
3) If fastening the lock as the figure on right side, the
main body of ACB can not be drawn in/out from
cradle.
4) Separate purchase for a lock.
Pad Lock / Position Lock
Draw-in
Button
Forward & Retreat
1. Externals and Specification
Arc which may arise while breaking faulty current is extinguished first by arc box in main body of circuit breaker
and then completely extinguished by Zero arc space. 8 types upon the length of Cover
2000AF 3P
2000AF 4P
4000AF 3P
4000AF 4P
5000AF 3P
5000AF 4P
6300AF 3P
6300AF 4P
281.4
366.4
359.4
474.4
576.4
746.4
732.4
962.4
Arc Cover (Component for Zero arc space)
Assembly Parts
Cover
Frame Cover Length
