LS Industrial Systems SV-iE5 Series User Manual

Chapter 2. Installation
2-4

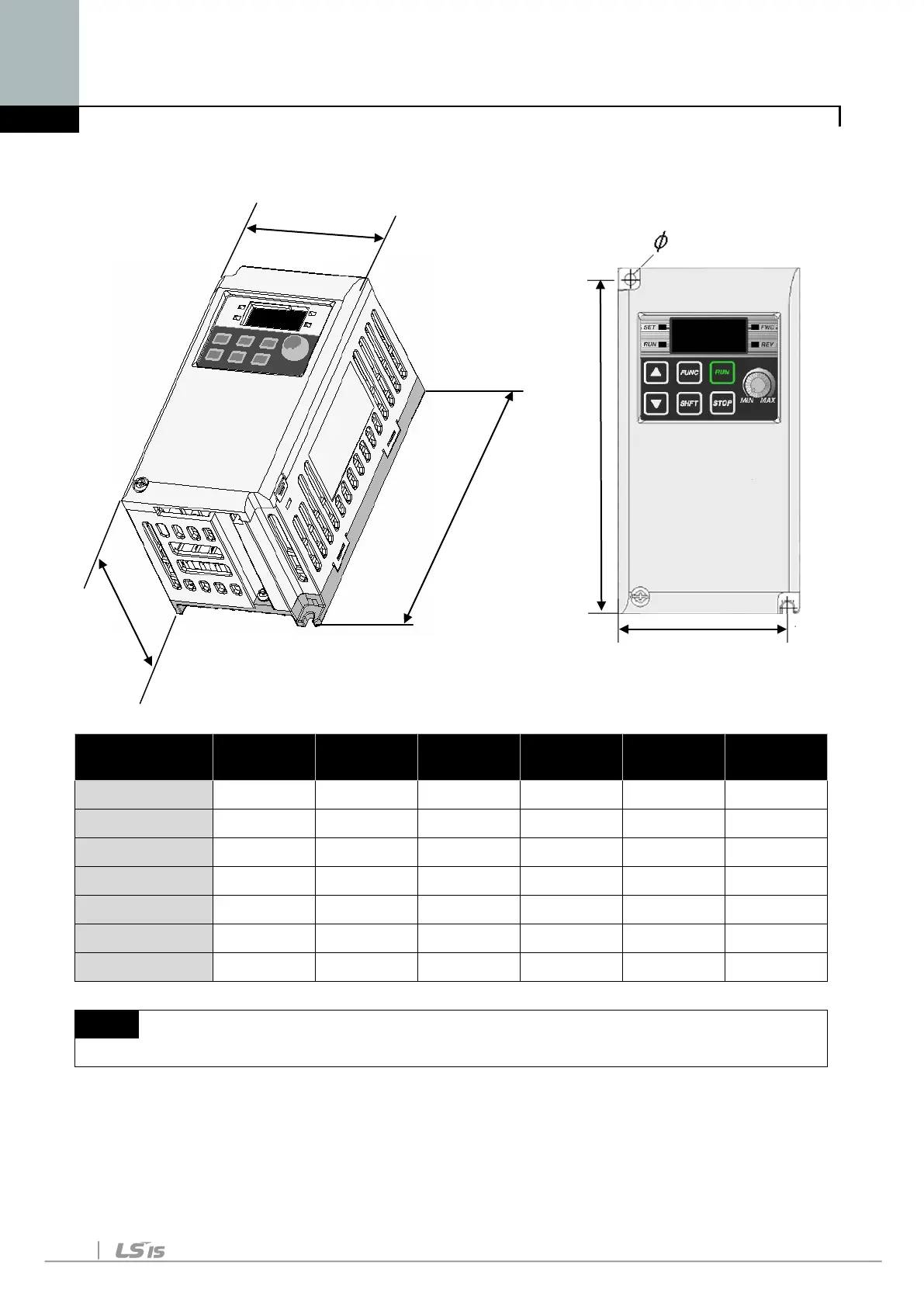

2.2 Dimensions
Inverter 001iE5-1 002iE5-1 004iE5-1 001iE5-2 002iE5-2 004iE5-2
W 68 68 68 68 68 68
H 128 128 128 128 128 128
D 85 85 115 85 85 115
H1 124 124 124 124 124 124
W1 64 64 64 64 64 64
φ 4.2 4.2 4.2 4.2 4.2 4.2
Weight(kg) 0.44 0.46 0.68 0.43 0.45 0.67
Note
Use M4 screw for fixing the inverter on a panel.
W
H
D
H1
W1
