5.5 How to set parameters

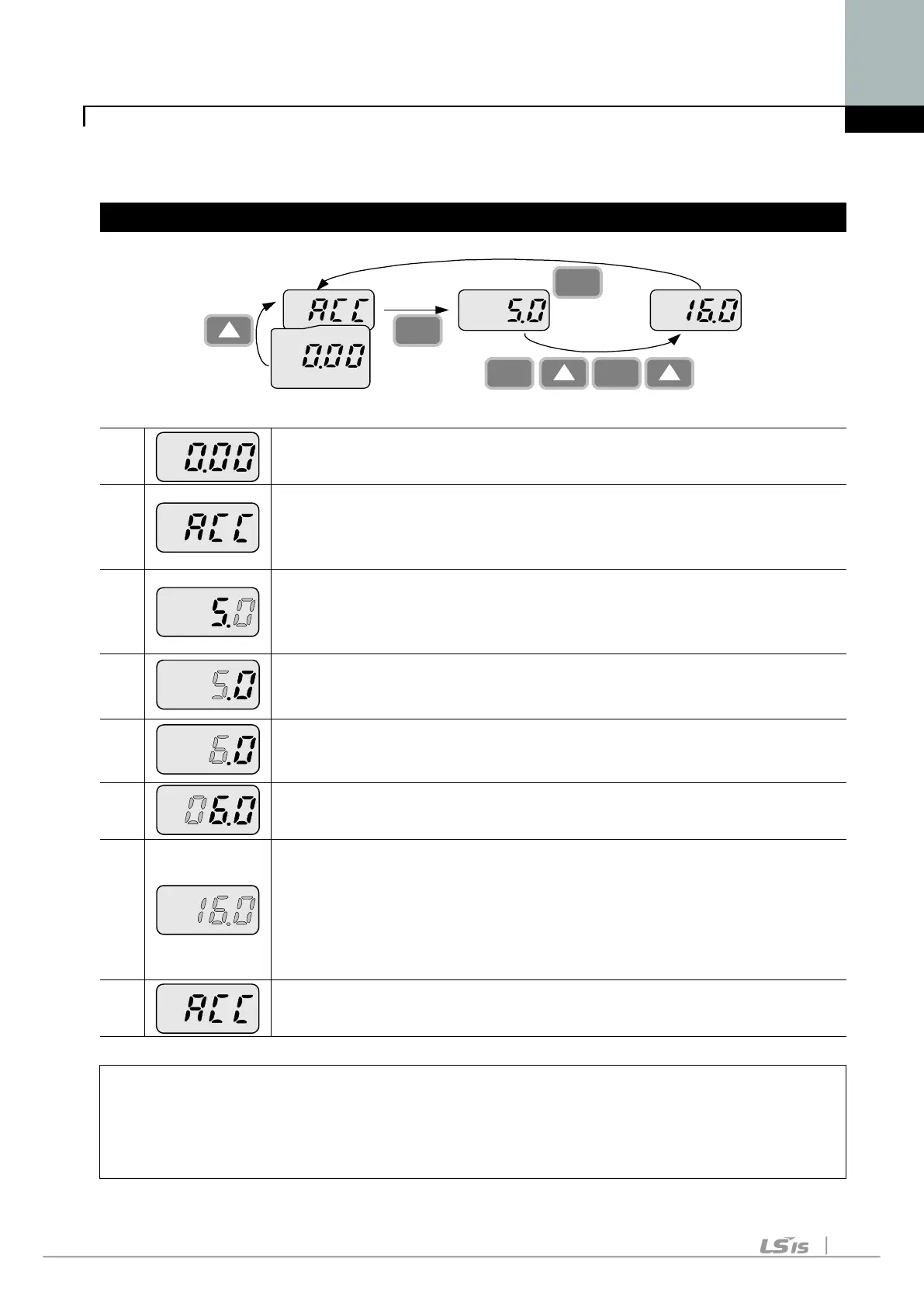

 Parameter change in Drive Group
Changing acceleration duration from 5.0 to 16.0 seconds
SHFT
SHFT
FUNC
FUNC
Drive group
1
-. It displays the target frequency, the 1st code of Drive Group.
-. Press UP() key.
2
-. It displays ACC, the acceleration duration, the 2nd code of
Drive Group.
-. Press Function(FUNC) key.
3
-. SET lamp lights up.
-. 0 in 5.0 blinks, which means that the digit may be changed.
-. Press Shift(SHFT) key.
4
-. The digit to change is moved to the first digit.
-. Press UP() key.
5
-. The digit to change is increased, being changed to 6.0.
-. Press Shift(SHFT) key.
6
-. The digit to change is moved the tenth digit.
-. Press UP() key.
7
-. It displays 16.0.
-. Press Function(FUNC) key.
-. 16.0 blinks wholly.
1)
-. Press Function(FUNC) key. ACC duration of 16.0 seconds is
entered.
8
-. SET lamp is out.
-. It displays ACC. ACC duration is changed to 16.0 seconds.
1)
That every digit blinks quickly while modifying a parameter means asking
whether to enter a modified value. At the moment, pressing Function(FUNC) key
completes the entry. To cancel it instead of entering a parameter, press any key
such as Shift(SHFT), UP() or DOWN() but Function(FUNC) key.
