Chapter 5. Loader
5.2 Alpha-numeric view on the LED

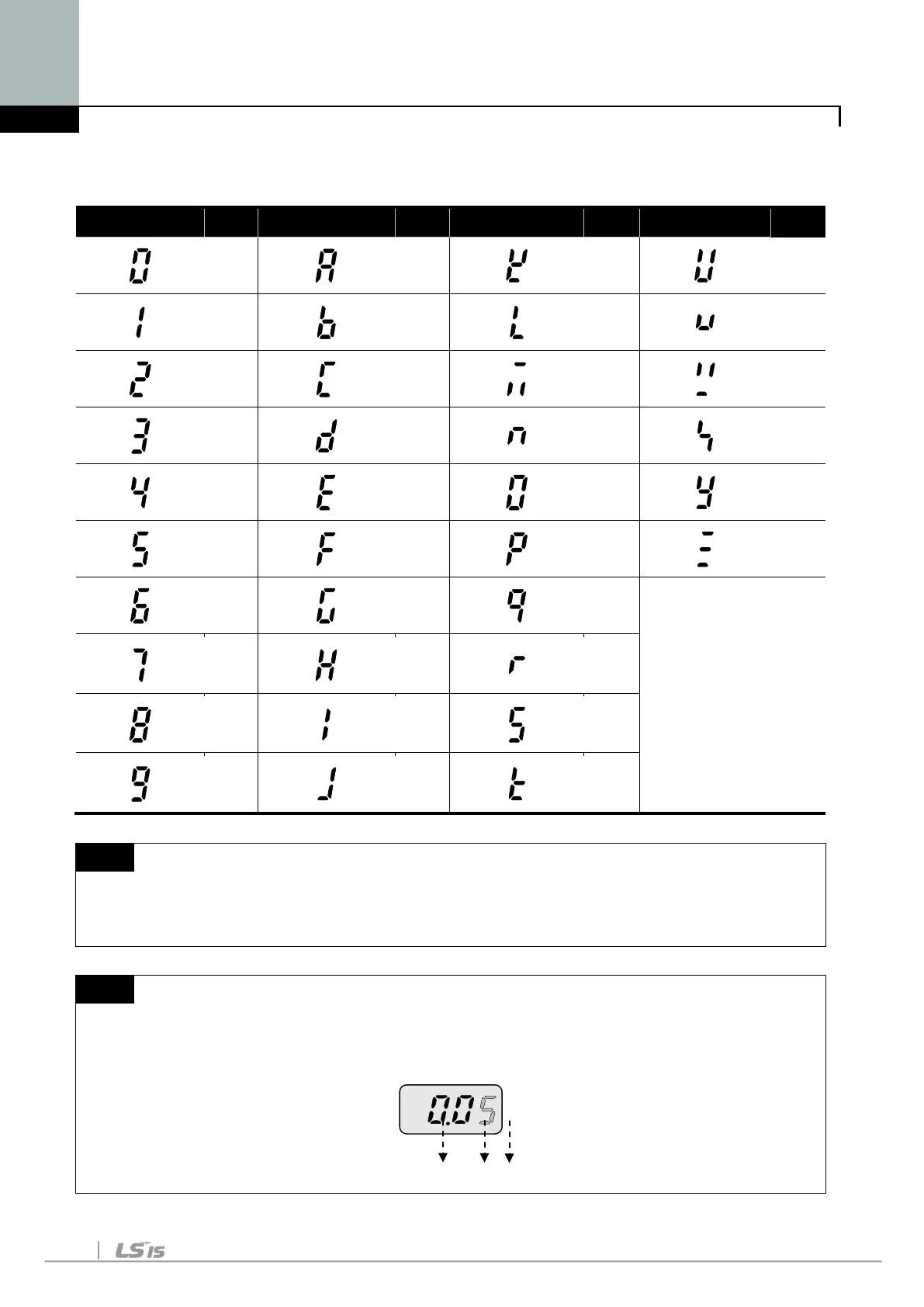

Refer to the below table summarizing the characters displayed on the LED.
Note
Inverter iE5 uses 7-segment display. Therefore, it displays numbers and alphabet
as the above table. Make sure to fully comprehend them for reading the fault
messages/functional information.
Note
The 7-Segment operates in three statuses
; on, off and blink. Throughout this
manual, on is in black, blank is in grey and off is not separately presented.
i.e.)
Inverter LED No. Inverter LED Eng. Inverter LED Eng. Inverter LED Eng.
0
A
K
U
1
B
L
V
2
C
M
W
3
D
N
X
4
E
O
Y
5
F
P
Z
6
G
Q
7
H
R
8
I
S
9
J
T
OFF ON
Blink
