Chapter 3. Wiring
3-1
3. Wiring

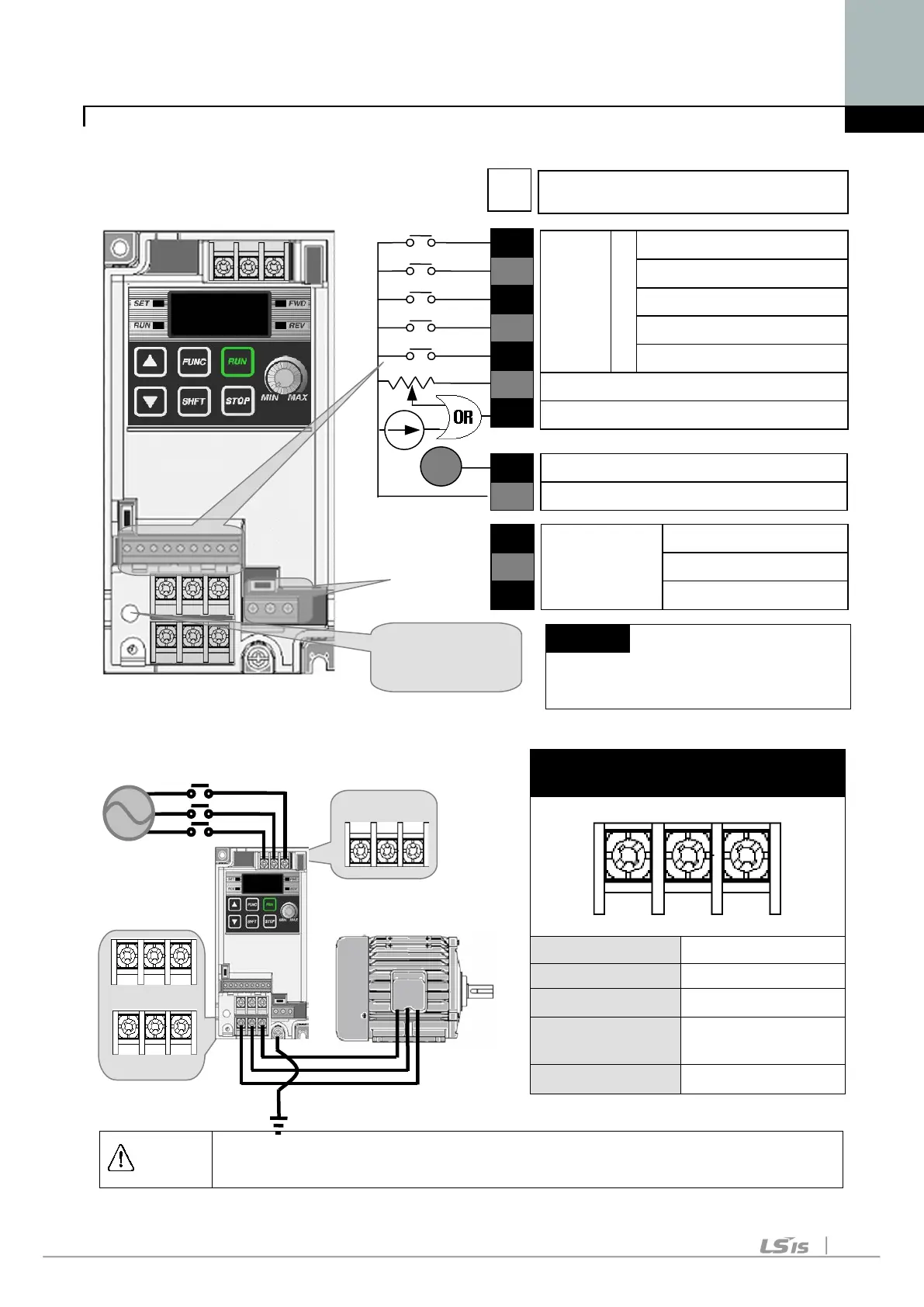

3.1 Control Terminal Wiring Diagram
3.2 Power Terminal Wiring Diagram
Caution
In case of single phase, the input power should be connected to R, S
terminals. If connected to T phase, the inverter does not work.
Note
Refer to page 3-3 for the
dimensions of the control terminal.
0.1~0.4kW IE5 Power Terminal
Specification
I wire thickness 16AWG, 1.25 mm
2
O wire thickness
16AWG, 1.25 mm
2
G wire thickness 14AWG, 1.25 mm
2
I/O terminal
16AWG, 1.25 mm
2
/3.5 φ
Terminal torque 3.5 lb-in
30A
30B
30C
A contact output
B contact output
A/B contact common
Multi function
relay output
terminal
Multi
function
Input
terminal
Input signal common
12V power(12V,100mA) for external volume
Default
FX : forward run
RX : reverse run
EST : emergency stop
JOG : jog operation
RST : trip reset
Analogue frequency input(Voltage or current)
Analogue output: 0 ~ 10V
P1
P2
P3
P4
P5
CM
VR
AM
AI
G
Power-indicative
lamp
Description
T/M
220Vac
U V W
P P1 DCN
R S T
