Chapter 5. Loader
5. Loader

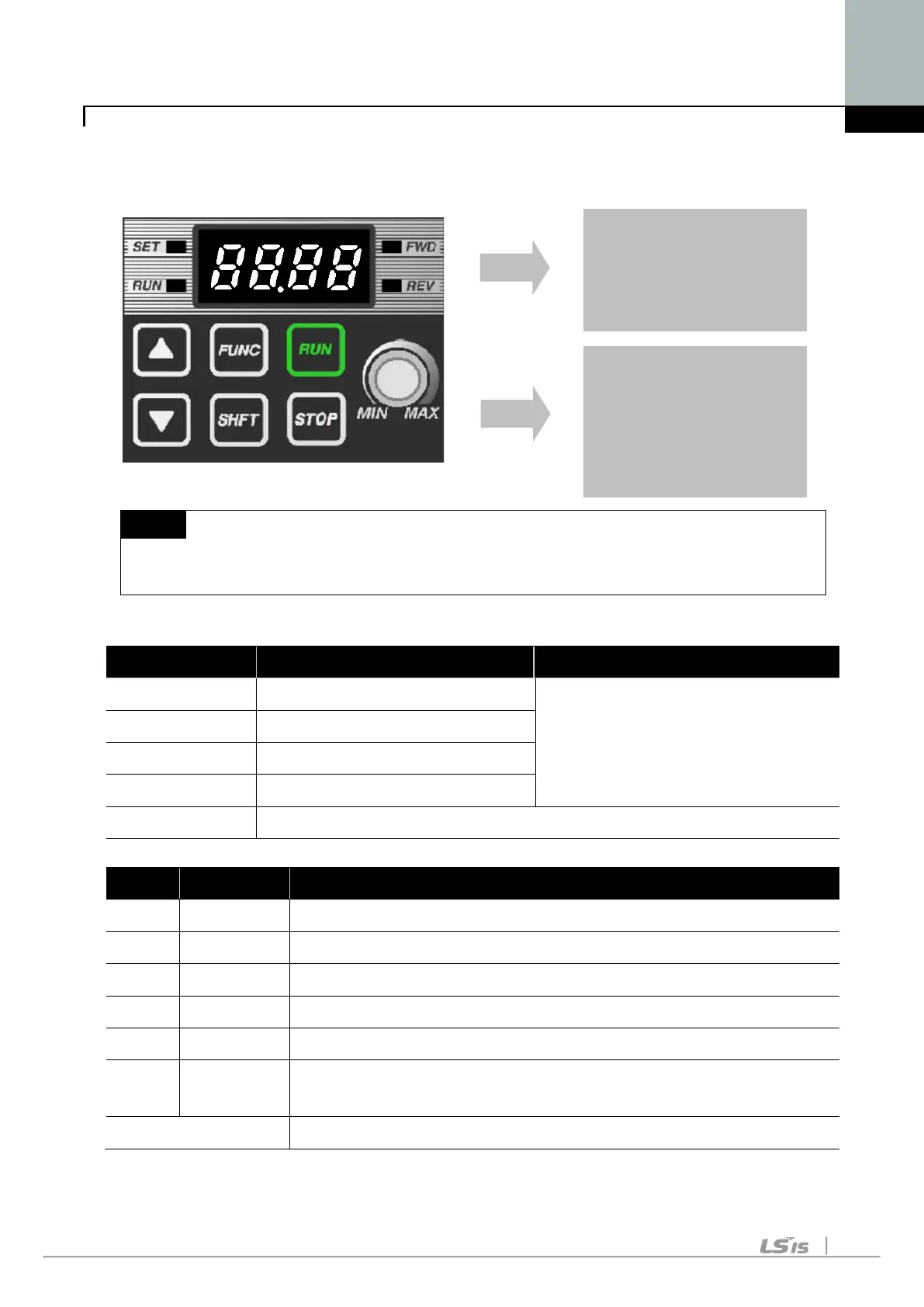

5.1 Configuration
Note
STOP key of the inverter iE5 also contains reset function, which is used to
cancel trip. Trip may be cancelled by using this key.
Display Description Remark
FWD ‘On’ during forward run
Blinks when a fault occurs
REV ‘On’ during reverse run
SET ‘On’ during parameter setting
RUN ‘On’ during inverter operation
7 Segments Displaying operation status and parameter information
Key Name Description
Up Scroll through codes or increase parameter value
Down Scroll through codes or decrease parameter value
RUN Run Operation command
STOP Stop STOP : stop during operation, RST : reset in case of fault
FUNC Function Edit parameters or save edited parameter values
SHFT Shift
Move among groups/the number of ciph
parameter setting
Volume resistance Used to change driving frequency
FWD/REV LED
SET LED
RUN LED
7-Segment LED
UP, DOWN
SHFT
FUNC
RUN, STOP/RESET
Volume Resistance
