LS Industrial Systems SV-iE5 Series User Manual

Chapter 5. Loader
5-9

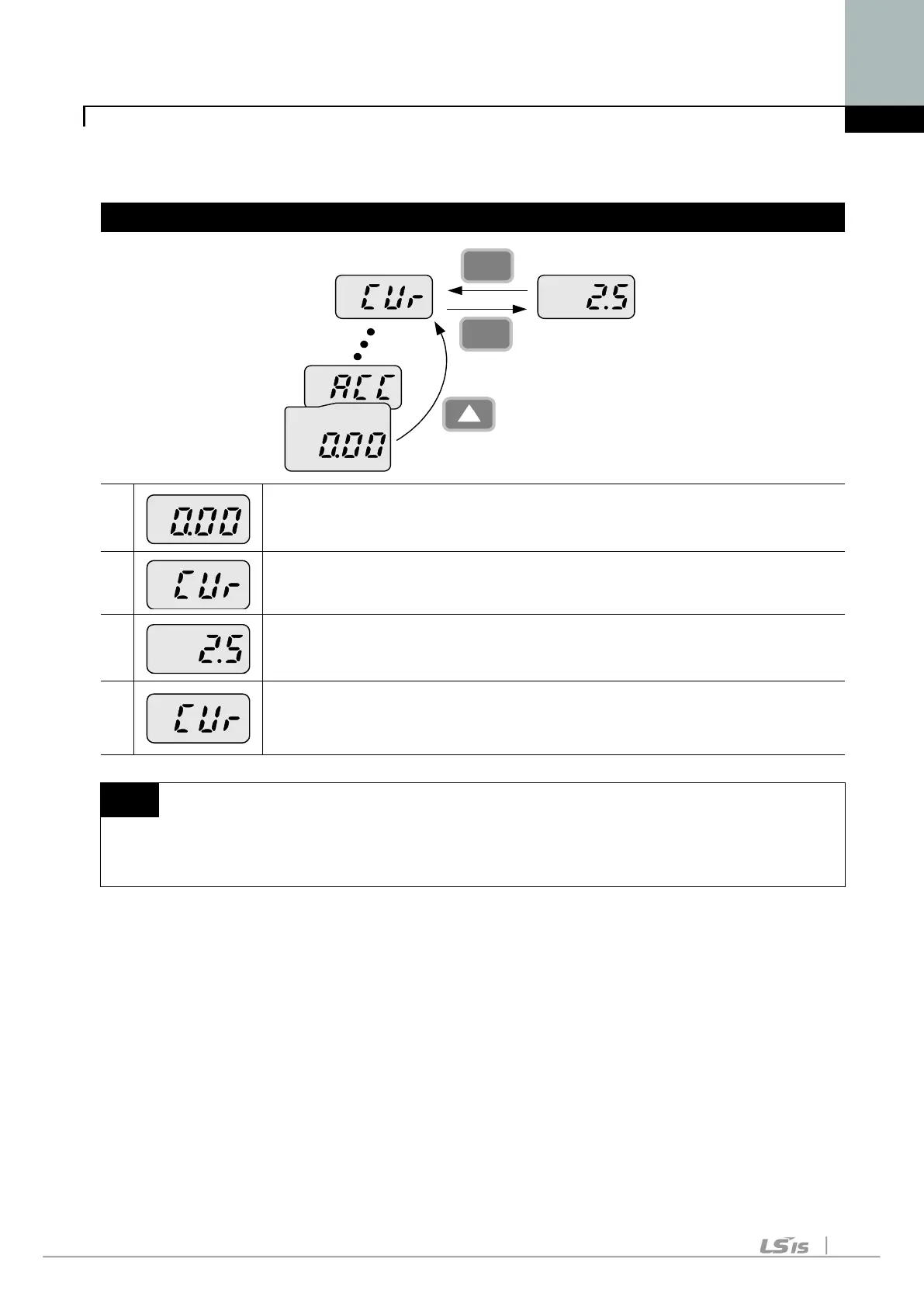

5.6 Monitoring Operation Status
 Displaying Current Output
Monitoring output current in Drive Group
FUNC
X8
FUNC
Drive group
1
-. The target frequency, Code 1 of Drive Group is displayed.
-. Press UP() key or DOWN() key until Cur is displayed.
2
-. Moved to a code to monitor output current.
-. Press FUNC key.
3
-. Present output current is 2.5[A].
-. Press FUNC key.
4
-. Return to the output current monitoring code.
Note
Other parameters in Drive group such as dCL (Inverter DC link voltage
) or vOL
(Inverter output voltage) can be monitored via the same method.
