LS Industrial Systems SV-iE5 Series User Manual

Chapter 5. Loader
5-10
 Fault display

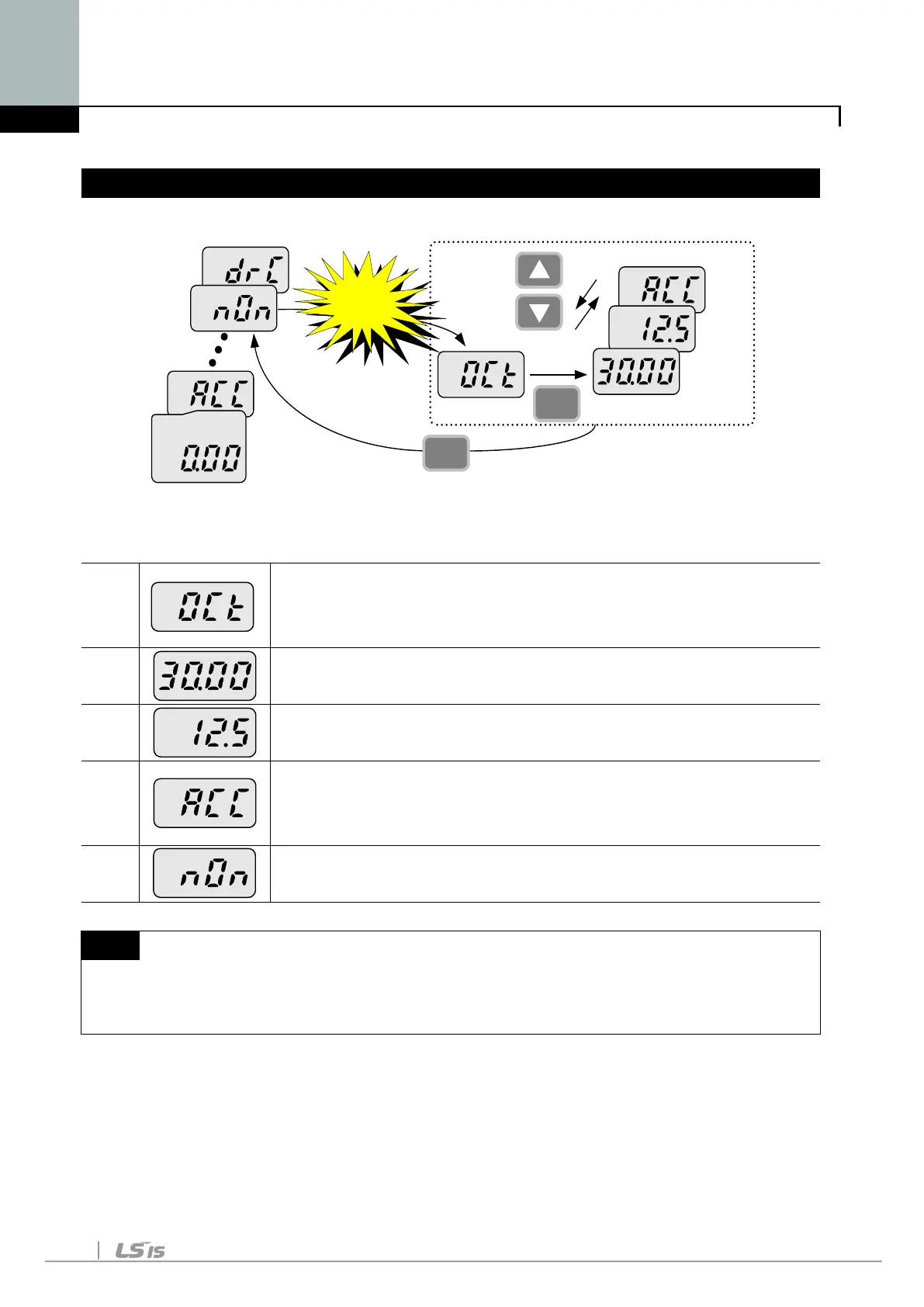

How to monitor fault condition in Drive Group
Current
Frequency
Drive group
STop
FUNC
Accel
Overcurrent
trip
1
-. OCt appears when an Overcurrent fault occurs.
-. Press FUNC key.
-. Press UP() key or DOWN () key.
2
-. The run frequency at the time of trip is displayed.
-. Press UP() key.
3
-. The output current at the time of trip is displayed.
-. Press UP() key.
4
-
. Operating status is displayed. A fault occurred during
acceleration.
-. Press STOP key.
5 -. A fault condition is cleared and “nOn” is displayed.
Note
Trip occurrence is displayed in one of modes like ACC, DEC, Stp
or Std. Fault
causes may be expected by using the indication.
