Chapter 2. Installation
2. Installation
2.1 Installation precautions
CAUTION
Handle the inverter with care to prevent the plastic components damaged.
Avoid installing the inverter in a place where vibration from bogie or press exists.
Install in a location where ambient air temperature is within the permissible
range (-10 ~ 40°C).
Maximum Surrounding Air Temperature of 40 °C (UL508C)

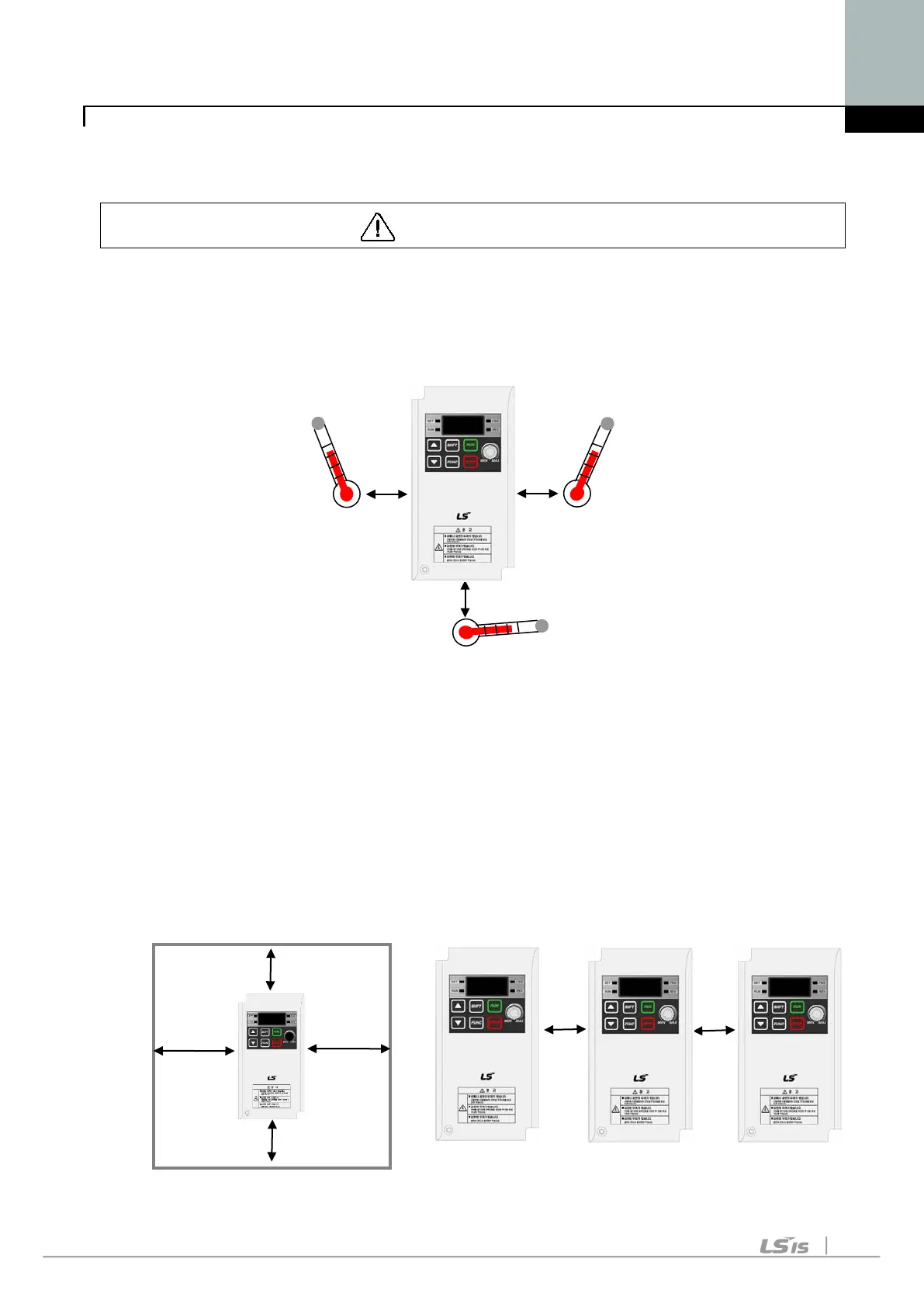

< Ambient air Temp Checking Location >
The inverter will be very hot during operation. Install it on a flame-retardant
surface.
Inverter is a heating source, so the installation place needs enough space for
proper heat dissipation.
In case installed in a panel without ventilating opening, secure space as
presented in Figure 1.
If the inverters are installed in a row, make sure to leave space between and
among them as seen in Figure 2. Note that side space may vary depending on a
panel’s cooling efficiency.
[Figure 1] [Figure 2]
5cm
5cm
