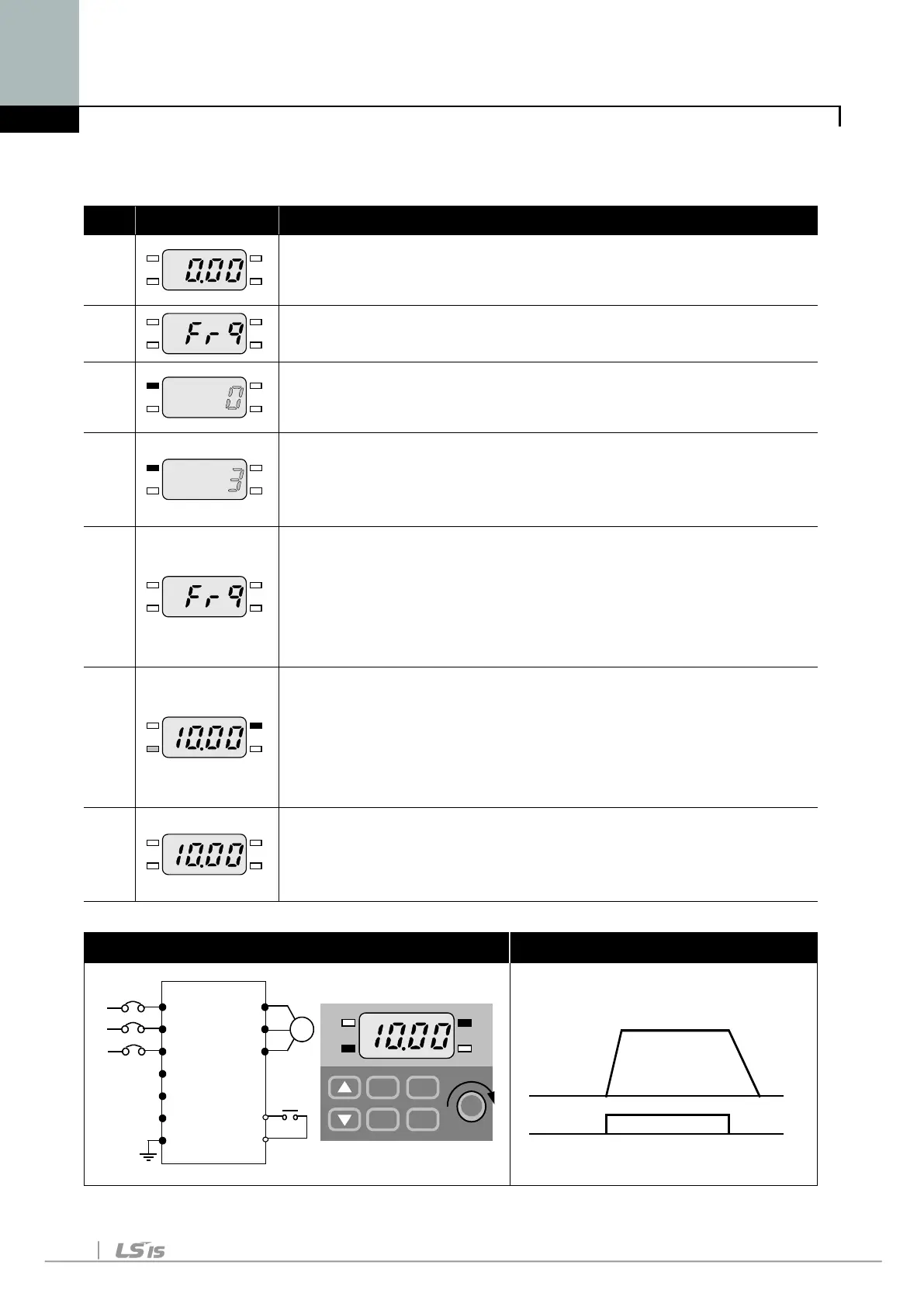

Chapter 6. Basic Operation
If setting frequency with volume resistance on the loader and commanding
operation on the inverter’s terminal
No. Indication Operation and description
1
-. Target frequency, the first code of Drive Group when
turning it on.
2
-. Moved to a code to change a frequency setting mode.
-. Press FUNC key.
3
-. The current frequency setting mode is set to 0(frequency
setting using loader).
4
-. Check 3(frequency setting by loader’s volume
resistance).
-. Press FUNC key.
-. 3 blinks quickly. Press FUNC key once more.
5
-. Frq is displayed and frequency setting mode is changed
to loader volume.
-. Press SHFT moves to target frequency, the first code of
Drive Group.
-. Turn the loader volume to MAX or MIN to set to
6
-. Turn on the switch between P1 (FX) and CM.
-. FWD(forward run) lamp of the inverter display blinks and
accelerating frequency is displayed on the LED.
-. When run frequency 10Hz is reached, the value is
displayed as shown left.
-. Turn off the switch between P1 (FX) and CM terminals.
7
-. FWD(forward run) lamp of the inverter display blinks and
decelerating frequency is displayed on the LED.
-. When run frequency is reached to 0Hz, Run and FWD
lamp turn off and target frequency(10.00)is displayed
Wiring diagram Operating pattern
M
L1 (R)
L2 (S)
(T)
P
P1
N
G
U
V
W
P1(FX)
CM
220 Vac
FUNC
SHFT
STop
RUN
Frequency
P1(FX)-CM
ON
OFF
10 Hz
