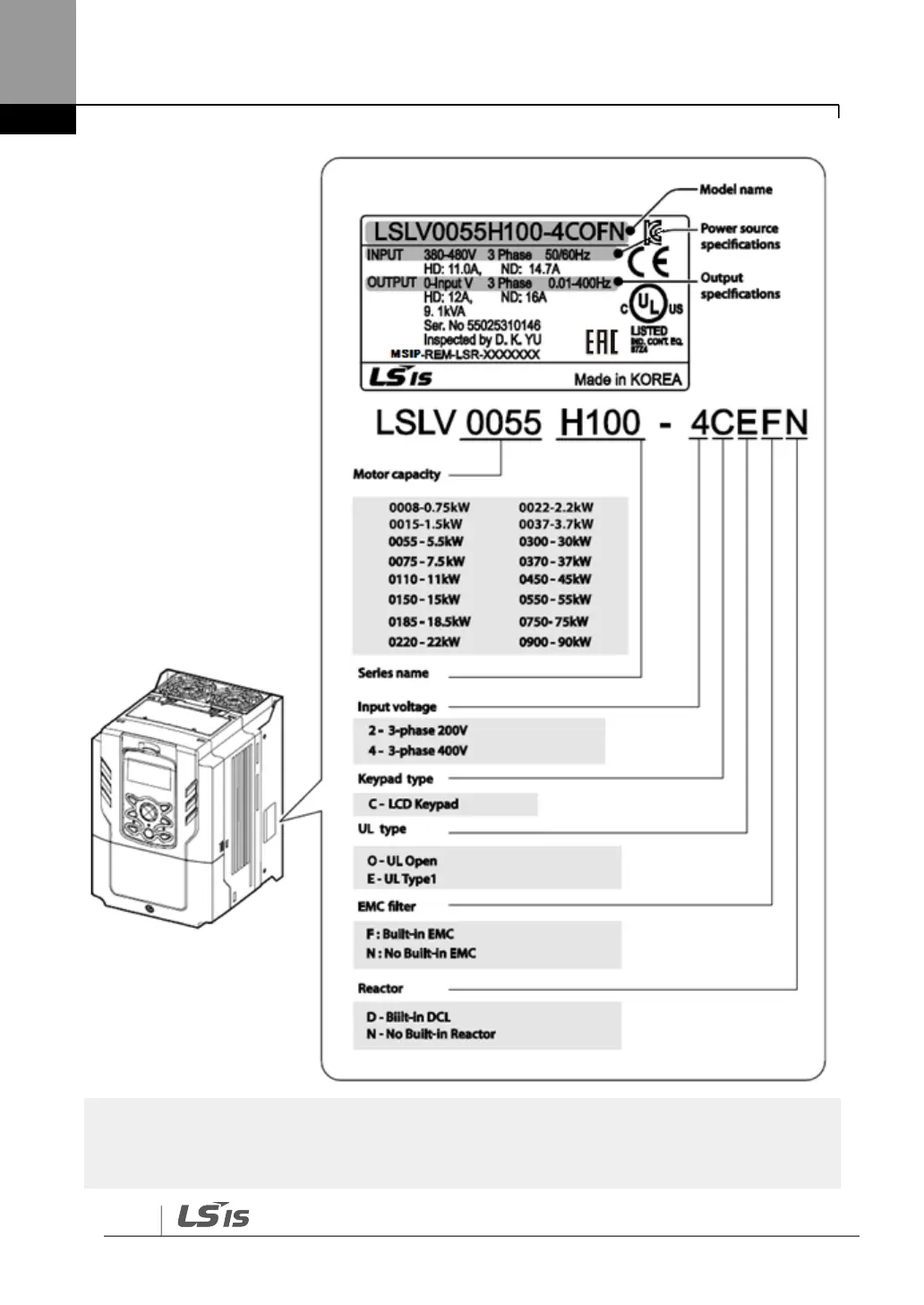

Preparing the Installation

Note

The H100 75/90 kW, 400 V inverters satisfy the EMC standard EN61800-3 without installation of

optional EMC filters.
