Learning to Perform Basic Operations

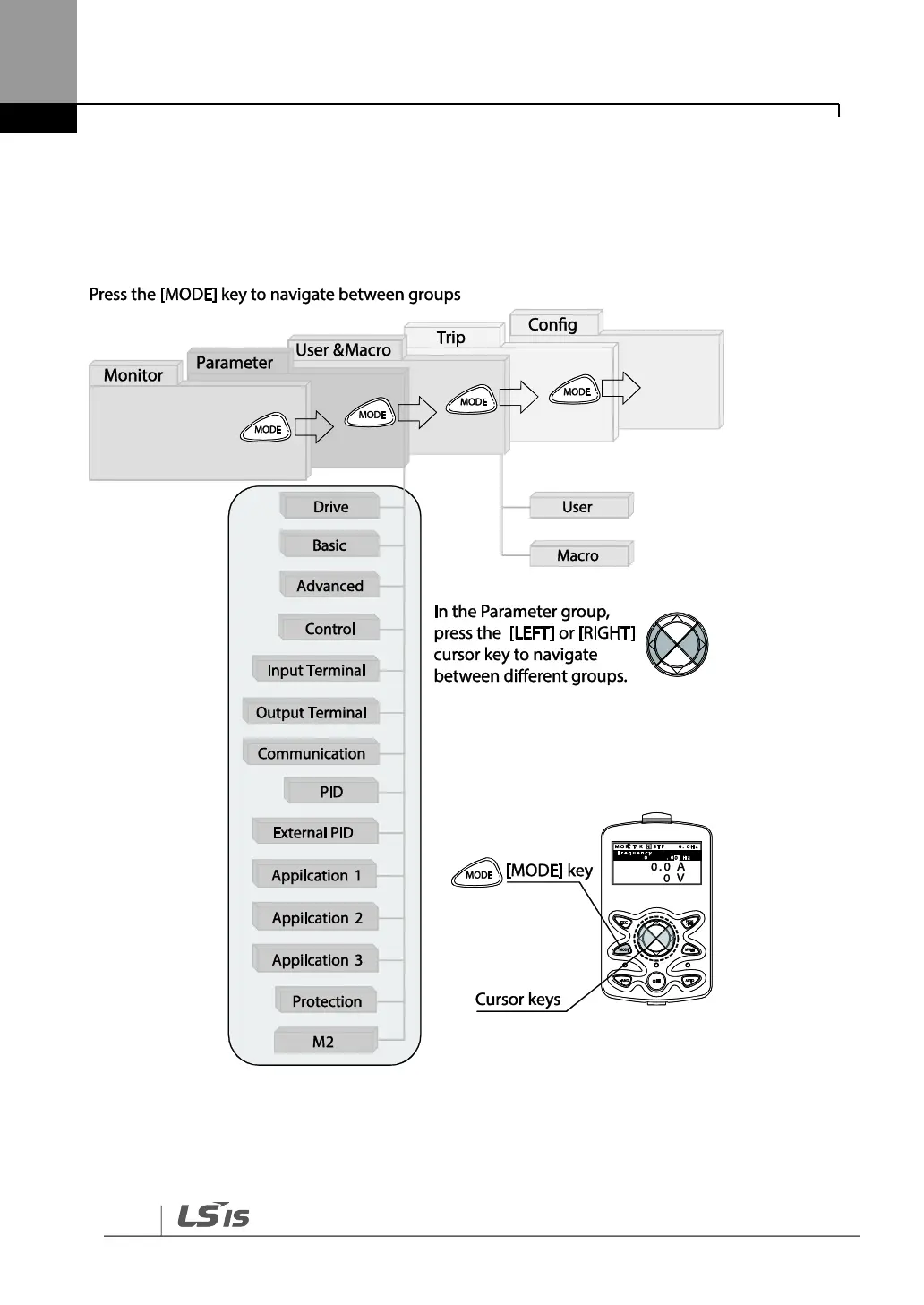

3.1.3 Display Modes

The H100 inverter uses 5 modes to monitor or configure different functions. The parameters

in Parameter mode and User & Macro mode are divided into smaller groups of relevant

functions.
