9-43

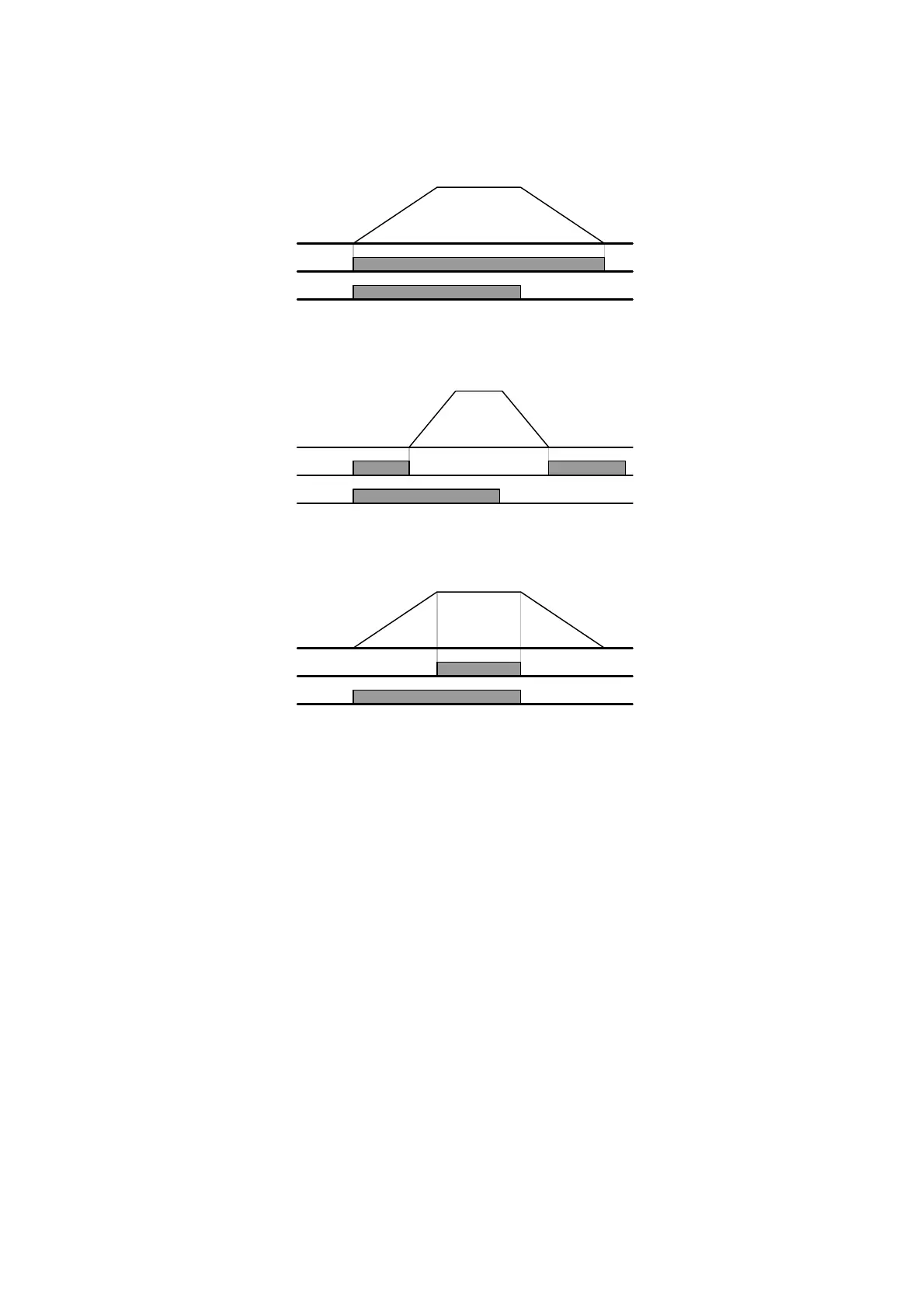

z 12: During operation
Activated when run command is input and inverter outputs its voltage.
z 13: During stop
Activated during stop without active command.
z 14: during constant run
Activated during constant speed operation.
z 15: During speed searching
Refer to page 8-17.
z 16: Wait time for run signal input
This function becomes active during normal operation and that the inverter
waits for active run command from external sequence.
z 17: Fault output
The parameter set in I56 is activated.
For example, if setting I55, I56 to 17 and 2, respectively, Multi-function
output relay will become active when trip other than “Low voltage trip”
occurred.
z 18: Cooling fan trip alarm
Used to output alarm signal when H78 is set to 0(constant operation at
cooling fan trip). Refer to page 8-31.
z 19: Brake signal
It is used for signal output when set for use of external brake signal. Refer
to the page 8-26.
Freq.
MO
Run
command
Freq.
MO
Run
command
Freq.
MO
Run
command
