XGB Analog edition manual
(5) Temperature conversion characteristic
Thermocouple input module converts the thermocouple input with non-linear characteristics into
A/D and outputs the temperature conversion that is linearly treated.
Temperature conversion to thermocouple input has non-linear characteristics.

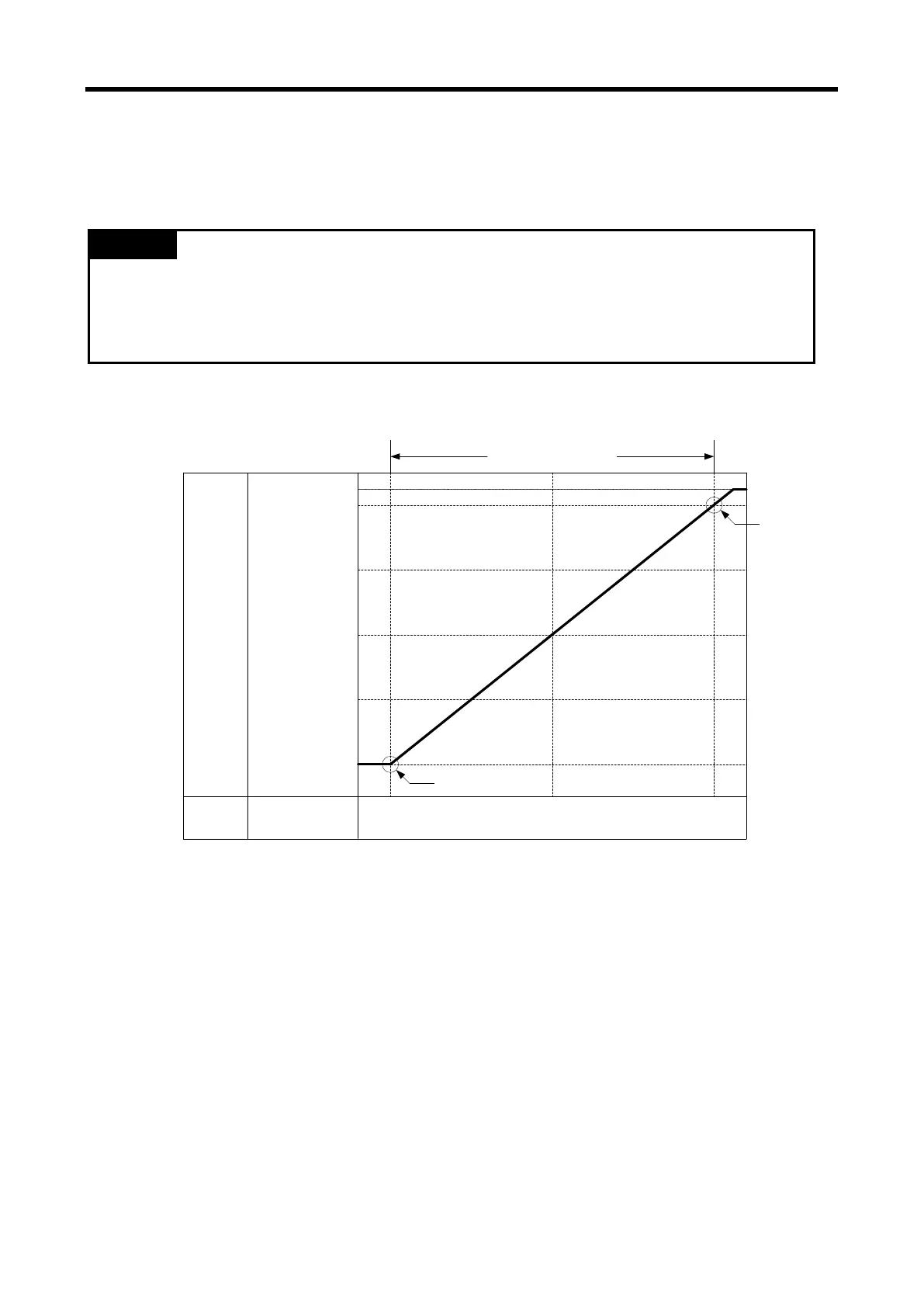

(6) Voltage input range (0 ~ 100
)
Digital
output
0
5000
10000
15000
20000
DC 0 ~ 100㎷ 100㎷
Analog
input
Analog input practical
range
Offset
Gain
50㎷0㎷
20200
Non-linear characteristics: regarding the relation of temperature(℃) and electromotive force(㎶) of a
thermocouple sensor, electromotive force is different by sections even though temperature changes
by a certain amount, which is called ‘non-linear characteristics.’ As seen in the above graph, it is
shown that the relation of temperature and electromotive force is a curve by temperature sections.
The module processes the non-linear characteristics table as linear.
Remark
5 - 10
