Chapter 5 Thermocouple Input Module (XBF-TC04S,TC04B)
5.2.5 Temperature display
(1) Temperature is displayed down to one decimal place.
In the XG5000, when monitoring the temperature conversion value, select “Signed decimal”

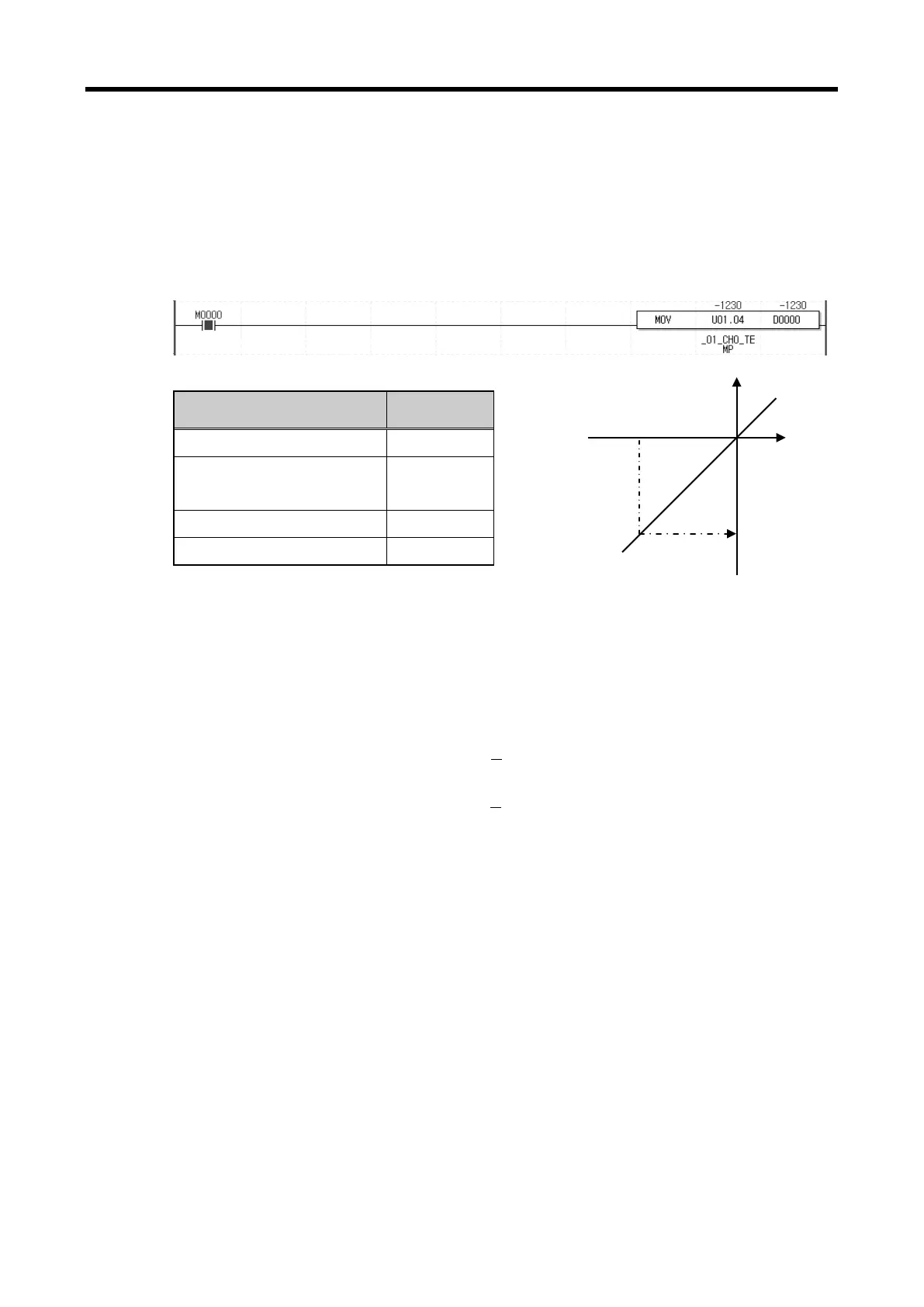

According to monitor indication type, temperature is monitored like figure below.
Ex.) if displaying -123.0℃ by converting, the value stored in the internal memory would
be -1230.
Monitor indication type
Indication
contents
Unsigned decimal
64306
Signed decimal
-1230
(-123.0℃)
Hexadecimal
hFB32
As instruction 64306
(2) Temperature display unit
(a) K, J, T type: 0.1℃
(b) R type: 0.5℃
(3) Temperature may be displayed by Celsius or Fahrenheit, depending on the settings.
Ex.) if displaying 100 ℃ in Fahrenheit, it would be 212 °F by using the following formula.
(a) From Celsius to Fahrenheit degree
32
5
9
+= CF
(b) From Fahrenheit to Celsius degree
( )
32
9
5
−= FC
Temperature
value
Temperature indication value
(Inner memory)
-123.0℃
-1230
