Chap. 6 Analog I/O Module (XBF-AH04A)

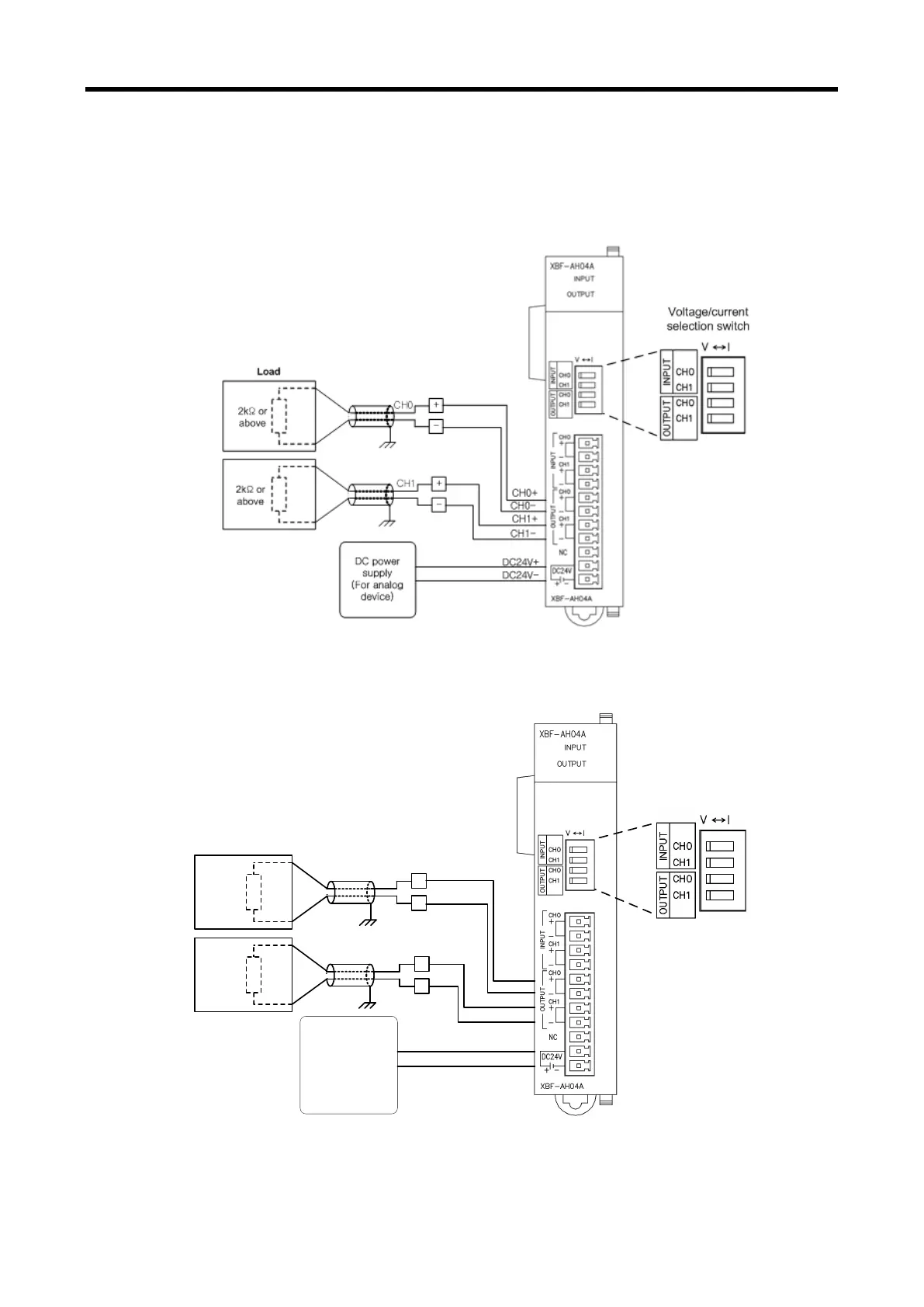

6.7.3 Exemplary Analog Output Wiring
(1) Exemplary analog voltage output wiring
Same wiring scheme is applied to voltage and current outputs, except that voltage/current
setting switch must be set up accordingly.
(2) Exemplary analog current output wiring
Same wiring scheme is applied to voltage and current outputs, except that voltage/current
setting switch must be set up accordingly.
+
-
CH0
+
-
CH1
DC power
(For analog
module)
CH0+
CH0-
CH1+
CH1-
DC24V+
DC24V-
Voltage/current
selection switch
510Ω or
less
Load
510Ω or
less
6 - 21
