XGB Analog edition manual

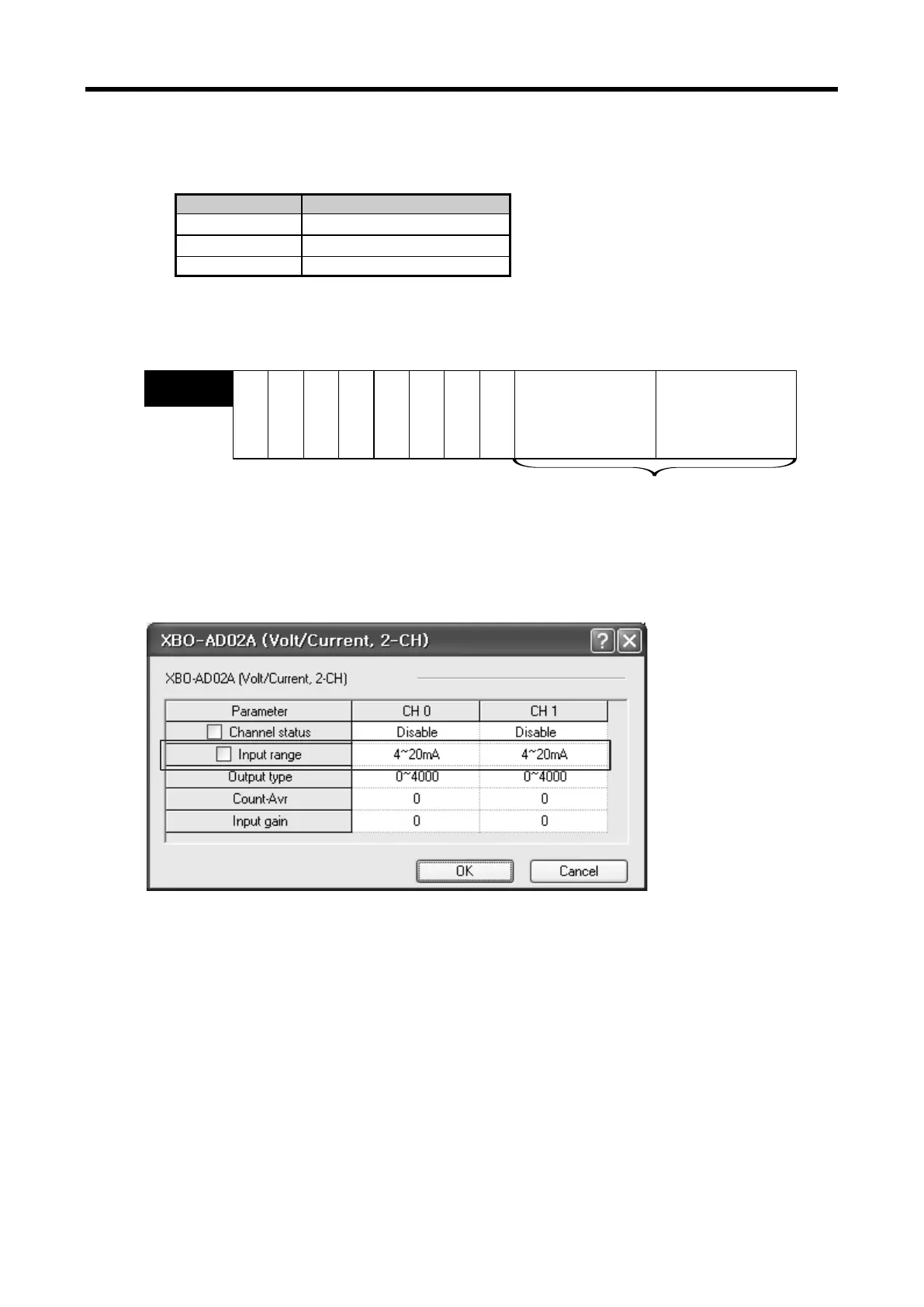

(2) Input range setting area (address 1)
(a) Set the type of input range with the following code
㎃
㎃
(b) If you set more than 3, 0 (4~20㎃) will be set forcibly
But, U0X.01.8~ U0X.01.9 (Setup error flag) will be ON.
(c) When using PUT instruction, address is as follows.
bit15 bit14 bit13 bit12
bit11 bit10 bit9 bit8 bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
Input CH 0
1
Input range (4bit per channel)
0 : 4 ~ 20
1 : 0 ~ 20
2 : 0 ~ 10 V
Input CH 1---- ----
(d) The values set in bit 8~15 are ignored.
(e)This area is same as setting in “Input range” of I/O parameter
8 - 30
