Chapter 8 Analog Input Option Board (XBO-AD02A)

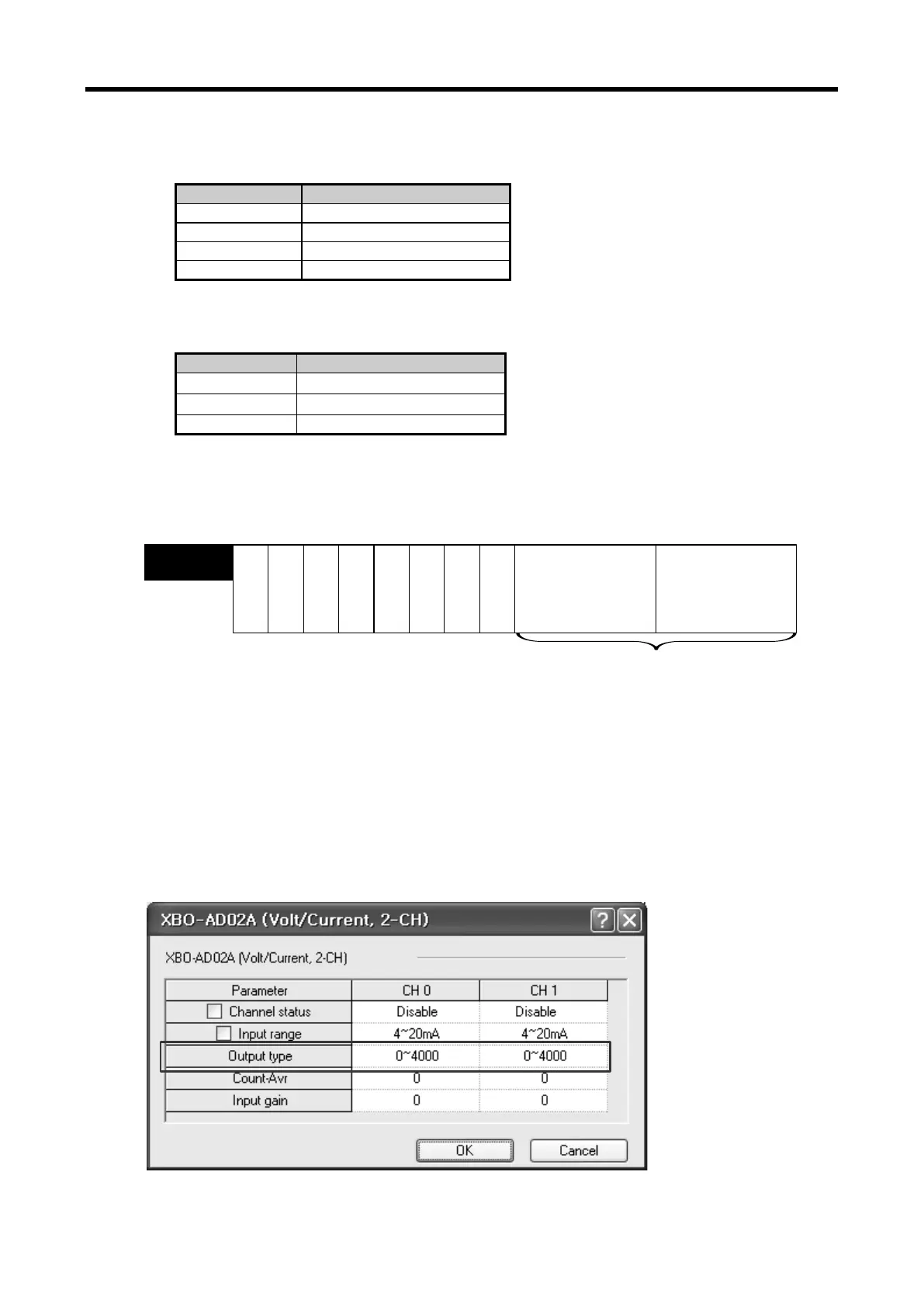

(3) Output data type setting area (address 2)
(a) Set the type of output data type with the following code
Bit (HEX)
Output data type
0000 (0)
0~4000
0001 (1)
-2000~2000
0010 (2)
Precise value
0011 (3)
0~1000
In case of precise value, output data type is designated as the following value according to each
input range type
Input range
Precise value
4 ~ 20
㎃
400 ~ 2000
0 ~ 20
㎃
0 ~ 2000
0 ~ 10 V
0 ~ 1000
(b) If you set more than 4, 0 (0~4000) will be set forcibly.
But, U0X.01.8~ U0X.01.9 (Setup error flag) will be ON.
(c) When using PUT instruction, address is as follows
Bit15
Bit14
Bit13
Bit12
Bit11
Bit10
Bit9
Bit8
Bit7
Bit6
Bit5
Bit4
Bit3
Bit2
Bit1
Bit0
Input CH 0
2
Output type (4bit per channel)
0 : 0 ~ 4000
1 : -2000 ~ 2000
2 : precise value
3 : 0 ~ 1000
Input CH 1
- In case of precise value
4 ~ 20 : 400 ~ 2000
0 ~ 20 : 0 ~ 2000
0 ~ 10 V: 0 ~ 1000
-
-
-
-
-
-
-
-
(d) The values set in bit 8~15 are ignored.
(e)This area is same as setting in “Output type” of I/O parameter
