(4) Count average value setting area (address 3~4)
(a) Set count average value with 0 or value of 2~6400
(b) If you set the count average value as 0, corresponding channel will not perform averaging
process and output sampled analog input value
(c) If you set 1 or more than 64001, 0 (Disable averaging) will be set forcibly.
But, U0X.01.8~ U0X.01.9 (Setup error flag) will be ON.
(d) When using PUT instruction, address is as follows
bit15 bit14 bit13 bit12 bit11 bit10
bit9
bit8
bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
Input CH0 count average value (0 or 2 ~ 64000 [times)
3
Input CH1 count average value (0 or 2 ~ 64000 [times)
4

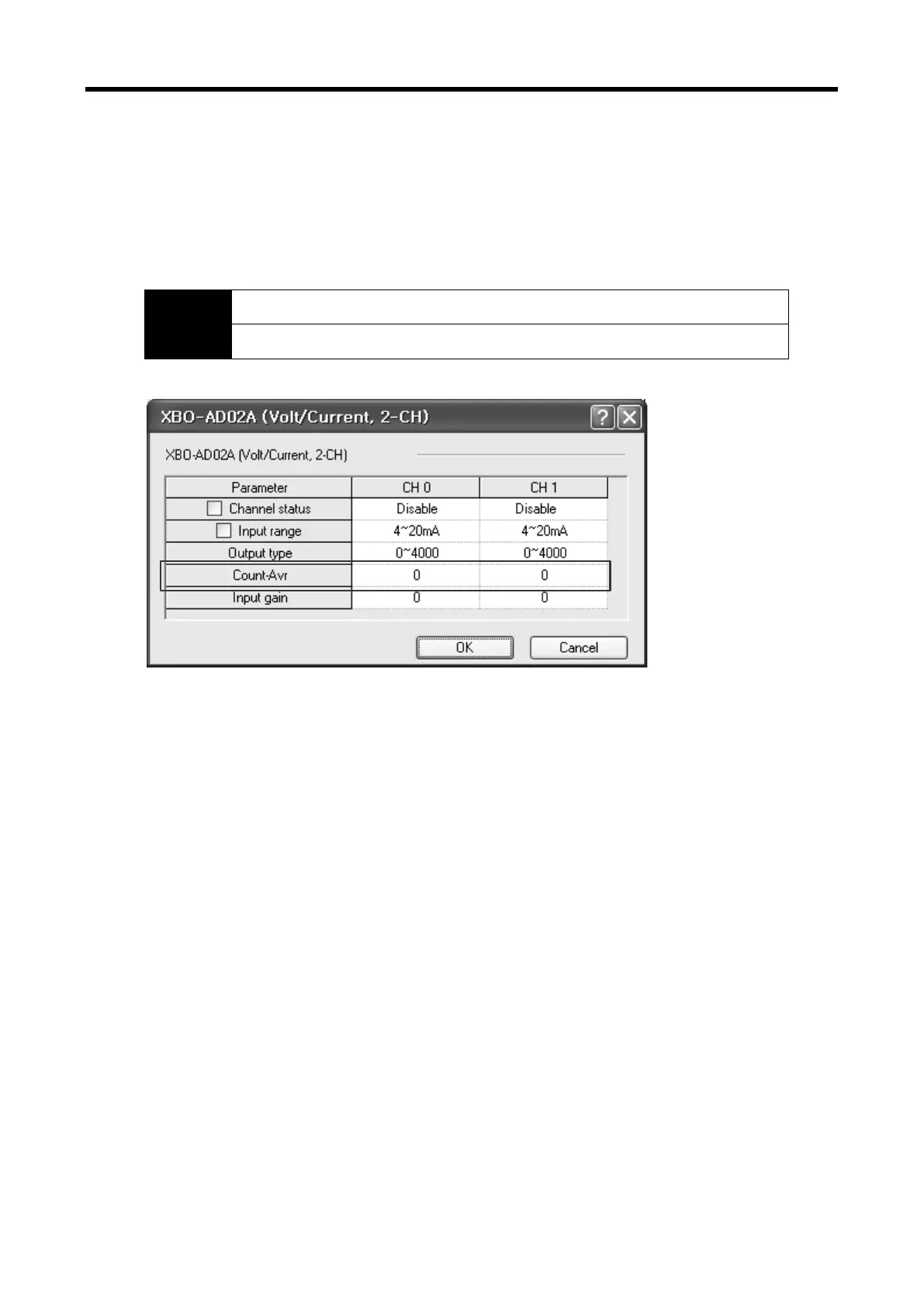

(e) This area is same as setting in “Count-Avr” of I/O parameter
8 - 32
