Chapter 8 Analog Input Option Board (XBO-AD02A)

(5) Input gain weighting setting area (address 9~10)
(a) Set input gain weightingwith value of -40~40
(b) If you set this as 0 (default value), 4000 will apply for gain value
(c)For example, if you set this as -10, 4010 (=4000-(-10)) will apply for gain value
(d) When using PUT instruction, address is as follows
bit15 bit14 bit13 bit12 bit11 bit10 bit9 bit8 bit7
bit6
bit5 bit4 bit3 bit2 bit1 bit0
Input CH0 gain (-40 ~ 40)
9
Input CH1 gain (-40 ~ 40)


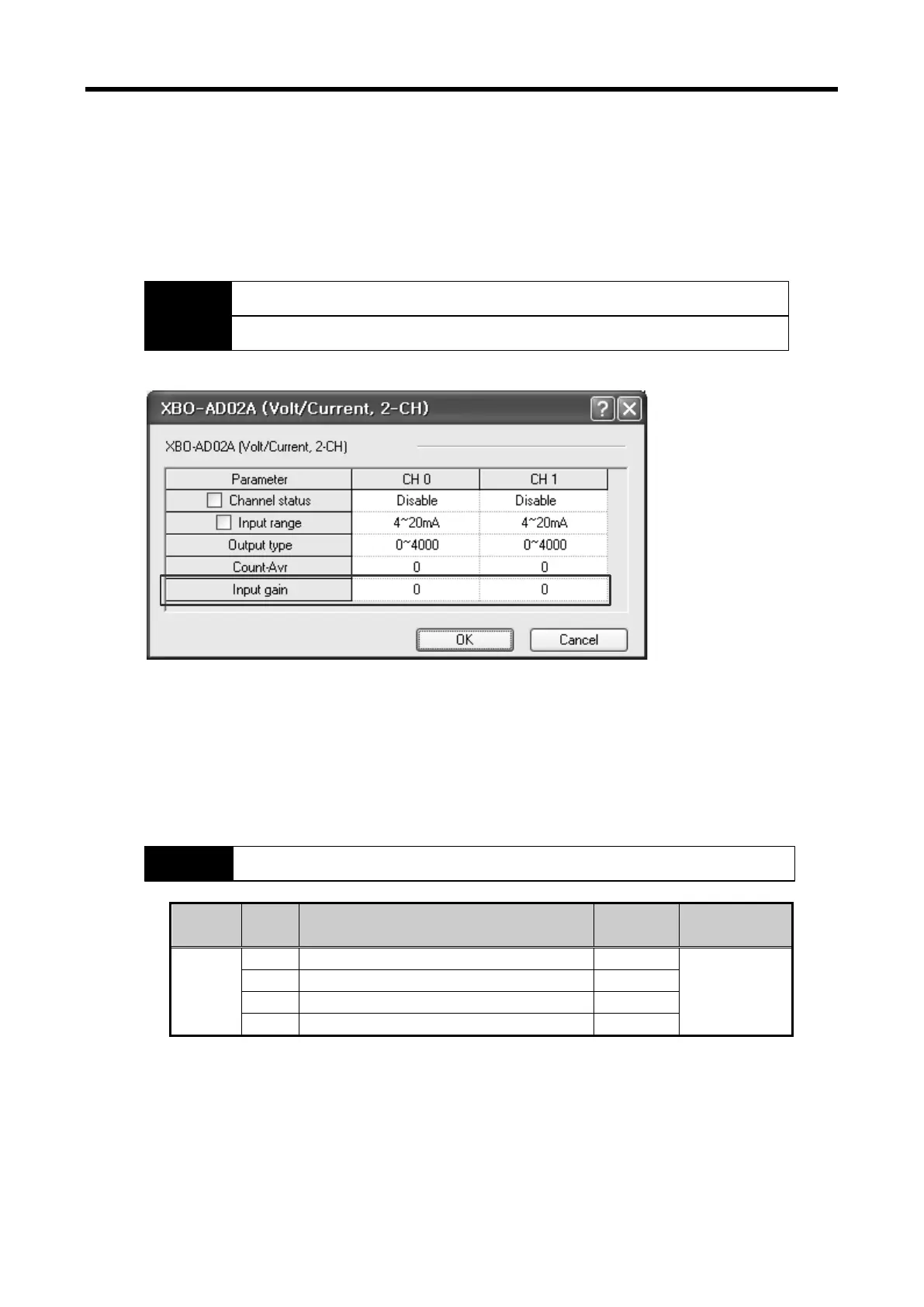

(e) This area is same as setting in “Input gain” of I/O parameter
(6) Setup error information output area (address 13)
(a) Saves error code detected when setting (setting by program)
(b) Setting error is canceled when value is reset to make it in the valid range
(c) When U0X.01.8~ U0X.01.9 (setting error flat) is on, check that area and fix the corresponding
setting to cancel the error
(d) When using GET instruction, address is as follows
bit15
bit14
bit13
bit12
bit11
bit10
bit9
bit8
bit7
bit6
bit5
bit4
bit3
bit2
bit1
bit0
Setting error information
13
Type
Error
code
Description Priority Remark
Setting
error
10# Input CH range setting error 1
#: CH number
Input CH 0,1
20#
Input CH data type setting error
2
30#
Input CH count average value setting error
3
40#
Input CH gain weighting setting error
4
(e) When more than two errors occur simultaneously, it saves error code having higher priority.
8 - 33
