LSIS XBF-AH04A

XGB Analog edition manual

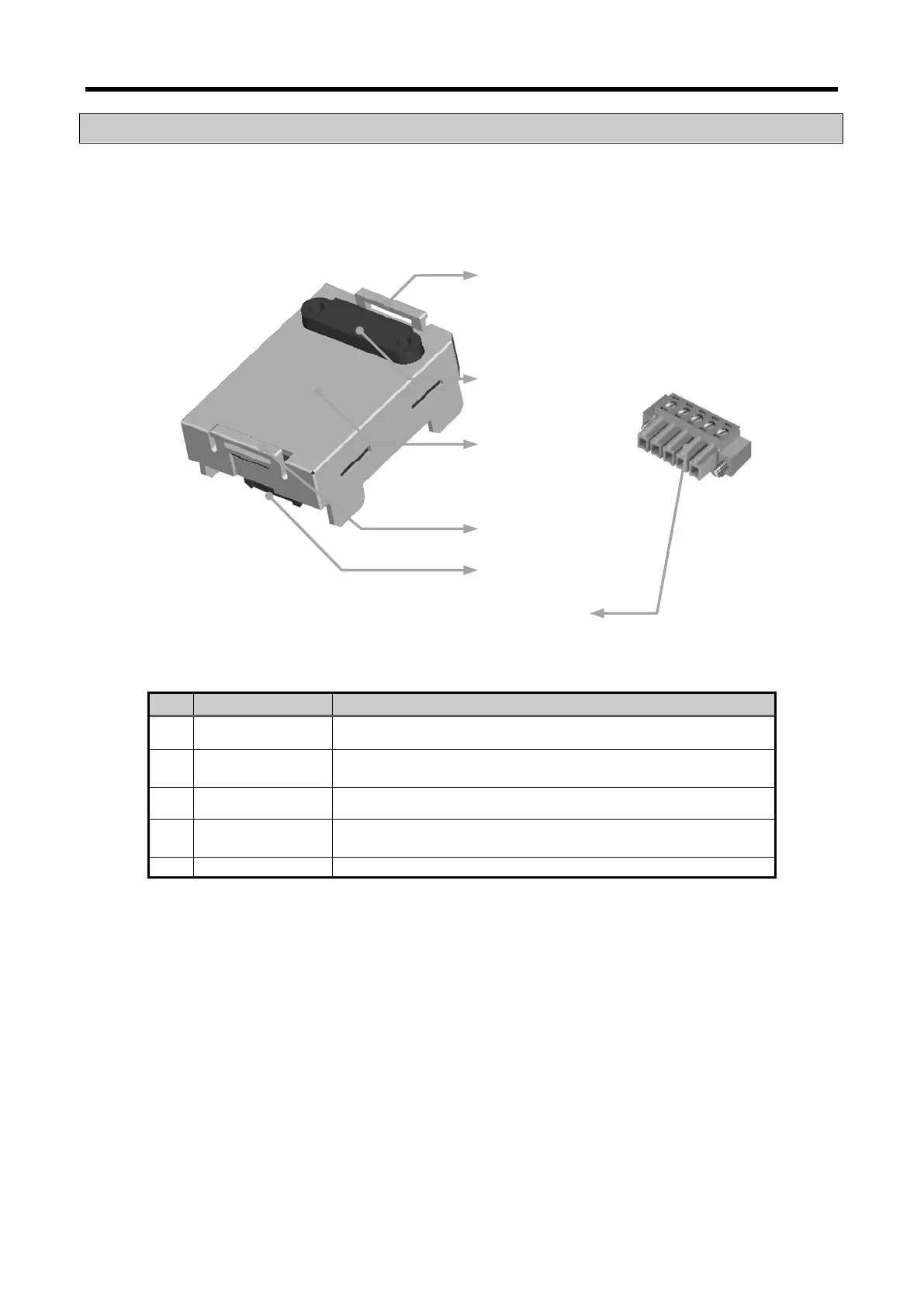

9.3 Designations and Functions
Here describes designation and functions.









35.0
49.0
10.3
No.
Name
Description
 Hook for fixation  Hook for fixing the option board to main unit
 Terminal block
 Wiring terminal block to connect with external device
(Analog input)
 Cover Option board cover

Connector for option
board

Connection connector for connecting the option board to the main
unit

Input connector

Wiring connector for connecting with the external device
9 - 4
