Chapter 9 Analog Output Option Board (XBO-DA02A)

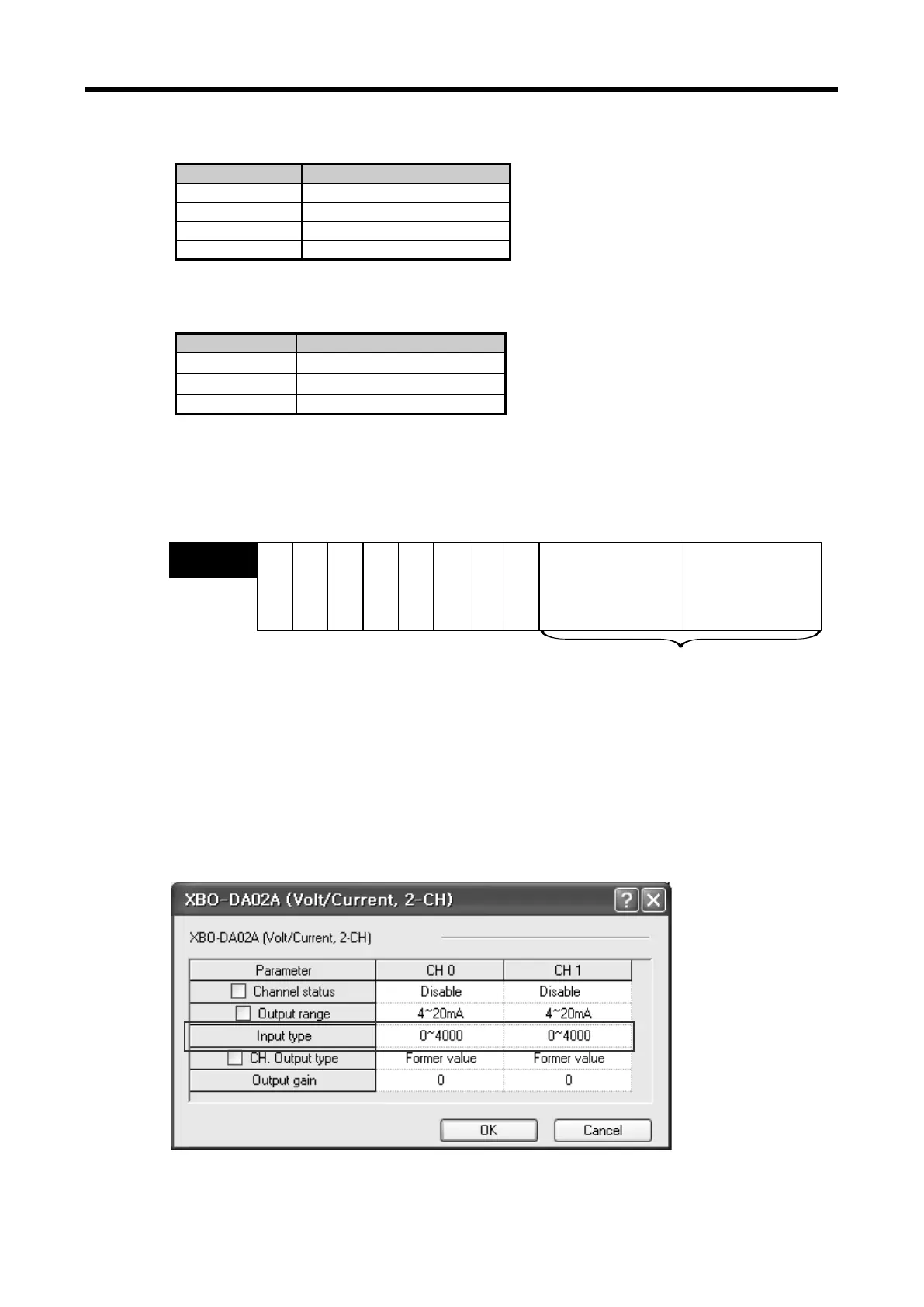

(3) Input data type setting area (address 2)
(a) Set the type of input data type with the following code
Bit (HEX)
Input data type
0000 (0)
0~4000
0001 (1)
-2000~2000
0010 (2)
Precise value
0011 (3)
0~1000
In case of precise value, input data type is designated as the following value according to each
output range type
Output range
Precise value
4 ~ 20
㎃
400 ~ 2000
0 ~ 20
㎃
0 ~ 2000
0 ~ 10 V
0 ~ 1000
(b) If you set more than 4, 0 (0~4000) will be set forcibly.
But, U0X.01.A~ U0X.01.B (Setup error flag) will be ON.
(c) When using PUT instruction, address is as follows
Bit15
Bit14
Bit13 Bit12 Bit11
Bit10
Bit9 Bit8 Bit7
Bit6
Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Output CH 0
2
Input data type (4bit per channel)
0 : 0 ~ 4000
1 : -2000 ~ 2000
2 : precise value
3 : 0 ~ 1000
Output CH 1
- In case of precise value
4 ~ 20 : 400 ~ 2000
0 ~ 20 : 0 ~ 2000
0 ~ 10 V: 0 ~ 1000
-
--
- -
---
(d) The values set in bit 8~15 are ignored.
(e)This area is same as setting in “Input type” of I/O parameter
