Chapter 10 Analog I/O Option Board (XBO-AH02A)

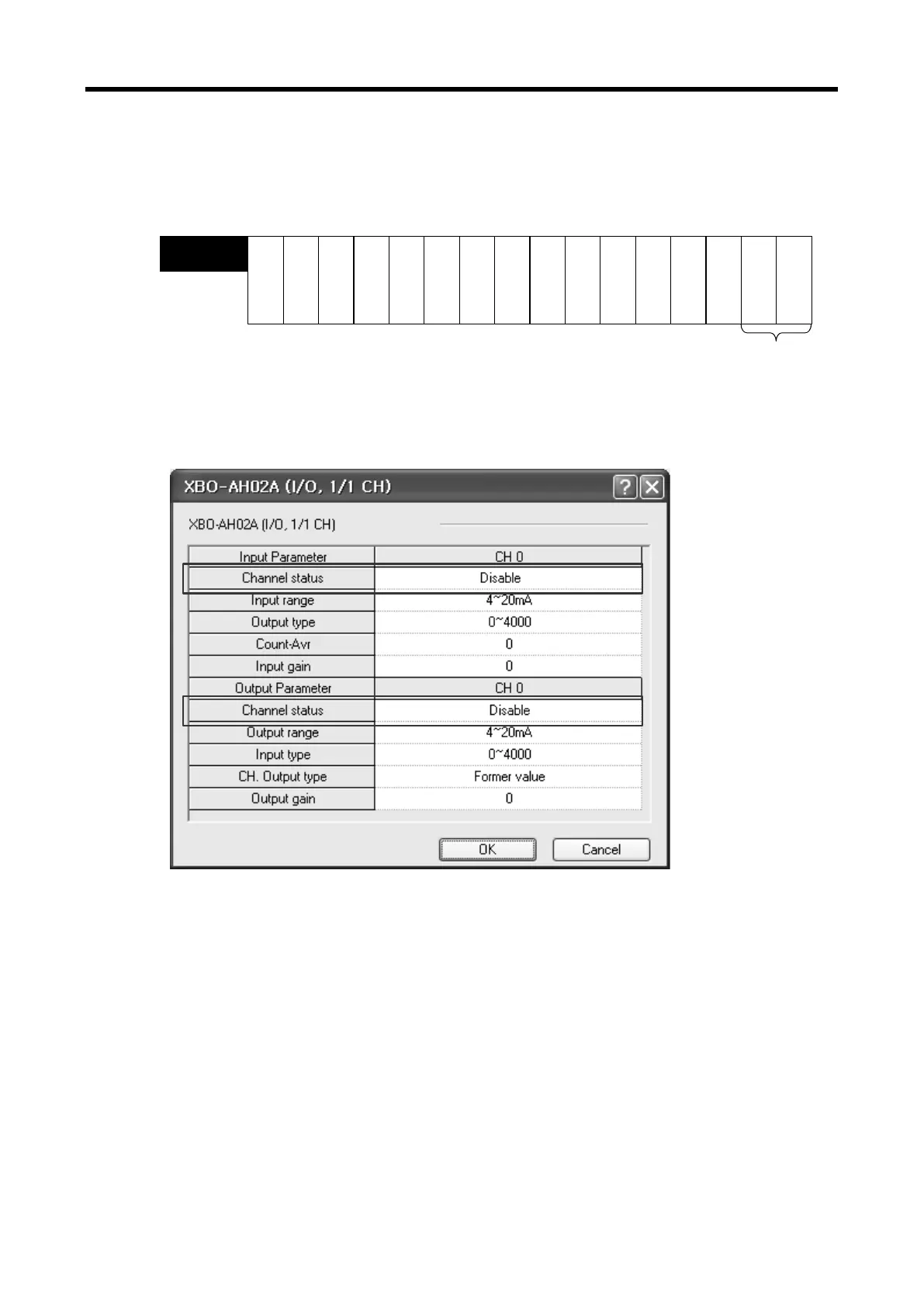

(1) Operating Channel Setting (address 0)
(a) You can set “Enable/Disable” of analog I/O option board per each channel
(b) Disable the unused channels to reduce the conversion period.
(c) Default value is “Disable” for all channels
(d) When using PUT instruction, address is as follows.
bit15 bit14 bit13 bit12 bit11 bit10
bit9
bit8
bit7
bit6
bit5 bit4 bit3 bit2 bit1 bit0
- -
O
u
t
p
u
t
C
H
0
I
n
p
u
t
C
H
0
--
-
-
-
-
Enable CH
Bit On (1): enable
Bit Off (0): disable
-
-
-
- -
-
(e) The values set in bit 2~15 are ignored.
(f)This area is same as setting in “Channel status” of I/O parameter
10 - 35
