(6) I/O gain weighting setting area (address 9~11)
(a) Set input gain weightingwith value of -40~40
(b) If you set this as 0 (default value),
4000 will apply for input gain value
4000 will apply for output gain value
(c)For example, if you set this as -10, 4010 (=4000-(-10)) will apply for gain value
(d) When using PUT instruction, address is as follows
bit15 bit14 bit13 bit12 bit11 bit10
bit9
bit8
bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
Input CH0 gain (-40 ~ 40)
9
Output CH0 gain (-40 ~ 40)

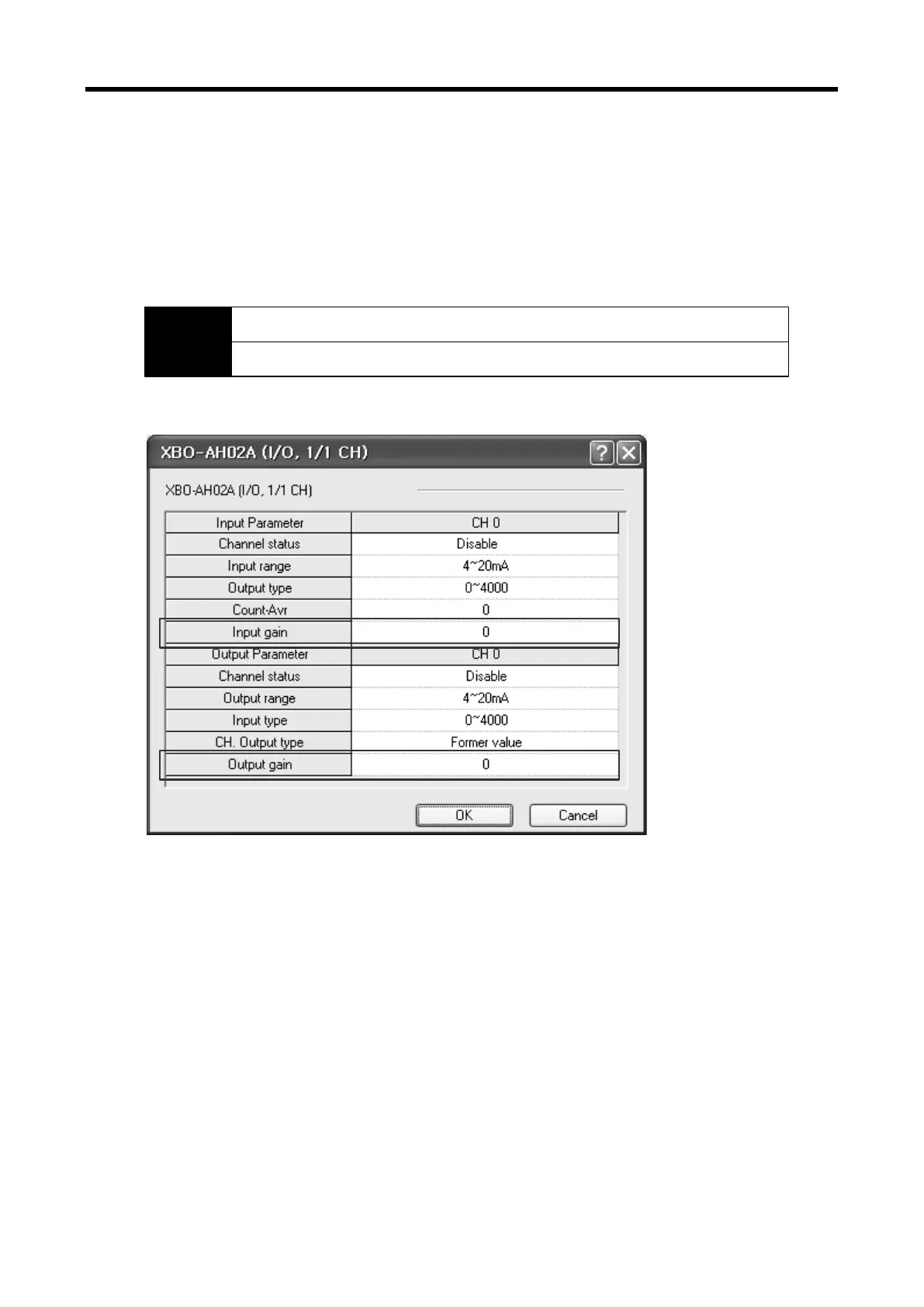

(e) This area is same as setting in “I/O gain” of I/O parameter
10 - 40
