Chapter 13 Analog Input Module (XBF-AD04C)
(4) Start Monitoring: Click [Start Monitoring] to show digital input data of current operated
channel. When the channel is operating you can see the painting through monitor.

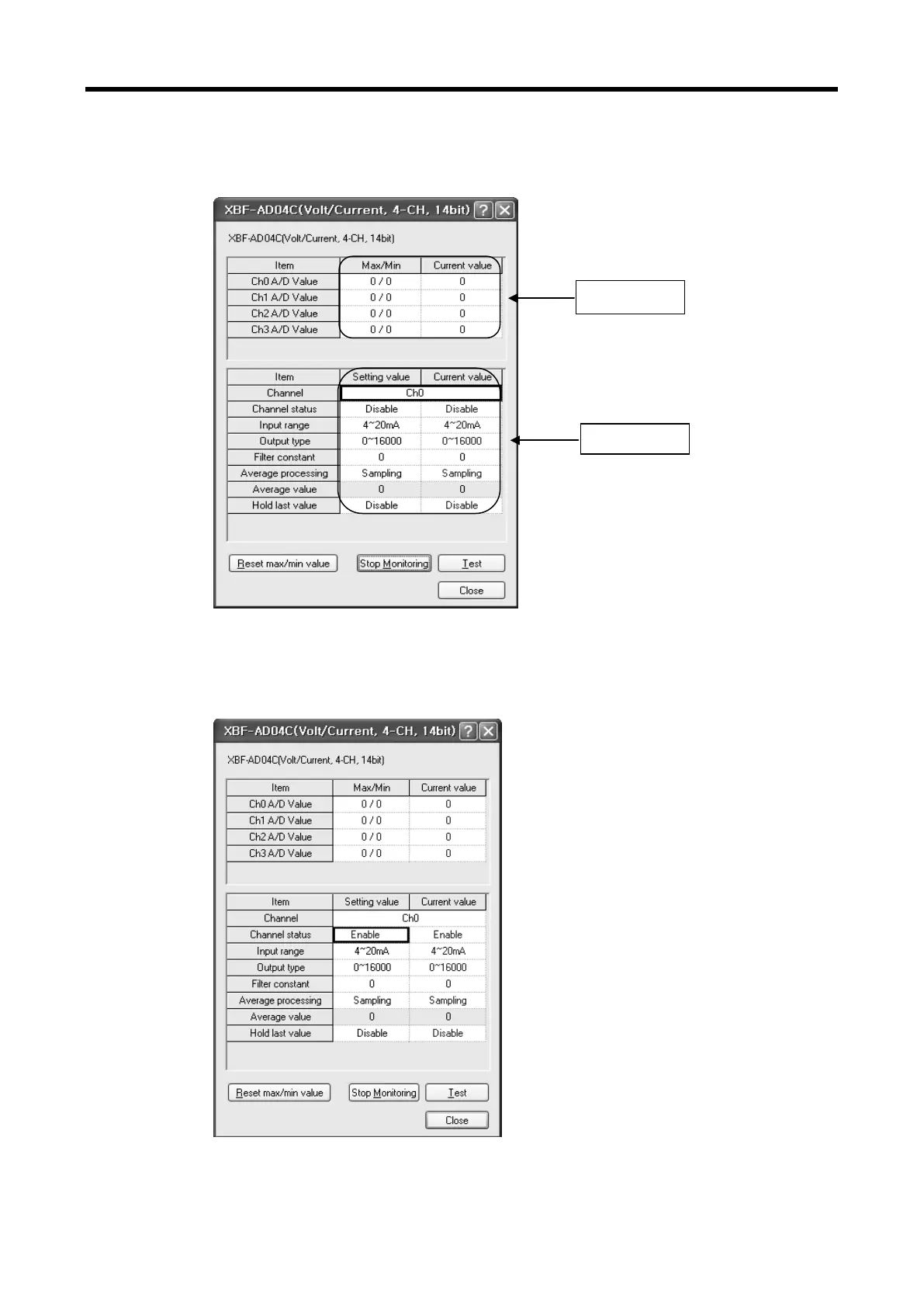

Execution screen of [Start Monitoring]
(5) Test: [Test] is a function to change the parameter of the analog input module which is
presently set. In case of clicking the setting value in the bottom of the screen, you can
change the parameter. [Test] is able to set only if operation status of XGB's basic unit is
stop.
Execution screen of [Test]
