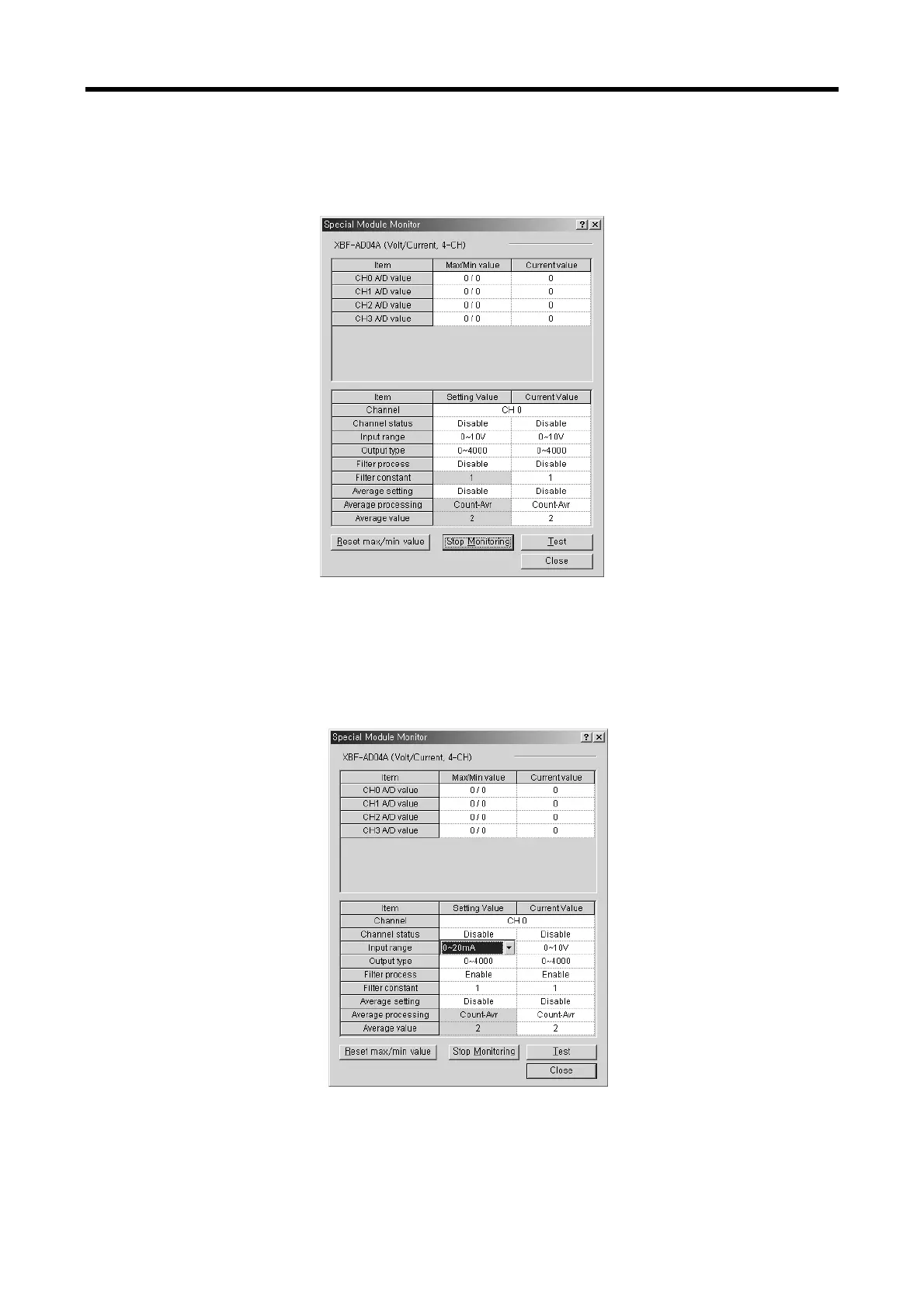

(d) [Start Monitoring]: Click [Start Monitoring] to display A/D converted value of the presently
operated channel. Below screen is the monitoring screen displayed when the whole channels
are in Stop status. In the present value field at the screen bottom, presently specified
parameters of A/D conversion module are displayed
.
Execution screen of [Start Monitoring]
(e) [Test]: [Test] is used to change the presently specified parameters of A/D conversion module.
Click the setting value at the bottom field of the screen to change parameters. Below screen
will be displayed after [Test] is executed with channels 0’s input voltage range changed to -
0~20 mA in the state of input not wired.
Execution screen of [Test]
