Chapter 2 Analog Input Module (XBF-AD04A)
2 - 23
(f) [Reset max/min value]: The max/min value field at the upper screen shows the max. value
and the min. value of A/D converted value. Click [Reset max/min value] to initialize the
max./min. value. Below screen is after [Reset max/min value] button is clicked in the screen
of Special Module Monitor, where channel 0’s A/D converted value can be checked as reset.

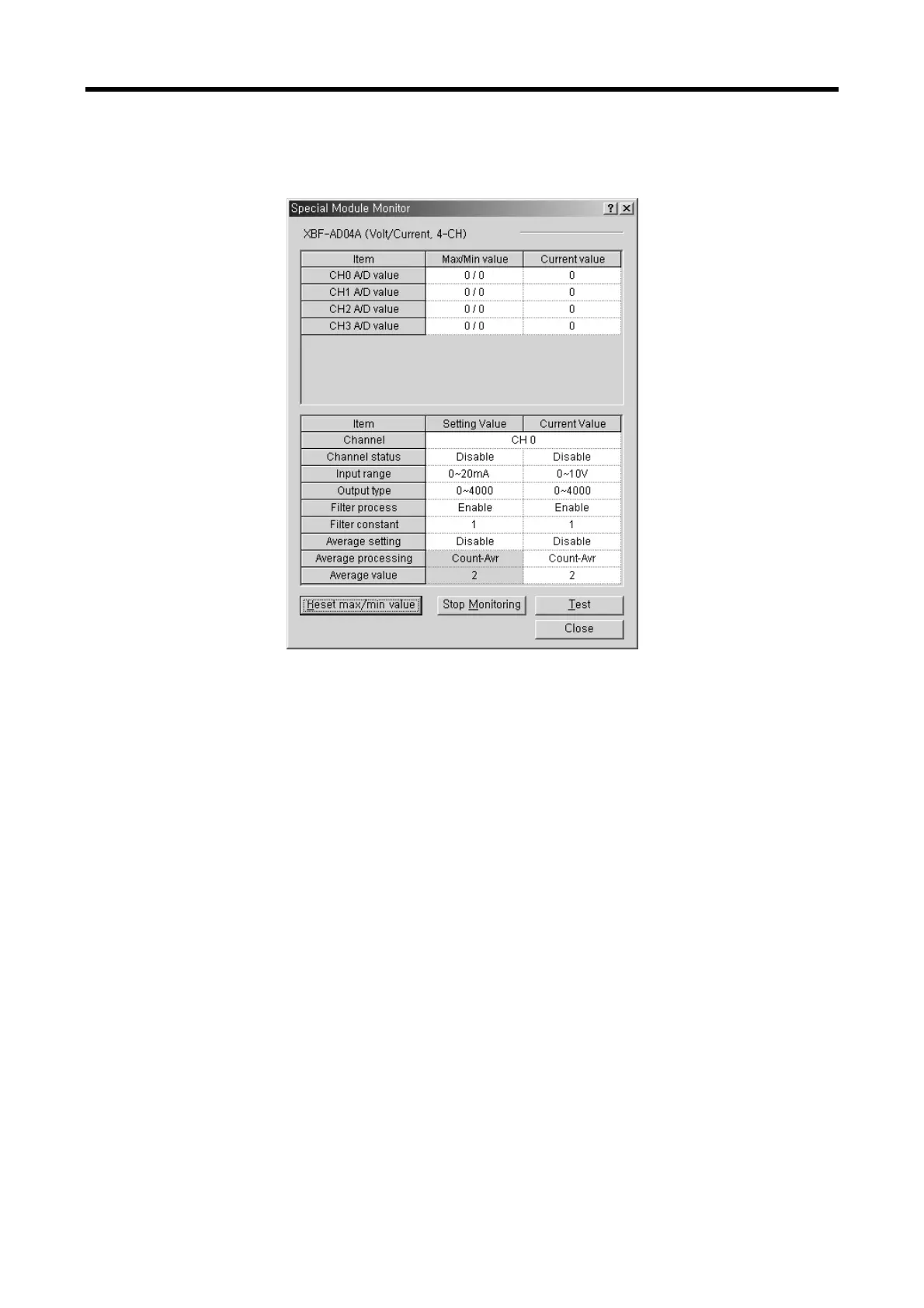

Execution screen of [Reset max/min value]
.
(g) [Close]: [Close] is used to escape from the monitoring/test screen. When the monitoring/test
screen is closed, the max. value, the min. value and the present value will not be saved any
more.
