Lucent Technologies Lineage 2000 ECS-12U User Manual

Lucent Technologies Lineage
®
2000 ECS-12U Controller J85501E-2
Issue 3 July 1998 Installation and Setup 4 - 29

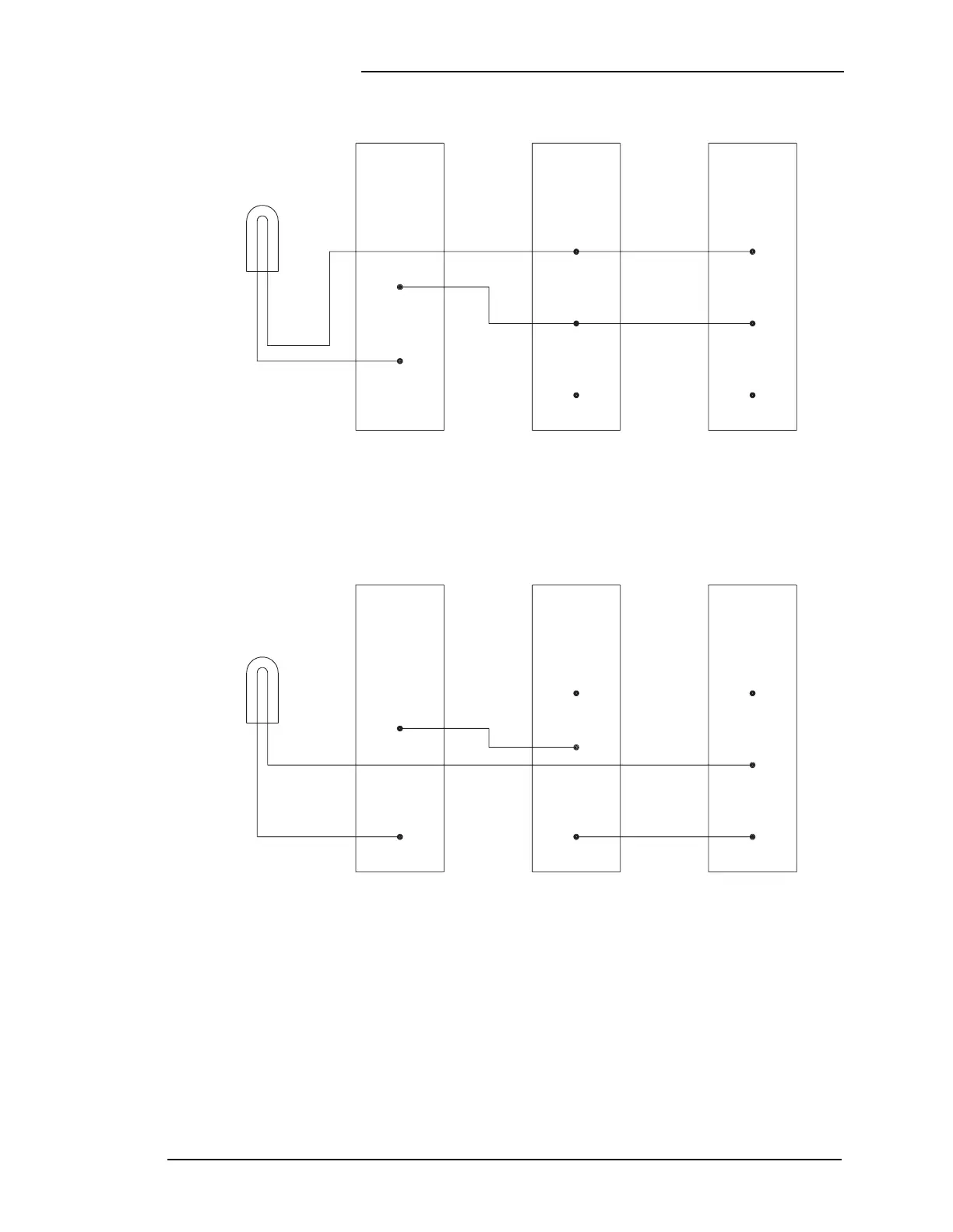

Figure 4-15: Typical Alarm Wiring Examples
Office
Alarm
System
Office
Alarm
System
TB101
TB101
TB103
TB104
TB102
TB102
ACFEC
LVC
ACFER
LVR
ACFEO
LVO
PMNVO
PMJVO
PMNVR
PMJVR
PMNVC
PMJVC
DG
DG
ABS
ABS
(Lamp Lights
on Alarm)
(Lamp Extinguishes
on Alarm)
(A) AC Fail Paralleled with Power Minor Visual Alarm
for Closure-on-Alarm Type System
(B) Low-Voltage Disconnect Open Alarm in Series with Power Major
Visual Alarm for Open-on-Alarm Type System
8
8
1
1
10
7
11
8
12
9
9
12
8
11
7
10
