User Guide
14
© Copyright 2011 Luxul. All rights reserved. Trademarks & Registered Trademarks are property of respective holders.
5.3 Port Settings
In this screen you can set the operating mode of each port. Six working modes
are available for any port: 10 Mbps half-duplex, 10 Mbps full-duplex, 100 Mbps
half-duplex, 100 Mbps full-duplex, 1000 Mbps full-duplex and auto negotiation.
By default, the auto negotiation mode is enabled for all ports. In this mode, upon
switch power up, each port automatically communicates and negotiates with its
connected device, to determine the optimal operating mode. For other operating
modes, manual setting is required and the settings should match the operating
mode of the connected device; otherwise communication may fail. Port settings
also affect the port mirroring and Trunk group functions.
5.3.1 Port
5.3.2 Rate Limit
5.3.3 Storm Control
5.3.4 Statistics
5.3.1 Port

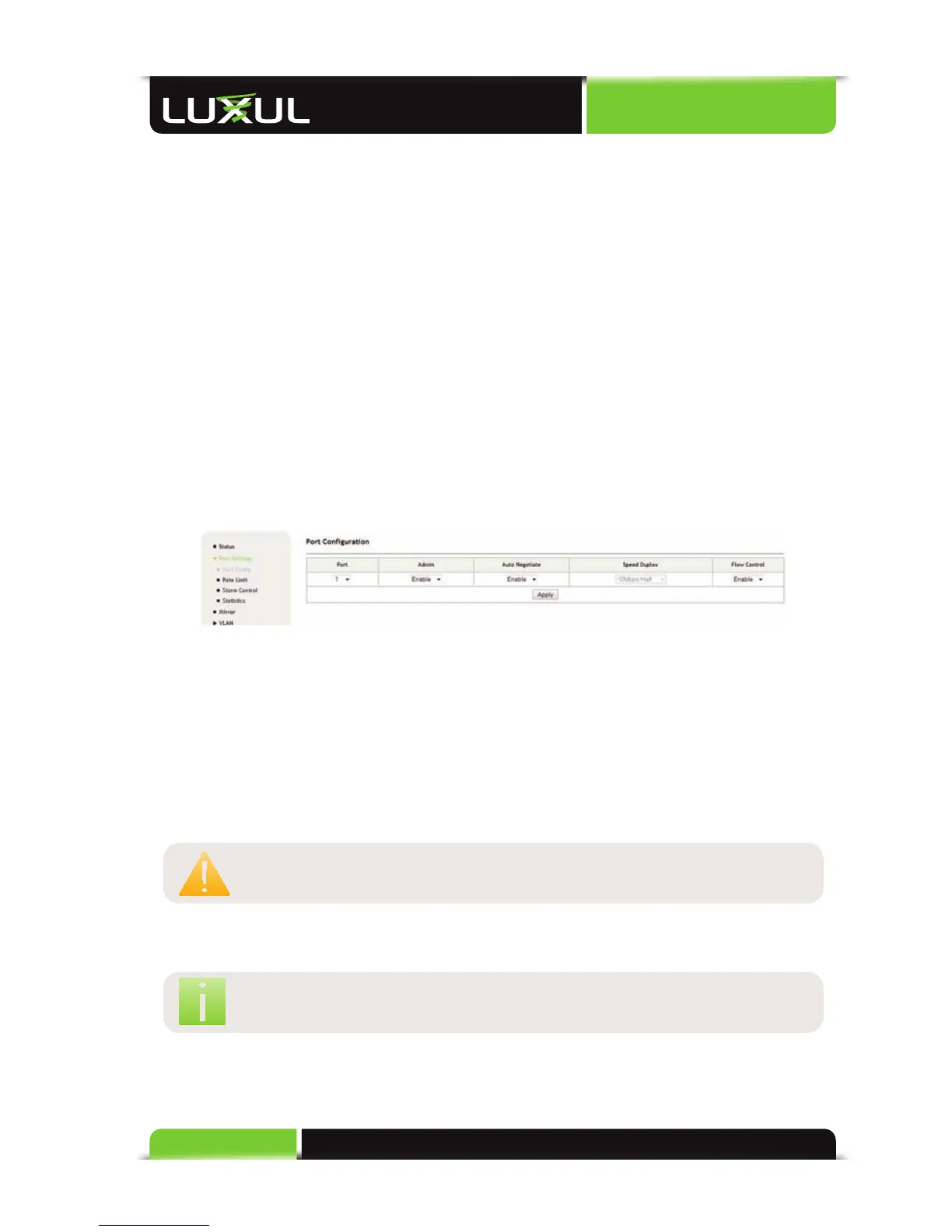

Port Confi guration: Basic port confi guration options for the XMS-1008P include
port enable/disable, operating mode and fl ow control. The following describes the
confi guration functionality:
Port: Displays the corresponding port number for viewing or changing settings.
All 8 10/100/1000 Mbps Ethernet ports are available for confi guration.
Admin: Either enables or disables the corresponding port. If “Disable” is selected,
the port is no longer operational.
CAUTION: Do not disable ports unless necessary.
Auto Negotiate: If “Disable” is selected, you must manually specify the speed
and duplex the port will use.
NOTE: In order to set or change “Speed Duplex” settings, you must
“Disable” the auto-negotiation function.
