Weight
Item: 6 lbs
Packaging: 8 lbs
1.4 Package Contents
XMS-1008P Gigabit Ethernet Smart POE Switch
Power cable
Two L-shape brackets and eight matched screws
Four rubber footpads
Quick Install Guide
If any of the listed items are missing or damaged, please contact the reseller from
whom you purchased for return/replacement.
2: HARDWARE DESCRIPTION
2.1 Front Panel
The front panel of the XMS-1008P switch includes 8 1000Mbps RJ45 and 2 SFP ex-
pansion ports on the right side and LED indicators on the left side. Each 1000Mbps
port has one Link/Activity LED, one 1000Mbps LED and one POE LED, there are also
two SFP LEDs, one Power LED, one System LED and a reset button.
XMS-1008P
1
3
5
7
2
4
6
8
8-Port Gigabit Ethernet Smart POE Switch
SFP1
SFP2
POWER
SYS
RESET
LINK
ACT
POE
SPEED
1 2 3 4 5 6 7 8
SPEED: 10/100Mbps 1000Mbps

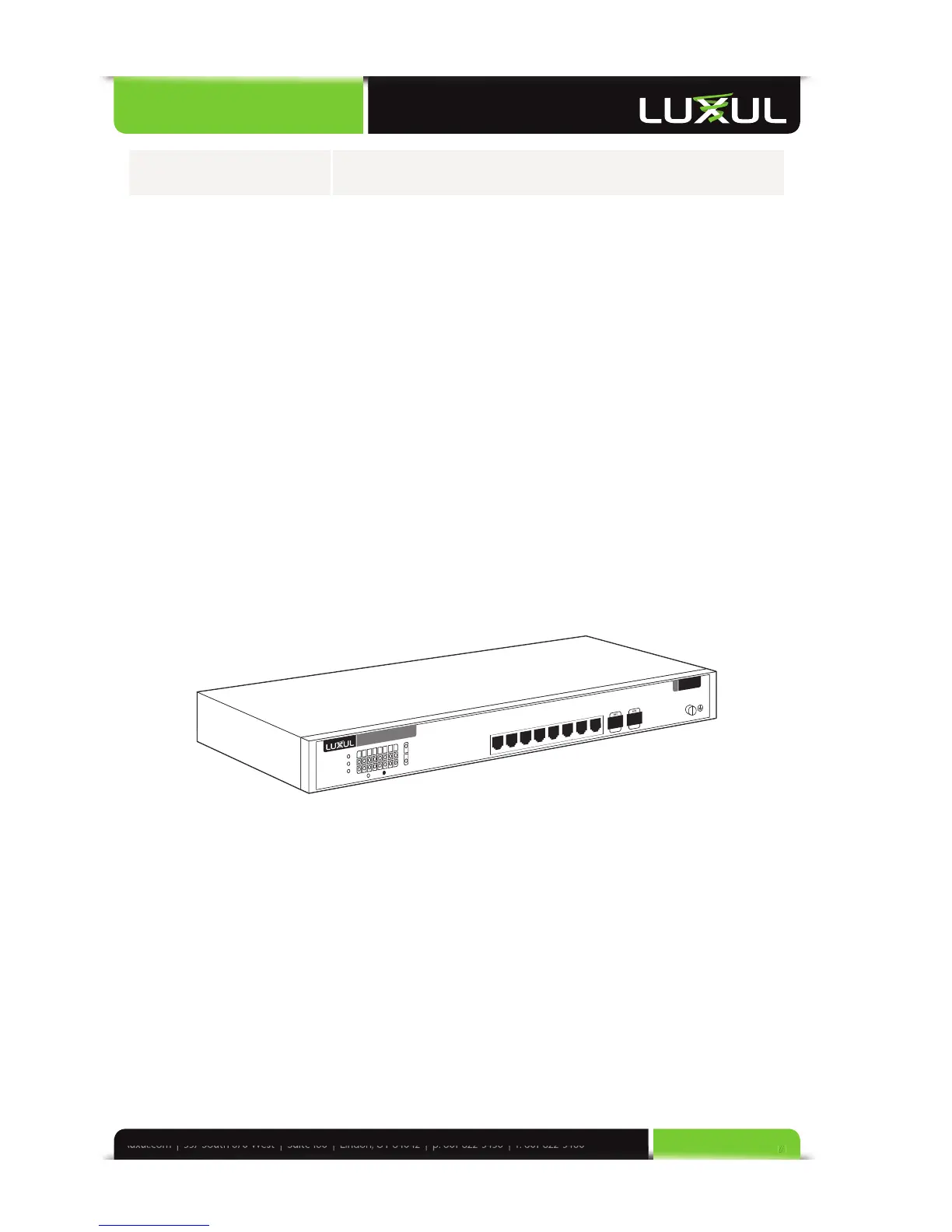

XMS-1008P Front Panel
Status indicators
Each port has one Link/Activity LED, one 1000Mbps LED and one POE LED. In
addition, there are two SFP LEDs, one Power LED, one System LED, as well as a Reset
button to reboot the device or restore factory default settings. The green LED
indicators show the working status of the switch. The following table describes the
LED functionality:
