Speed Duplex: Select 10 Mbps half-duplex, 10 Mbps full-duplex, 100 Mbps half-
duplex, 100 Mbps full-duplex or 1000 Mbps full-duplex mode for the port.
Flow Control: Support for IEEE802.3x full-duplex fl ow control and half-duplex
backpressure fl ow control disabled by default (if “Enabled” the XMS-1008P will
automatically adjust the fl ow control mode depending on the duplex mode).

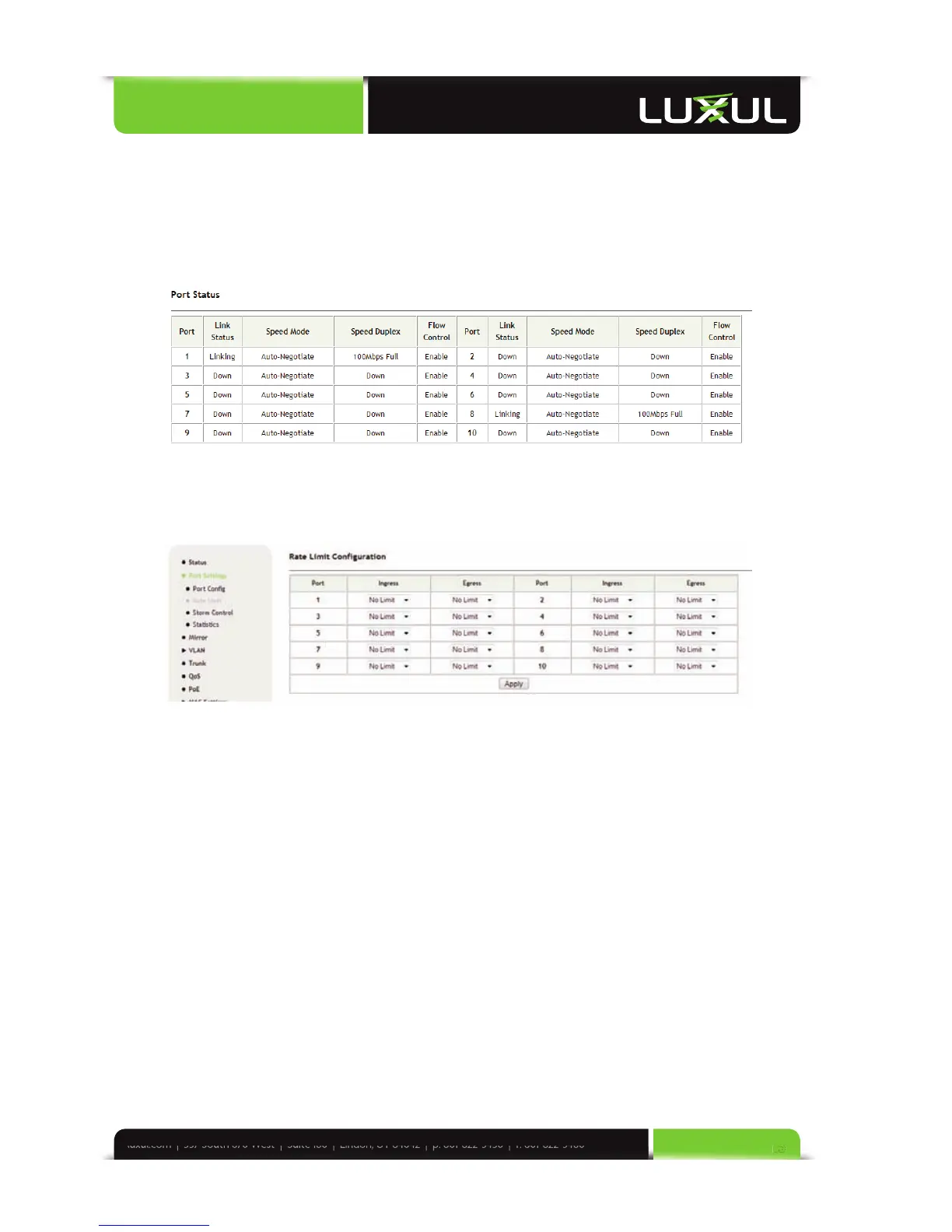

Port Status: Lists the current settings of all ports, as shown above.
5.3.2 Rate Limit
Rate Limit Confi guration: The XMS-1008P allows the user to set limits on how
much bandwidth is allocated to each port. This feature prevents a devices or user
from consuming excessive bandwidth and can be used to guarantee good quality
bandwidth to all client devices connected to the switch.
Port: Displays the corresponding port number for viewing or changing settings.
All 8 10/100/1000 Mbps Ethernet ports are available for confi guration.
Downlink/Uplink: Control the receive/transmit data rates by port. Available
rates are: 128 Kbps; 256 Kbps; 384 Kbps; 512 Kbps; 640 Kbps; 768 Kbps; 896 Kbps;
1008 Kbps; 1152 Kbps; 1280 Kbps; 1408 Kbps; 1536 Kbps; 1664 Kbps; 1792 Kbps; 1920
Kbps; 2048 Kbps; 2176 Kbps; 2304 Kbps; 832 Kbps; 2560 Kbps; 2688 Kbps; 2816
Kbps; 2944 Kbps; 3072 Kbps; 3200 Kbps; 3328 Kbps; 3456 Kbps; 3584 Kbps; 3712
Kbps; 3840 Kbps; 3968 Kbps; No Limit.
To Next Page
