79
User Guide
© 2014 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners
The following entries are displayed on this screen:
Protocol Group Confi g
Protocol:
Select the desired Protocol Template.
VLAN ID:
Enter the ID number of the Protocol VLAN. This VLAN must be
one of the 802.1Q VLANs the Ingress Port belongs too.
Protocol Group Member
Select the desired Port(s) for Protocol VLAN Group.
CAUTION: Protocol Group settings will be restored to defaults if the
Switch is restarted and you have not selected Save Confi g
from the main menu and saved your running confi guration to
non-volatile memory.
6.3.3 Protocol Template
The Protocol Template must be created before confi guring the corresponding Protocol
VLAN. By default the Switch has the predefi ned templates for the; IP, ARP, RARP, IPX and
AT Protocols. You can add more Protocol Templates via this page.
Choose the menu VLAN>>Protocol VLAN>>Protocol Template to load the
following page.

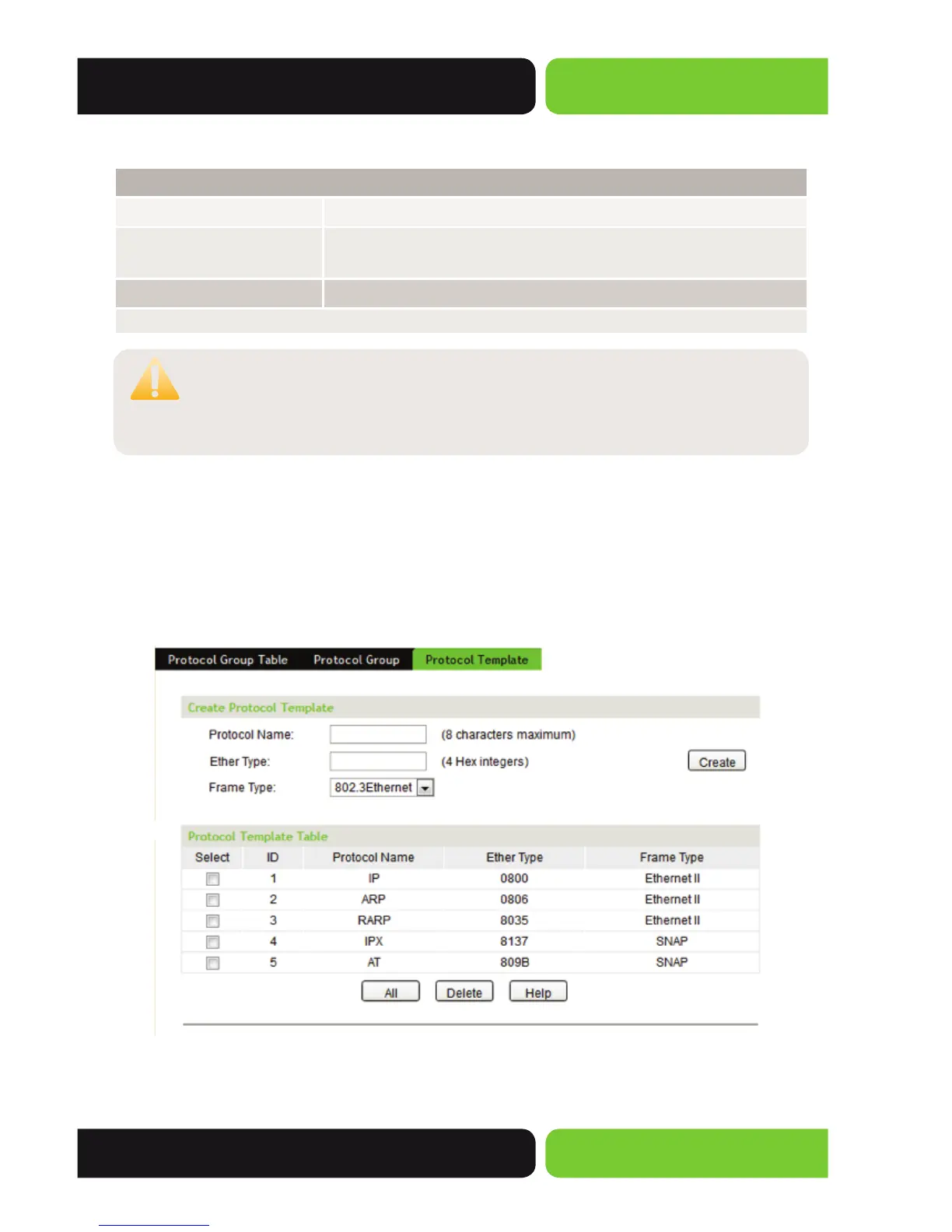

Figure 6-14 Create and View Protocol Template
