18.2 Pneumatic connections
Three pressure connectors are fitted to the back of LX Eos. A label shows their functions.
Ptot = Pitot or Total pressure
TE = TE probe
Pst = Static

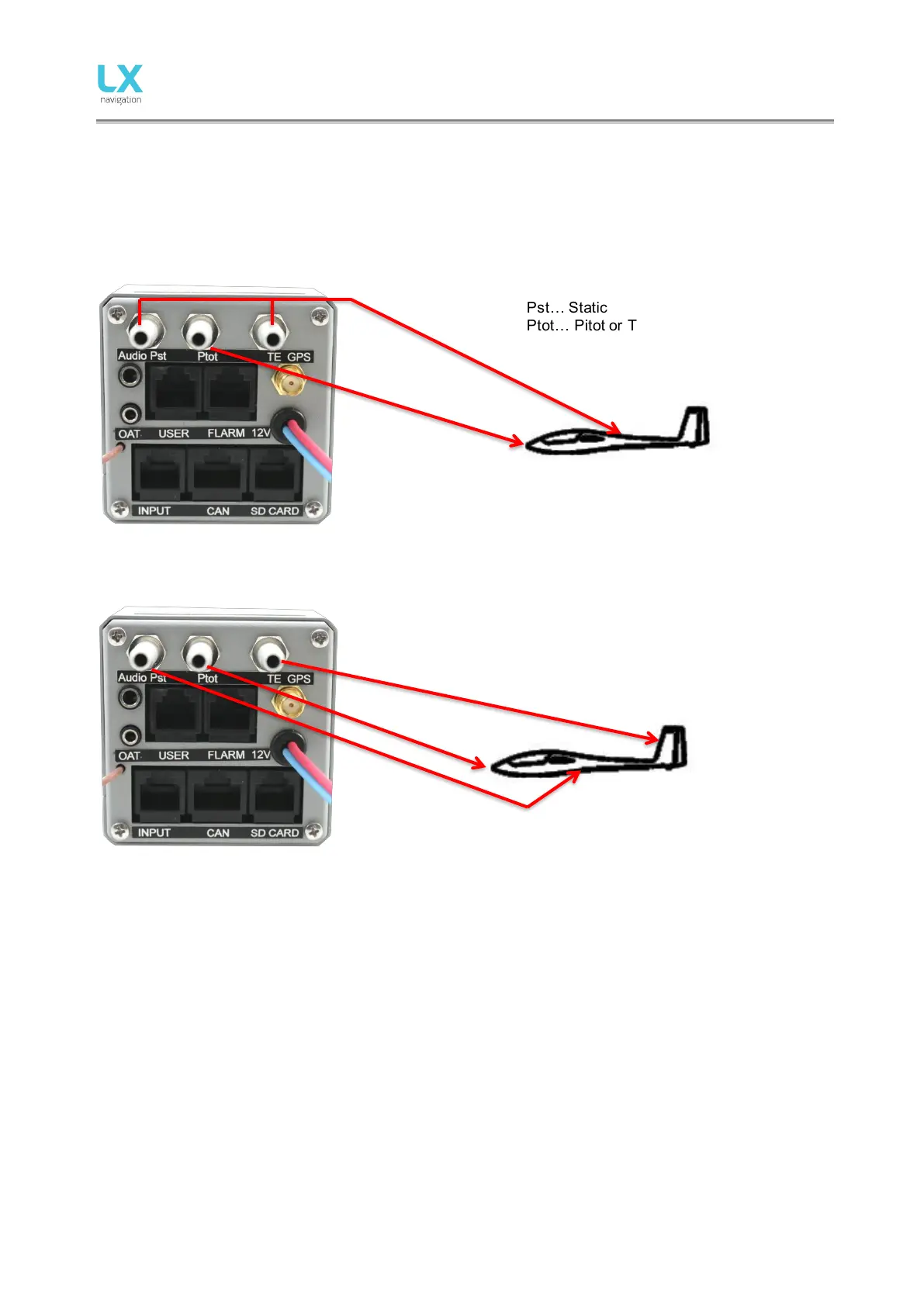

Electronic TE compensation schematics (Set TE 100%)
TE… Static
Pst… Static
Ptot… Pitot or Total pressure
TE tube installation schematics (Set TE 0%)
TE... TE probe
Pst... Static
Ptot... Pitot or Total pressure
