LX Navigation LX Eos 57 - Electrical Installation

Document Name:
LX Eos user’s manual
Version: 1.7
Page 37 of 47

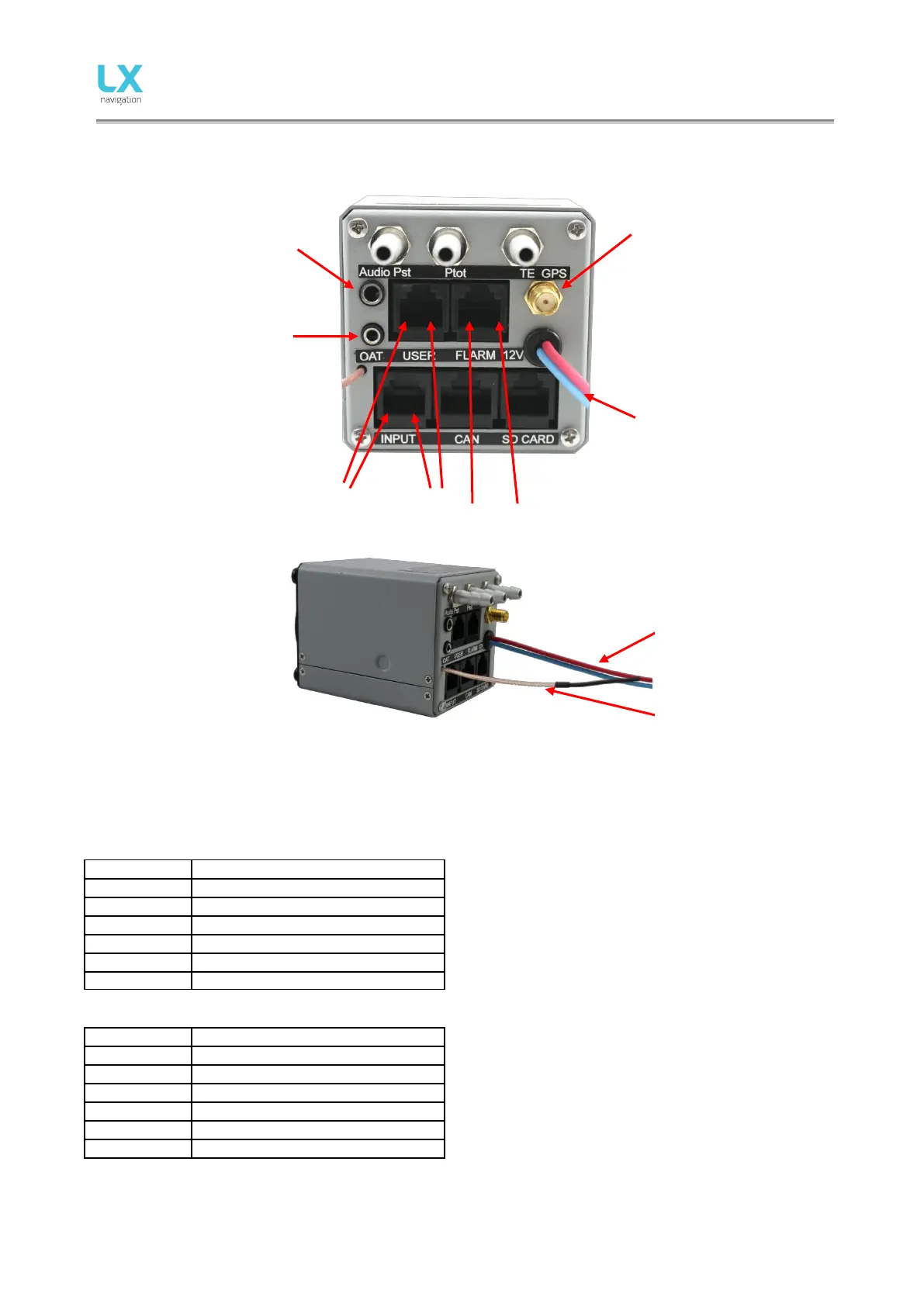

18.3 Electrical installation
Pin out on all connectors:
Pin 1 to pin 6 or 8 (on picture from left to right).
User port (RJ11 – 6pin connector)
Pin number
Description
1
12 V out
2
3.3 V out (max 100 mA)
3
5 V out (max 500 mA)
4
RS 232 data in
5
RS 232 data out
6
GND
Flarm port (RJ11 – 6pin connector)
Pin number
Description
1
12 V out
2
Not used
3
GND
4
RS 232 data in
5
RS 232 data out
6
GND
Pin 1
Pin 6
Audio output
(3.3 mm jack)
OAT input
(2.5 mm jack)
GPS antenna
Pin 1
Pin 6
12V (red wire)
GND (blue wire)
Bluetooth
antenna
Main power
