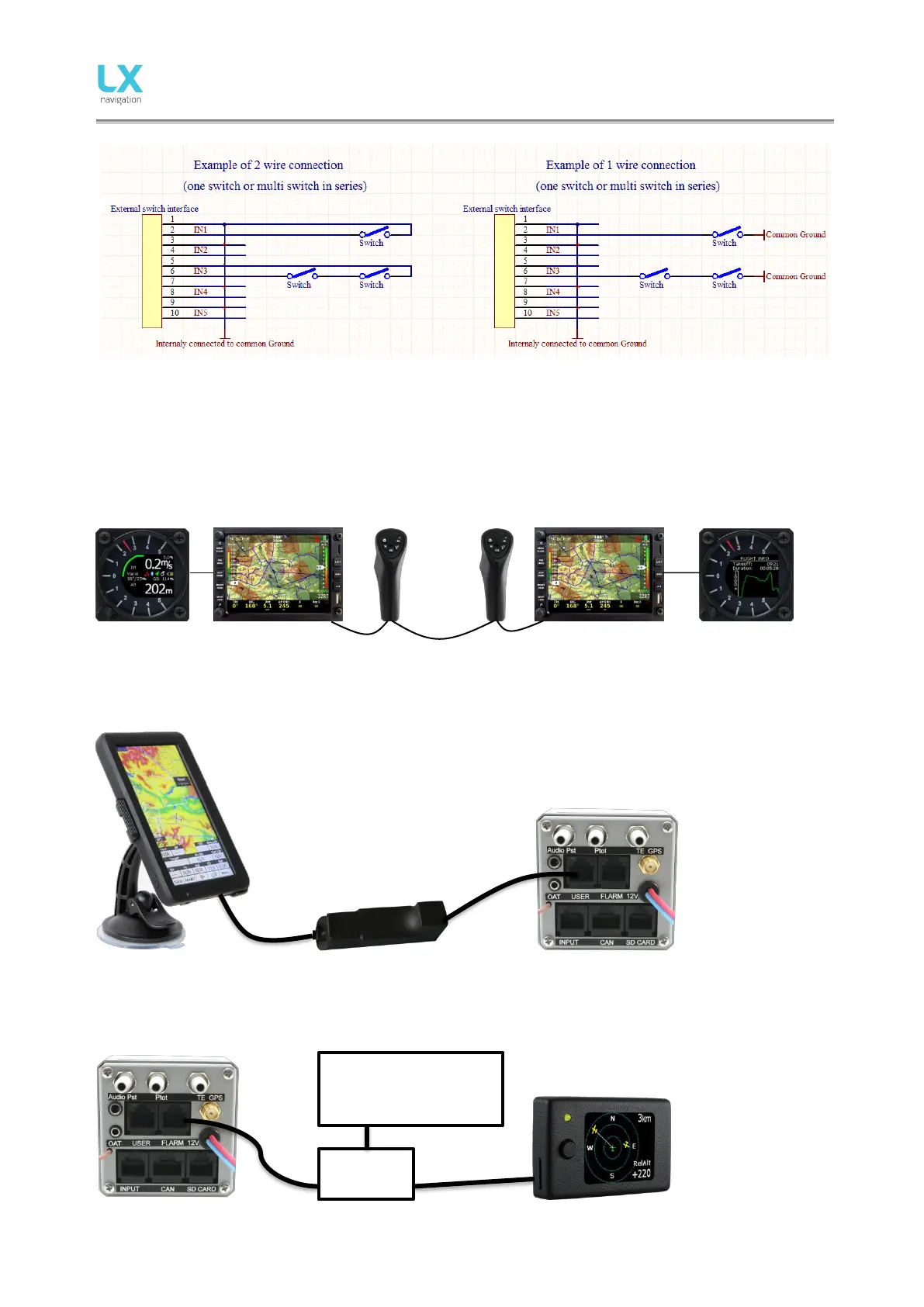

Example of both connections (1 and 2 wire)
18.5 Installation of options
LX Eos is compatible with all LX CAN based devices (LX Zeus, LX Joy, LX Eos Repeater, CAN Compass,
AHRS, and others). LX Eos has an integrated CAN terminator so other terminator should not be used. Only
one CAN terminator should be used (be careful when using LX Eos with LX Zeus).
18.6 Configurations
18.6.1 LX Eos – OUDIE
OUDIE LX Eos PNA Power & Data LX Eos
18.6.2 LX Eos – Flarm
1:1 1:1
LX Eos Flarm Colour Display II (optional)
LX Flarm
spliter
Flarm / RedBox
MiniBox / Flarm Mobile
FlarmMouse
1:1
