214683 311 Revision A

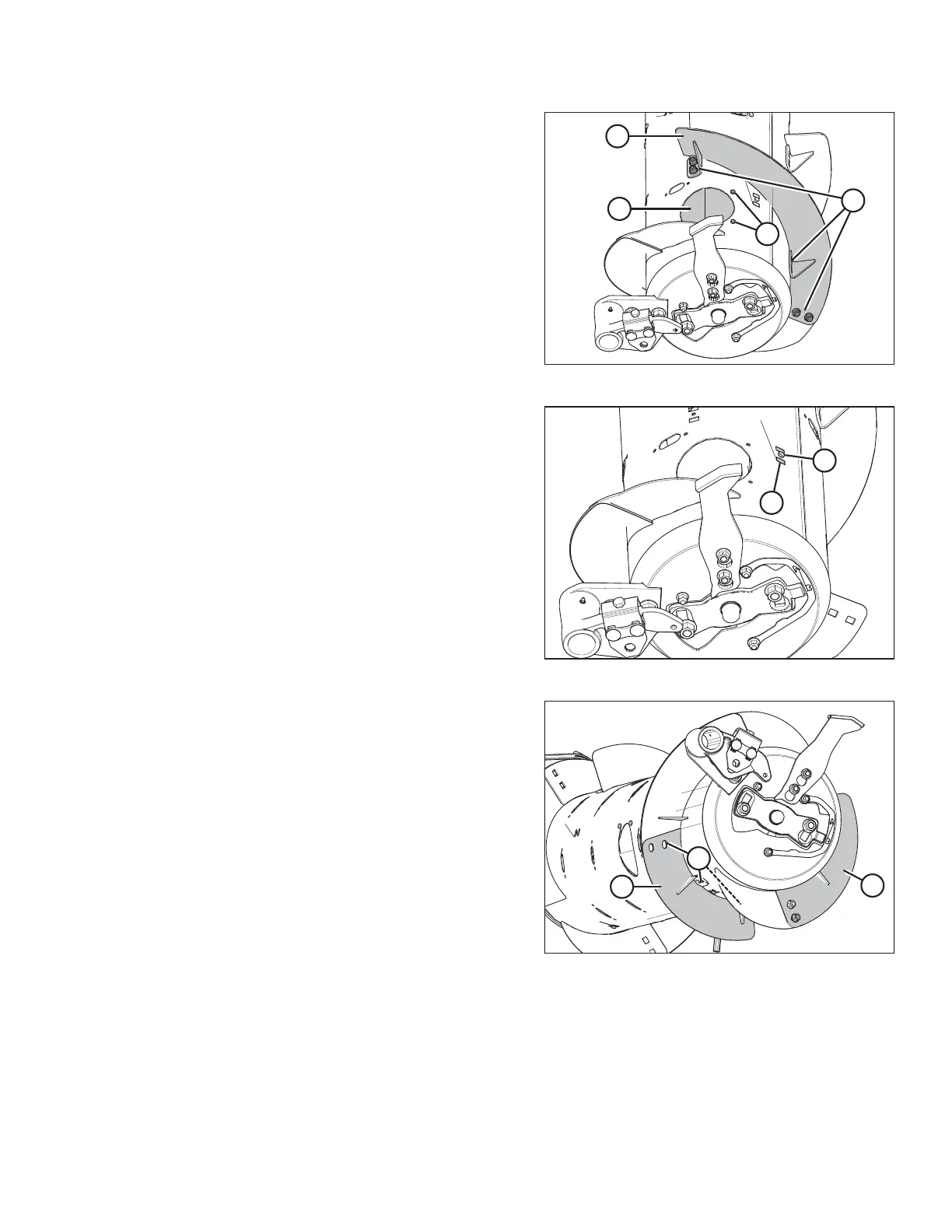

Figure 4.6: Narrow Configuration (Right Side)
2. Remove bolts (A) and access cover (B) from right end
of auger. Retain for later reassembly.
NOTE:
If necessary, remove multiple access covers for better
access.
3. Remove hardware (C) and bolt-on flighting (D) from the
right side of the auger. Repeat for all the remaining
hardware and bolt-on flighting. Discard flighting, but
retain hardware to attach new flighting.
4. Repeat Steps 2, page 311 and 3, page 311 at the left
side of the feed auger.
Figure 4.7: Narrow Configuration (Right Side)
5. Remove flighting slot plug (B), M6 bolt (A), and tee nut
from inside the feed auger. Repeat at the left side of the
feed auger. Retain plug and hardware for reinstallation.
Figure 4.8: Medium Configuration (Right Side)
6. Install two bolt-on flightings (A) on the right side of the
auger as shown, and secure each flighting with six
carriage head bolts and nuts at locations (B).
IMPORTANT:
Flighting bolt heads must be installed on inside of auger
to prevent damage to internal components.
NOTE:
Flightings are NOT included in this kit. Order flighting
kits MD #287031 separately.
7. Torque all nuts and bolts to 47 Nm (35 lbf·ft) to eliminate
deflection on flighting, then torque them to 58–64 Nm
(43–47 lbf·ft).
HEADER ATTACHMENT/DETACHMENT
