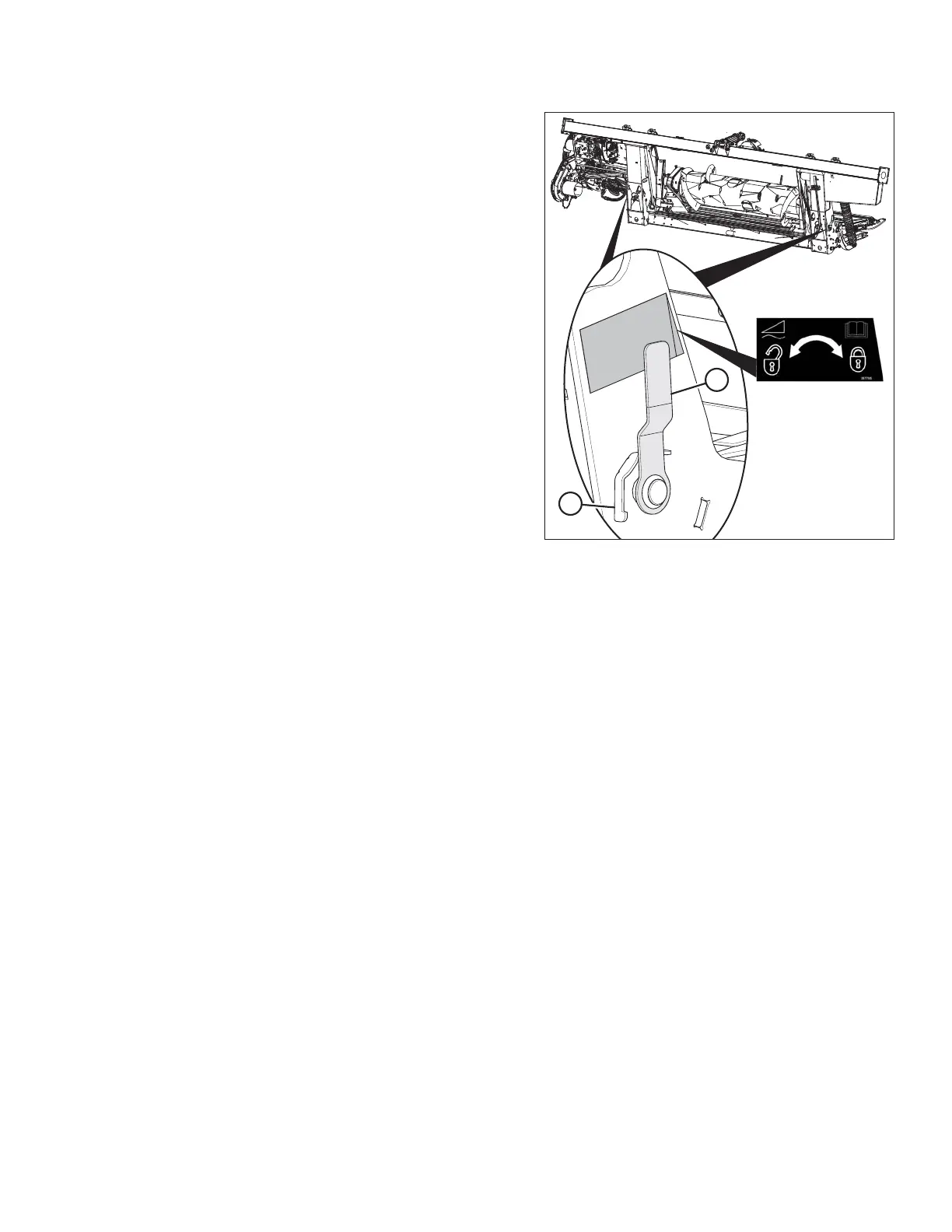

Figure 4.93: Float Lock Handle (Right Side
Shown in Detail, Left Side Opposite)
15. Disengage the float locks by pulling each float lock
handle (A) away from the float module, and setting it in
the unlocked position (B).
