MacDon R113 - Page 31

214633 19 Revision C
1030146
A
B
CC

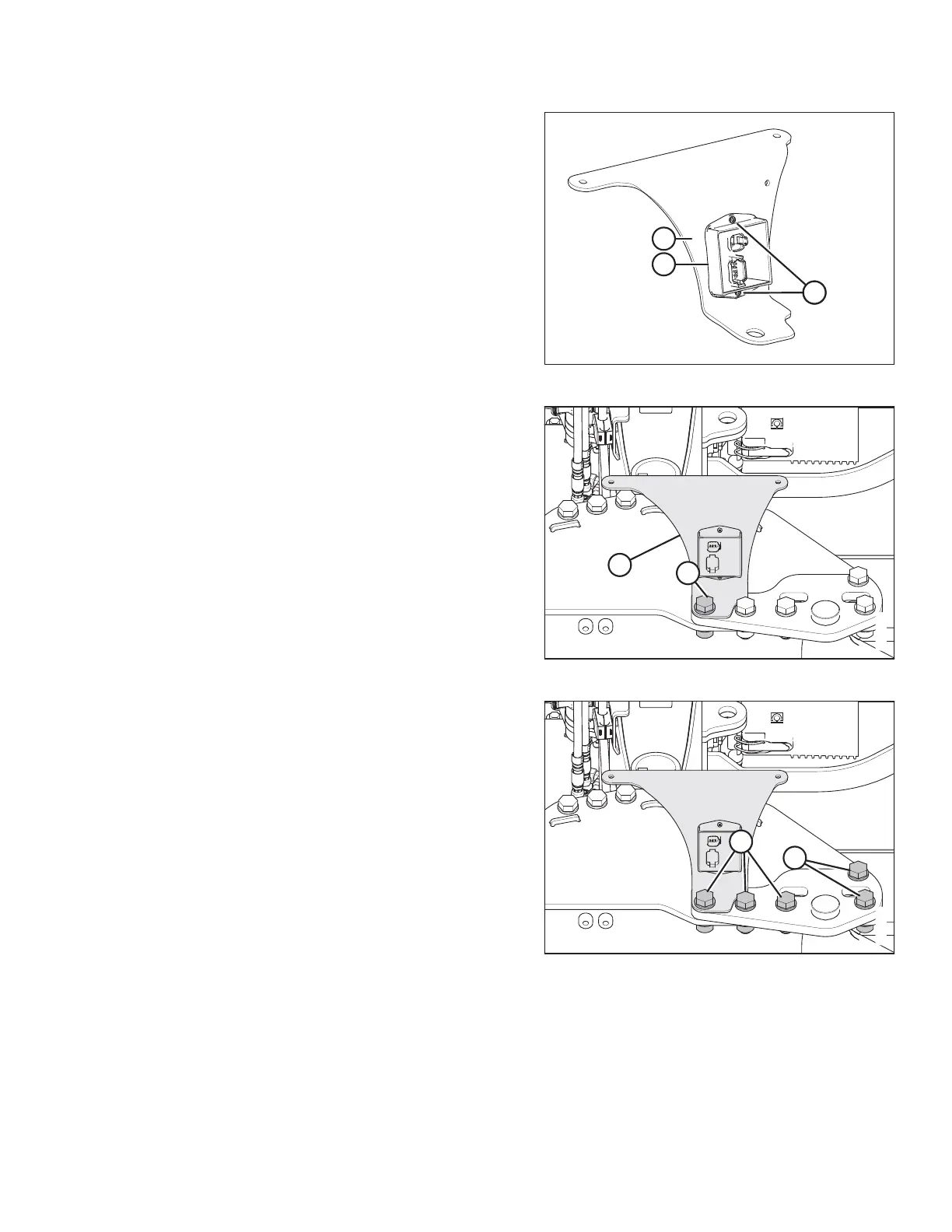

Figure 3.17: Lighting Module Attached to Bracket
17. Attach module (A) to cover assembly bracket (B) using two
M4 x 16 screws (C) (MD #136313) and M4 nuts
(MD #030855). Torque hardware to 3 Nm (27 lbf·in).
1022605
A
B
Figure 3.18: Cover Support
18. Install cover support (B).
19. Secure cover support (B) in place with one M20 x 65
bolt (A) (MD #136157), hardened washer (MD #112130),
and nut (MD #136122).
1022606
A
B
Figure 3.19: Cover Support
20. Torque bolts (A) to 461 Nm (340 lbf·ft).
21. Remove and retain bolts (B).
INSTALLATION INSTRUCTIONS
