MacDon R113 - Page 41

214633 29 Revision C
1014929
A
B
C
D

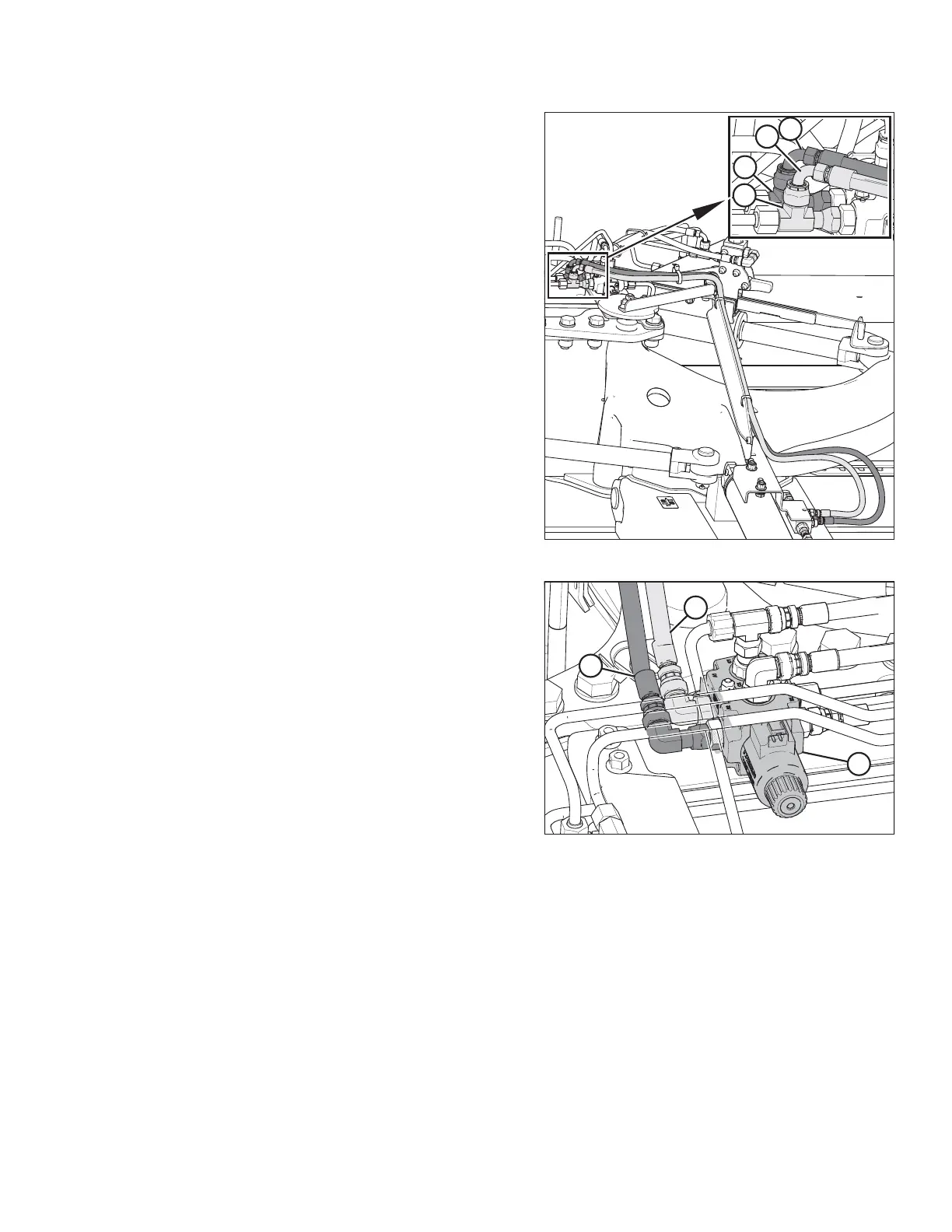

Figure 3.43: Transport Swing Control
13. Install hose (A) (MD #246366) from the outer port (rod end)
on the transport cylinder block to tee fitting (D) in port D of
the transport swing control.
14. Install hose (B) (MD #246366) from the inner port (base
end) on the transport cylinder block to tee fitting (C) in port
C of the transport swing control.
1022691
A
B
C
Figure 3.44: Selector Valve Supply
15. Connect hose (B) (with red collar #2), from the rear of the
hitch, to the fitting in port A1 on selector valve (C).
16. Connect hose (A) (with blue collar #2), from the rear of the
hitch, to the fitting in port A2 of selector valve (C).
17. Secure hoses (A) and (B) together with a cable tie
(MD #30753).
INSTALLATION INSTRUCTIONS
