Installing secondary lift hose for field wheels
NOTE:
The secondary lift hose is required to lift the field wheels fully into storage position when the rotary disc pull-type is in
transport mode.
Retrieve the following secondary lift hose from the shipping bag:
• R113: Use hose MD #224160.
• R116: Use hose MD #224162.
1014903
A
B
C

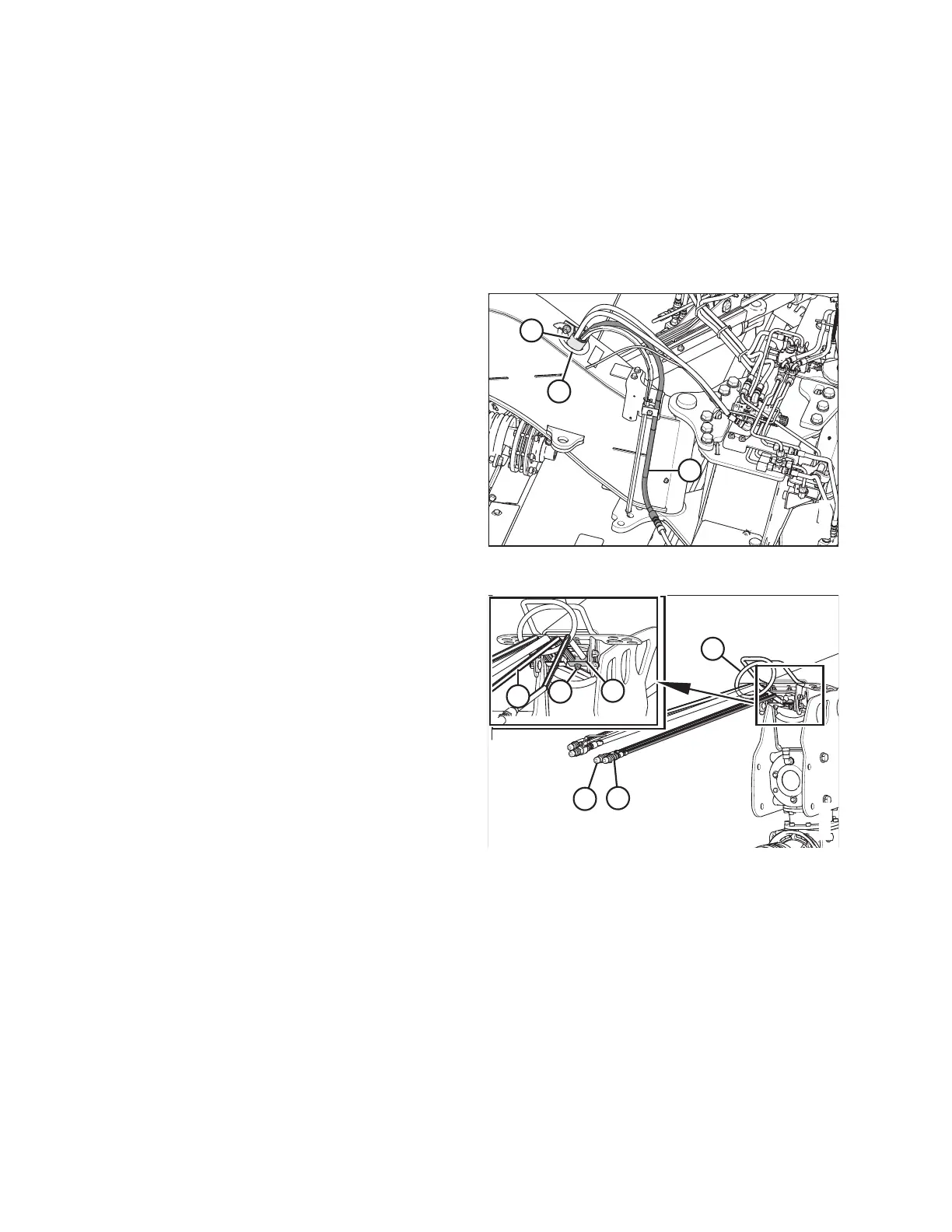

Figure 3.45: Lift Hoses
18. Retrieve the blue collars with the number one (blue
collar #1) on them (MD #136383) from the shipping bag.
Place one collar on each end of secondary lift hose (B).
19. Undo adjustable strap (A) around hoses at aft end of hitch.
20. Locate the green wire preinstalled in the hitch for pulling
hoses through the hitch.
NOTE:
If you are installing a hydraulic center-link (MD #B5810),
pull the hydraulic hoses through the hitch at the same time
as the lift hose.
21. At the rear of the hitch, feed the male ORB end of hose (B)
into access hole (C). Route the hose through the hitch to
the opening at front.
1014913
A
B
C
D
E
A
Figure 3.46: Lift Hoses
22. Position long hose (A) so that the exposed length at the
front of the hitch matches existing hose (B). Route the hose
through guide (C).
23. At the front of the hitch, loosen nut (D) on hose clamp (E)
until hose (A) can be positioned in the clamp.
24. Tighten nut (D).
