Magellan GPS ColorTRAK 19
Using the
Compass
Screen
As well as displaying four cutomizable navigation fields, the COMPASS
screen provides a pointer compass and Course Deviation Indicator (CDI) to
help you reach your destination.
The red Course Direction Icon displays your course over ground while the
large white Steering Indicator displays the bearing of the destination relative
to the course over ground. When the arrows are pointed in the same
direction, you are on course. The CDI indicates your distance left or right of
the courseline.
The NorthFinder ™ feature displays the position of the sun and moon
icons, when above the horizon, which allows you to determine the direction
of north and your destination while standing still. The destination icon
shows the general direction in which you should be travelling.

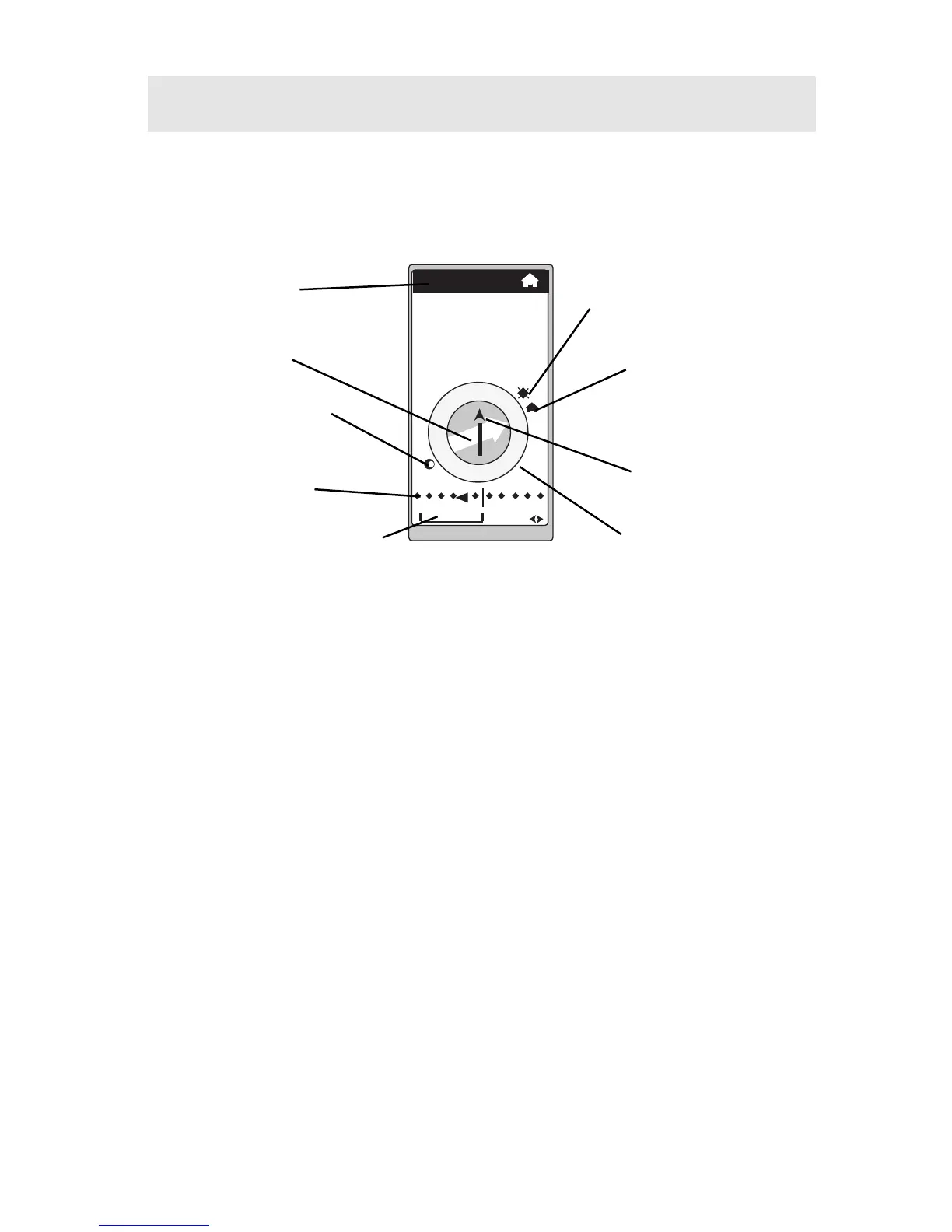

Position Icon
CDI Scale
(L/R arrows to
change)
Destination
Name
Destination
Icon
Sun Icon
Steering Indicator to
Destination
Moon Icon
Course Deviation
Indicator
Compass
TO: HOME
2.0
m
I
E
N
WS
+
+
+
+
DST
3.52
m
I
SOG
2.7
m
H
BRG
127
m
°
COG
156
m
°
