Magnamed Fleximag - Connection to Power Supply; Verifications Before Use

24
MAGNAMED TECNOLOGIA MÉDICA S/A
OK
Item
Assembly Sequence
9

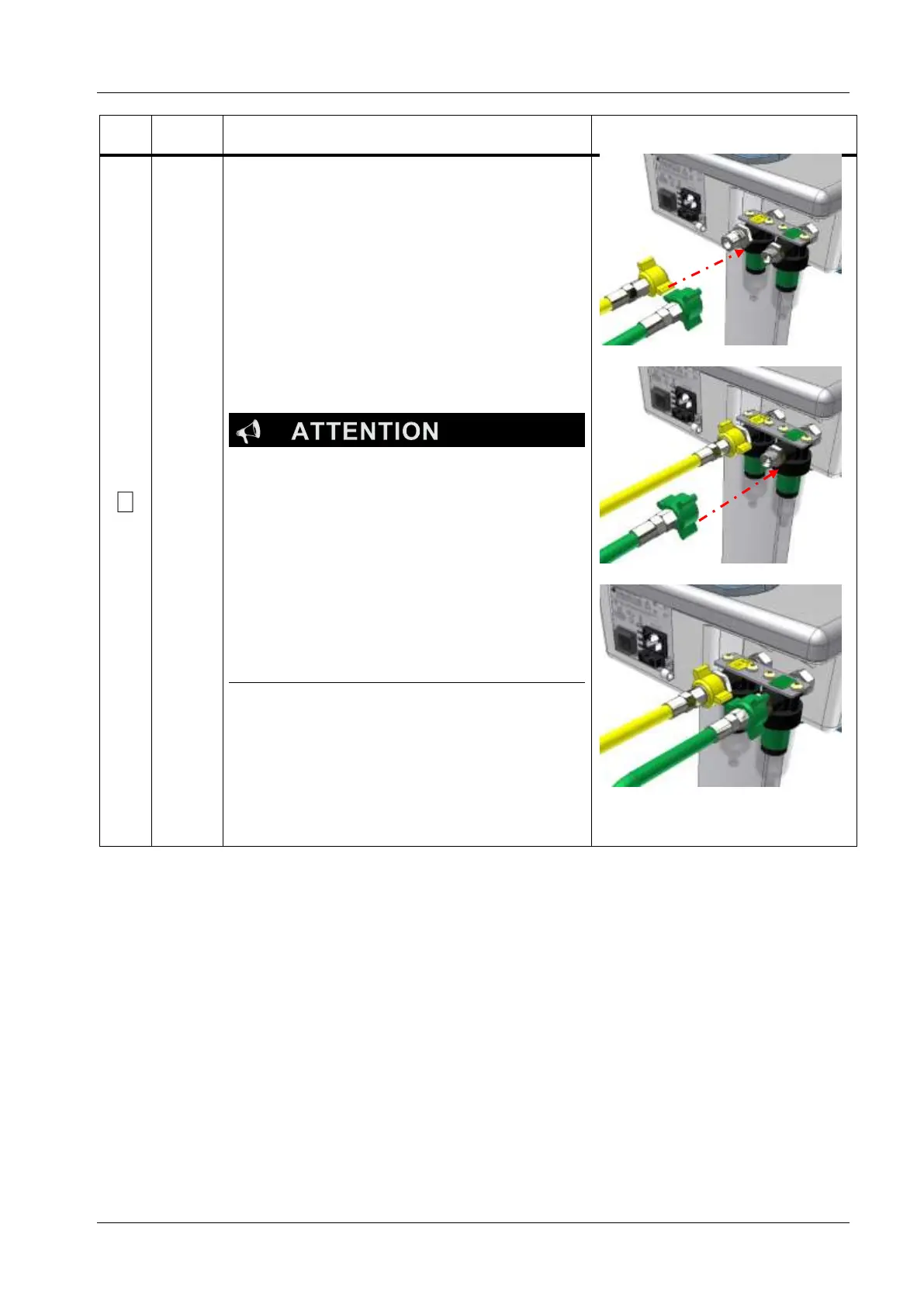

Connect an Air hose in the indicated connection
according to the illustration to the right (yellow).
Connect an O
2
hose to the indicated connection
according to the illustration to the right (green).
The valve assembly of the pneumatic system
prevents cross flow of gas.
• Pressures superior to upper limit can
damage the equipment.
• The gas supplies connected to the
equipment must meet the
requirements of ABNT NBR
12188:2012
