5 Preparation for Use
Assembly
OK
Item
Assembly Sequence
1
Use the four screws and key included with the
equipment to screw the ventilator base with trundle.
-
2

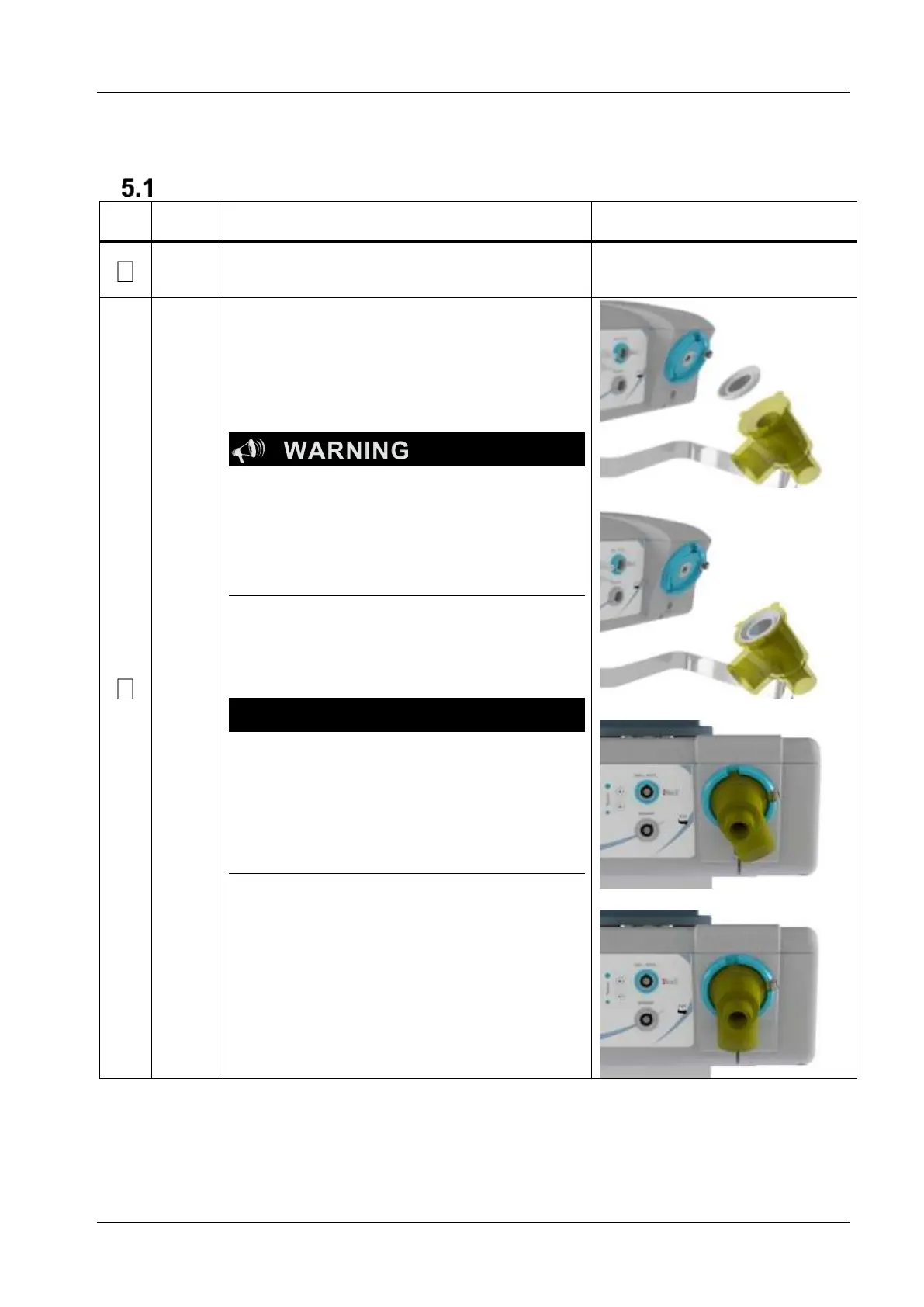

Position the diaphragm on the exhalation
valve as shown in the figure.
Position the exhalation valve locators on the
base, press and rotate clockwise to lock.
• Correctly position the diaphragm and
the exhalation valve in order to avoid
the expiratory limbs obstruction.
 ATTENTION
• To unlock the valve, press the base
lock and turn the valve
counterclockwise.
