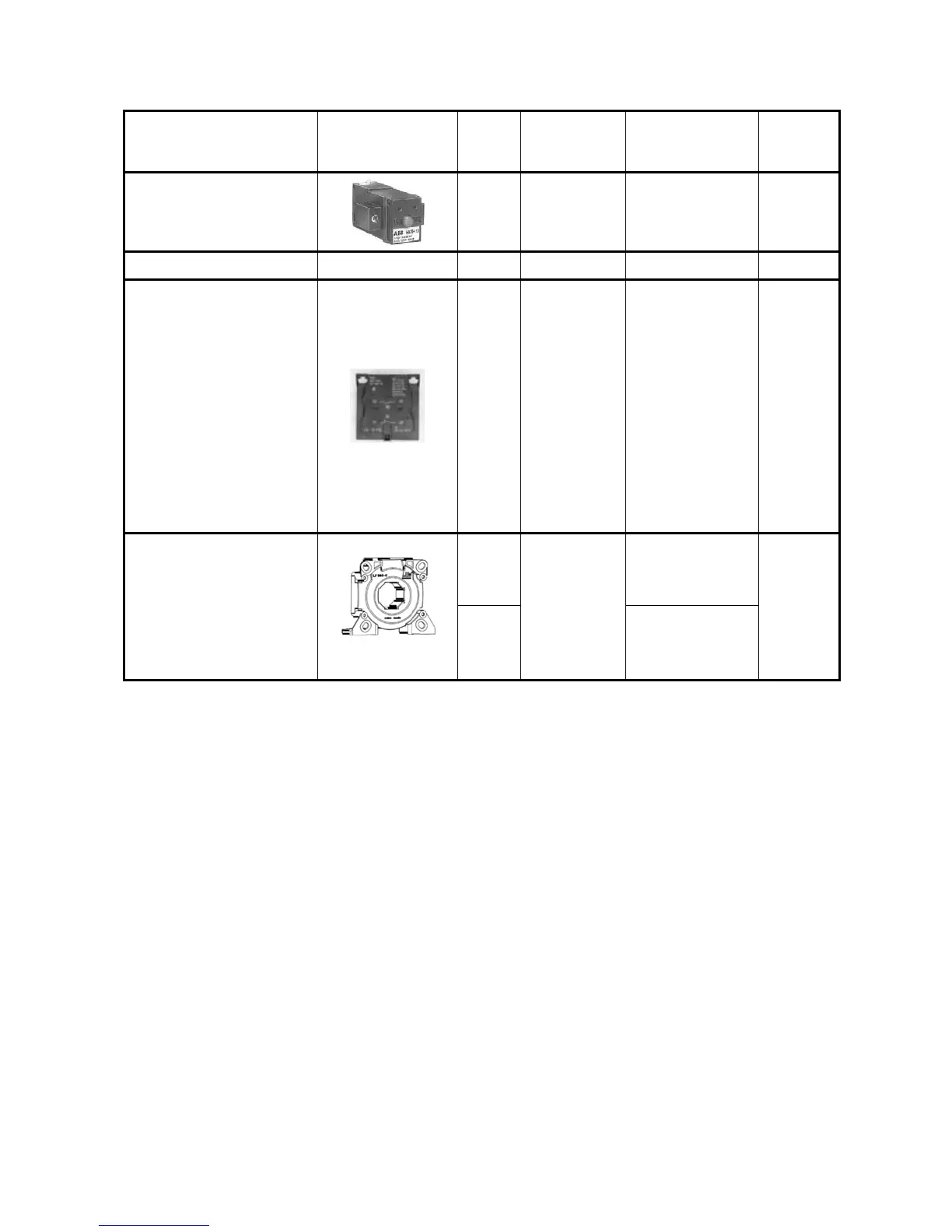

Appendix – Spare Parts List
164
Description
Pictorial
Reference
Drive
Rating
Reference
Designator
Magnetek kit
Number
Quantity
Per
Drive
DC Output Contactor Coil
ABB360 240Vac
300A
1M Coil,
240Vac
LA05P00032-0219 1
LUG kit, contains 5.0
All L1-3, MEout LA05P00204-0278 1
OPTION: Dual auxiliary
Allows the motor contactor
auxiliaries to be in parallel.
This adds to the reliability
of the contactor confirm.
Contains;
Wiring harness
CAL16-11C (1NO 53,54 /
1NC 61,62)
CAL16-11D (1NO 83,84 /
1NC 71,72)
Installation instructions
ALL
1M AUX. RH
LH mount
LA46S04453-0200 1
Current transduce
Contains one device, to order
the replacement part your CT
must look like this. If it
doesn’t refer to the upgrade
kit. It is not possible to mix
and match the LA and LF
series transducers.
LF series
125-
200A
1, 2, 3, 5, 6CT
LA05P00217-0091
5
250-
300A
LA05P00217-0092
