Appendix – Spare Parts List
165

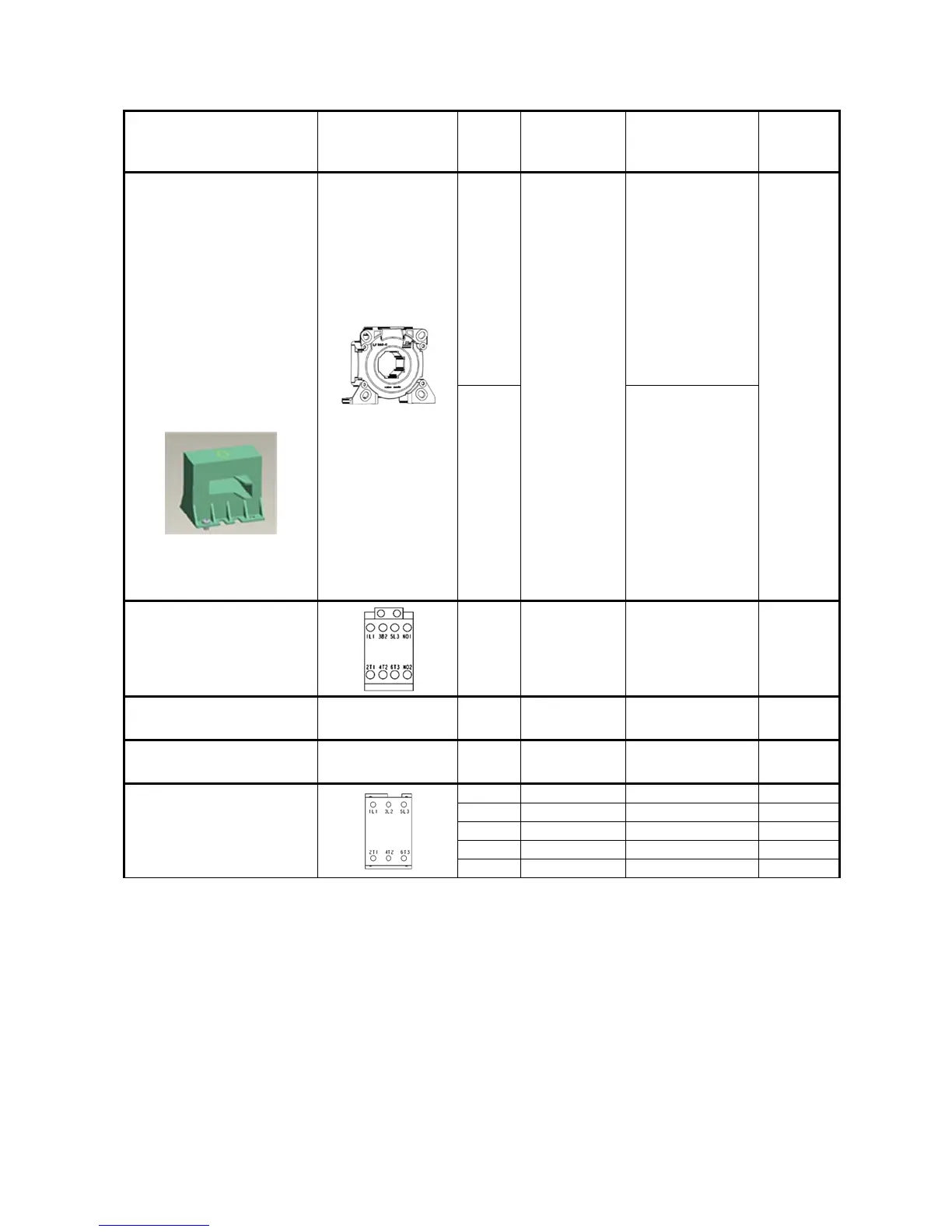

Description
Pictorial
Reference
Drive
Rating
Reference
Designator
Magnetek kit
Number
Quantity
Per
Drive
Current feedback
transducer upgrade kit;
Contains; cube I.D. boards,
five sensors, cables and
adaptor plate. The new LF
style transducer shown in the
top view, was introduced in
early 2012 and has the LEM
P/N LF…, the LA style which
has been used up to that
point is in the lower view, this
item will no longer be
available as a spare part.
LA series
LF series
125-
200A
1, 2, 3, 5, 6CT
LA05P00217-1091
1
250-
300A
LA05P00217-1092
Precharge Contactor
Pre-charge Contactor
ALL PCM LA05P00037-0312 1
Touch Safe cover for the line
terminals
All LA46S04453-0020 1
Touch Safe cover for the 3-
Phase Auto transformer
All LA46S04453-0110 1
Line Contacto
230VAC Control Power Line
Contactor
125A UTM LA05P00032-0201 1
150A UTM LA05P00032-0201 1
200A UTM LA05P00032-0201 1
250A UTM LA05P00032-0202 1
300A UTM LA05P00032-0202 1
