Magnetek Elevator Quattro DC - Page 168

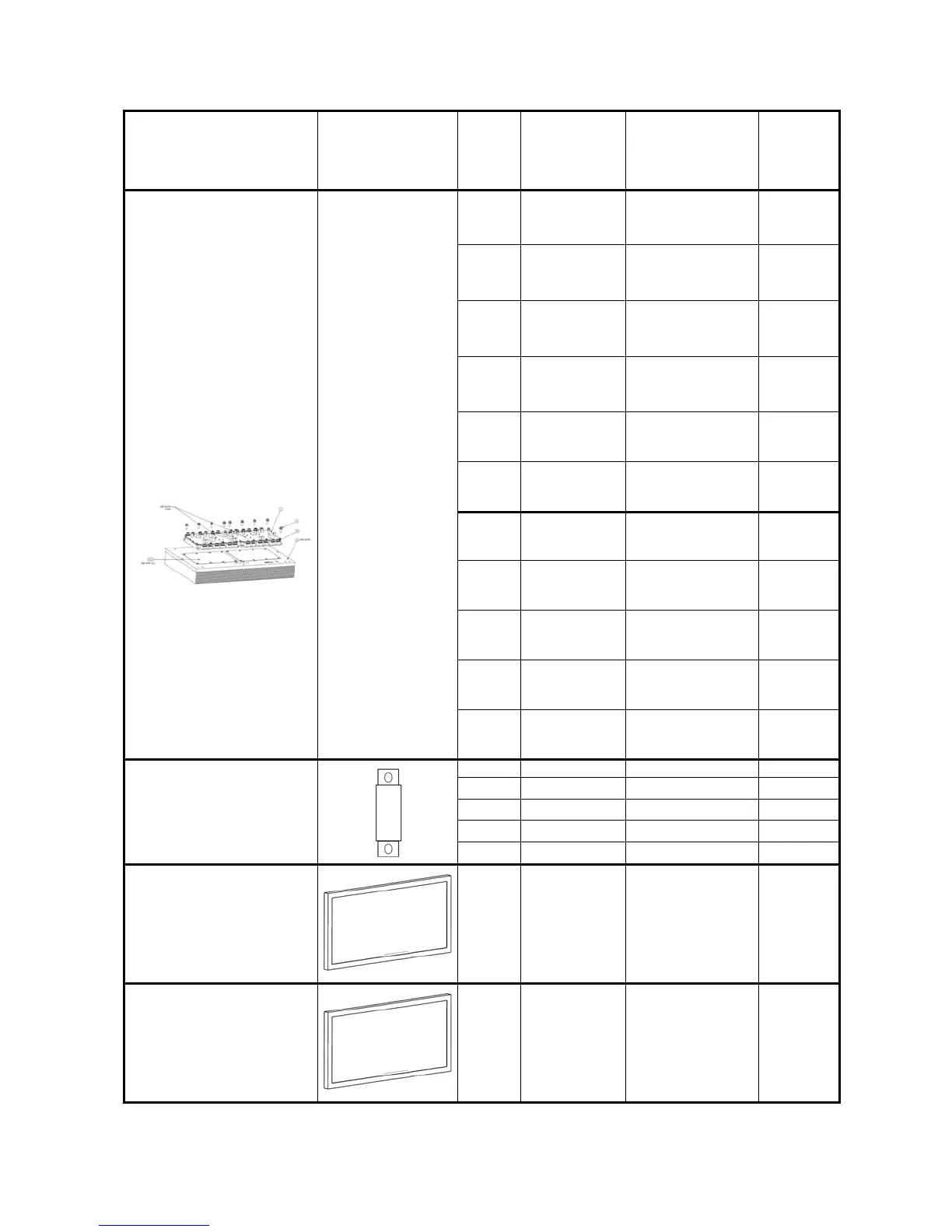

Appendix – Spare Parts List
166
Description
Pictorial
Reference
Drive
Rating
Reference
Designator
Magnetek kit
Number
Quantity
Per
Drive
IGBT Assembly only
Includes:
1. IGBT and gate PCB
and gate power
harness.
2. The kit will contain
instruction and tools
to change just the
IGBT and re-install
back onto the
heatsink.
3. This kit does not
include the heatsink
it is shown for
illustration purposes
only.
125A Line Side LA46S04256-5125 1
125A Motor Side LA46S04256-6125 1
150A Line Side LA46S04256-5150 1
150A Motor Side LA46S04256-6150 1
200A Line Side LA46S04256-5200 1
200A Motor Side LA46S04256-6200 1
250A Line Side LA46S04256-5250 1
250A Motor Side LA46S04256-6250 1
300A
Line Side LA46S04256-5300 1
300A
Motor Side LA46S04256-6300 1
300A Motor Side LA46S03825-7300 1
AC Input Fuses
Replacement fuses for the
AC input to the drive. Kit
contains 3 fuses.
125A LF1-LF3 LA46S04305-0125 1
150A
LF1-LF3 LA46S04305-0150
1
200A
LF1-LF3 LA46S04305-0200
1
250A
LF1-LF3 LA46S04305-0250
1
300A
LF1-LF3 LA46S04305-0300
1
Door Filter, 18 x 9.5
Disposable air filter located in
the door
ALL FLTR1 LA05P00015-0049 1
Door Filter, 18 x 15
Disposable air filter located in
the door, used in the door
with blowers
ALL FLTR1 LA05P00015-0075 1
