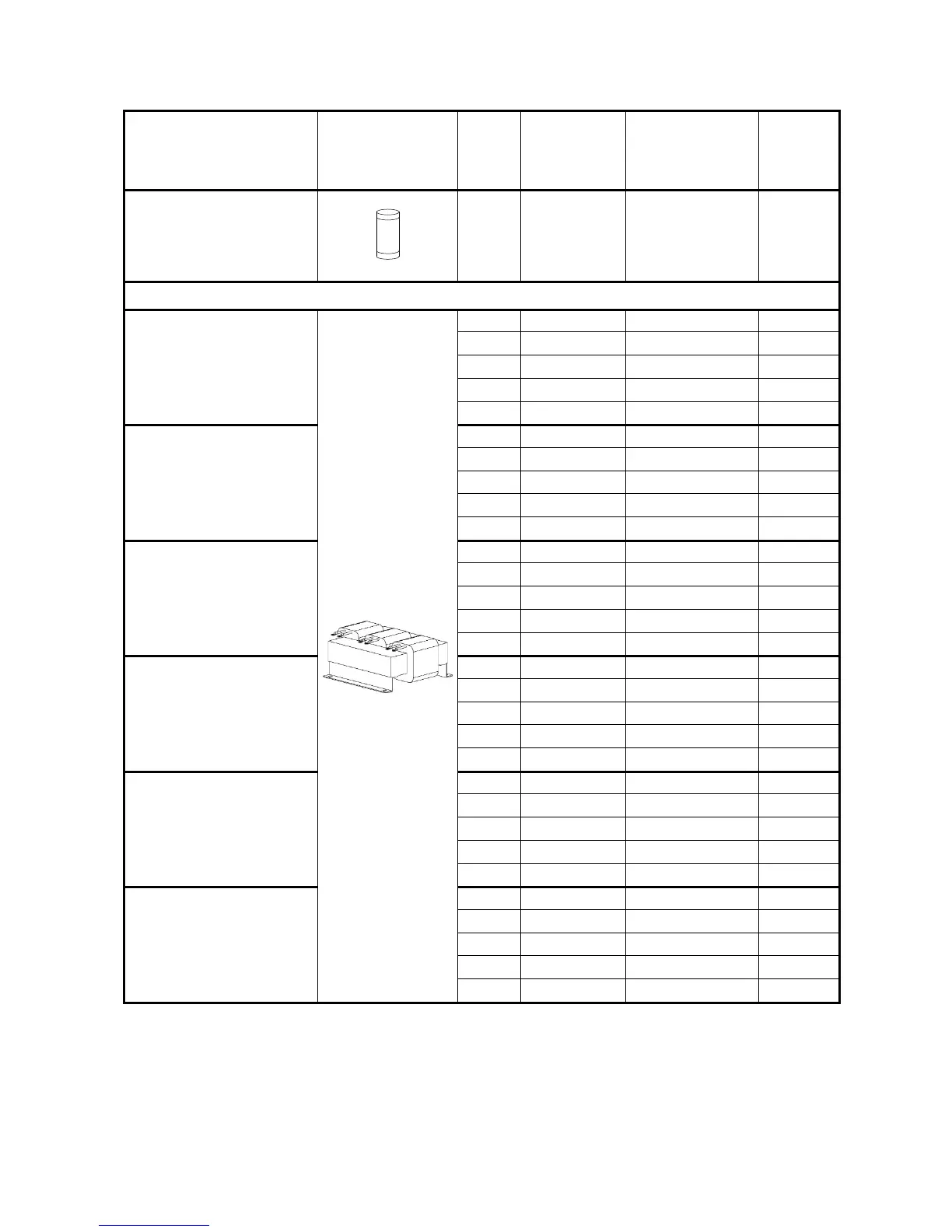

Appendix – Spare Parts List
167
Description
Pictorial
Reference
Drive
Rating
Reference
Designator
Magnetek kit
Number
Quantity
Per
Drive
Low Voltage Field Supply
Fuses
Kit contains 2.0 fuses. 30A,
700VAC Semiconductor
fuses
ALL F3, F4 LA05P00017-0597 2
All Auto Transformer kits contain power cables and fuse hardware modification kit.
Auto Transformer (480:380)
Optional Transformer input to
drive. 480VAC primary,
380VAC secondary, 60Hz.
125A - LA46S04263-1100 1
150A - LA46S04263-1110 1
200A - LA46S04263-1120 1
250A - LA46S04263-1130 1
300A - LA46S04263-1140 1
Auto Transformer (575:380)
Optional Transformer input to
drive. 575VAC primary,
380VAC secondary, 60Hz.
125A - LA46S04263-1101 1
150A - LA46S04263-1111 1
200A - LA46S04263-1121 1
250A - LA46S04263-1131 1
300A - LA46S04263-1141 1
Auto Transformer
(208/240:380)
Optional Transformer input to
drive. 208/240VAC primary,
380VAC secondary, 60Hz.
125A - LA46S04263-1103 1
150A - LA46S04263-1113 1
200A - LA46S04263-1123 1
250A - LA46S04263-1133 1
300A - LA46S04263-1143 1
Auto Transformer
(208/240:480)
Optional Transformer input to
drive. 208/240VAC primary,
480VAC secondary, 60Hz.
125A - LA46S04263-1104 1
150A - LA46S04263-1114 1
200A - LA46S04263-1124 1
250A - LA46S04263-1134 1
300A - LA46S04263-1144 1
Auto Transformer
(380/400/415:480)
Optional Transformer input to
drive. 380/400/415VAC
primary, 480VAC secondary
50/60Hz.
125A - LA46S04263-1105 1
150A - LA46S04263-1115 1
200A - LA46S04263-1125 1
250A - LA46S04263-1135 1
300A - LA46S04263-1145 1
Auto Transformer (575:480)
Optional Transformer input to
drive. 575VAC primary,
480VAC secondary, 60Hz.
125A - LA46S04263-1106 1
150A - LA46S04263-1116 1
200A - LA46S04263-1126 1
250A - LA46S04263-1136 1
300A - LA46S04263-1146 1
