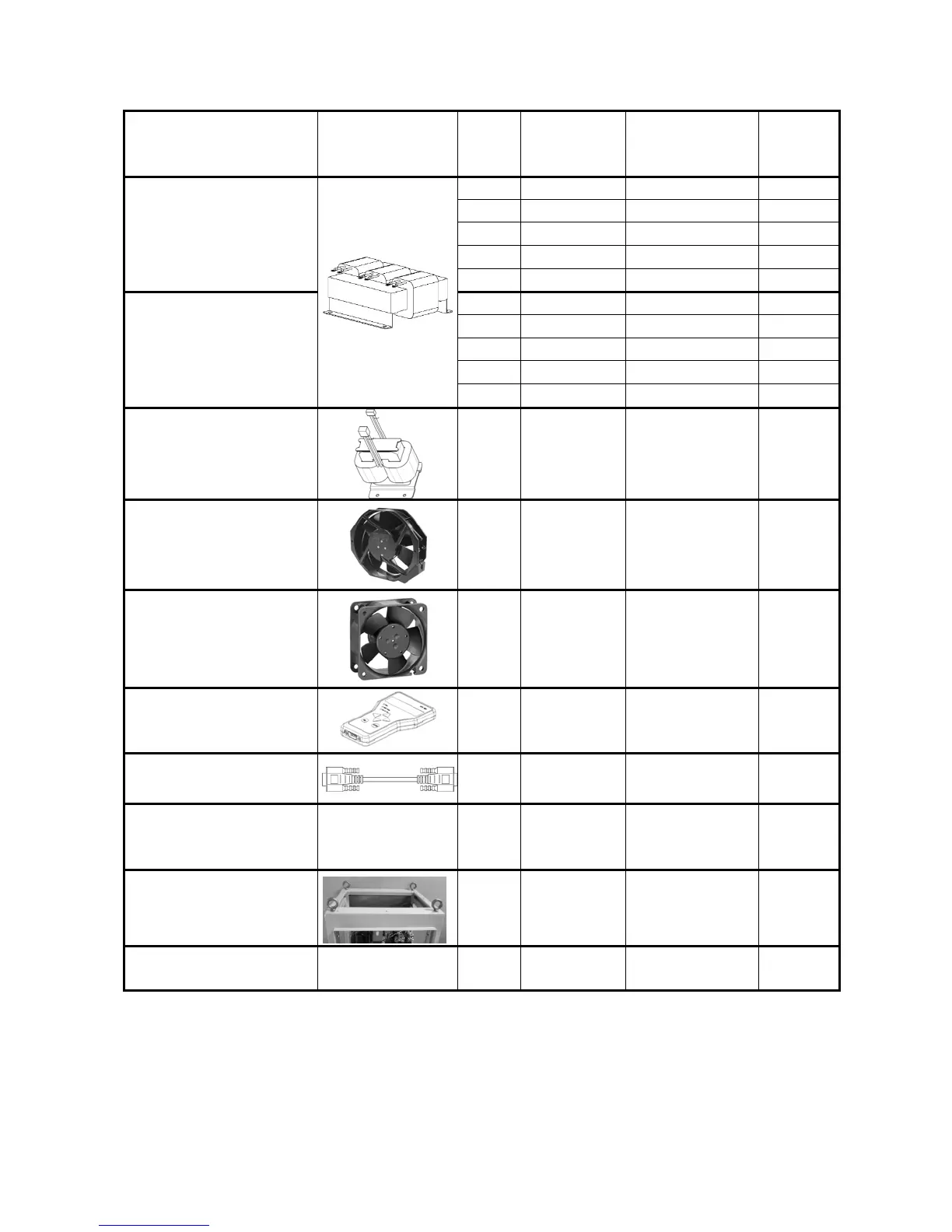

Appendix – Spare Parts List
168
Description
Pictorial
Reference
Drive
Rating
Reference
Designator
Magnetek kit
Number
Quantity
Per
Drive
Auto Transformer (600:380)
Optional Transformer input to
drive. 600VAC primary,
380VAC secondary, 60Hz.
125A - LA46S04263-1107 1
150A - LA46S04263-1117 1
200A - LA46S04263-1127 1
250A - LA46S04263-1137 1
300A - LA46S04263-1147 1
Auto Transformer (600:480)
Optional Transformer input to
drive. 600VAC primary,
480VAC secondary, 60Hz.
125A - LA46S04263-1108 1
150A - LA46S04263-1118 1
200A - LA46S04263-1128 1
250A - LA46S04263-1138 1
300A - LA46S04263-1148 1
Field Control Module
Low Voltage Field Module
Transformer
ALL
Low
Voltage
Field
Module
LA05P00058-1170 1
Blower Module
230 VAC Cooling Fan
ALL LA05P00016-0107 2
Field module fan
Cools heatsink of the Field
Supply
ALL LA46S04186-0010 1
Operator Keypad
Drive Programming Tool
ALL ELEV-ELOP 1
Operator Extension Cord
6 foot extension cable for
operator
ALL - ELEV-CABLE 1
Software Flash Drive
Contains Magnetek Explorer,
LS and MS Quattro Code and
the latest tech manual.
ALL - 46S04413-DU02 1
Lifting Kit
Optional Lifting Kit includes
qty (4) M8 Eyebolts and
instructional sheet
ALL QDC2-LIFTKIT 1
Touchup Paint
Aerosol spray can
Spray can ALL - 05P00100-0092 -
To Next Page
