11
57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
2
.4.2 Installing the Transmitter
The transmitter can be ordered for installation as an
Integral or Remote configuration.

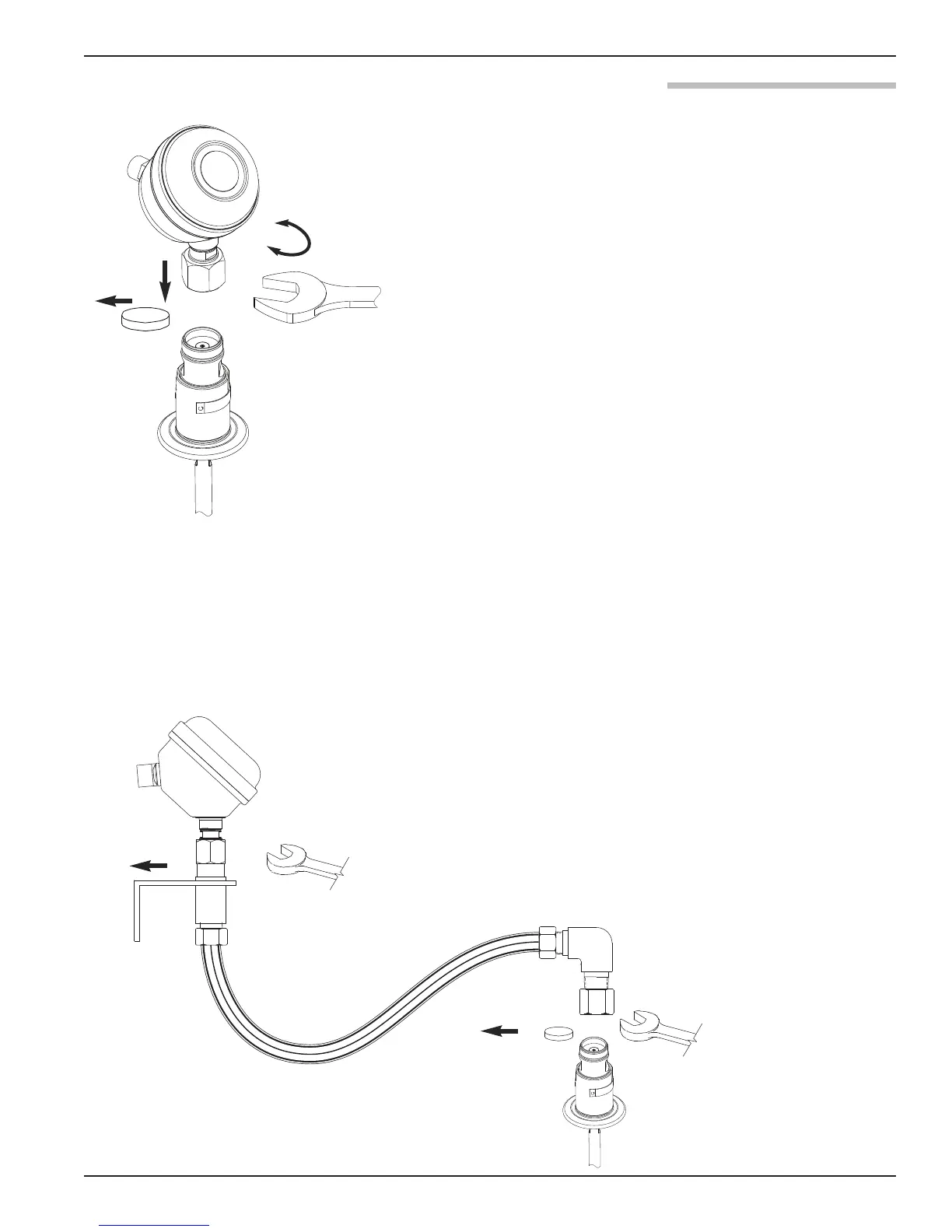

2.4.2.1 Integral Mount
➀ Remove the protective plastic cap from the top of the
probe. Store the cap in a safe place in case the transmitter
has to be removed later.
➁ Place the transmitter on the probe. Be careful not to bend
probe. Do not allow the gold, high frequency (male) con-
nector to become dirty.
➂ Align the universal connection at the base of the transmitter
housing with the top of the probe. Hand-tighten the
connection.
➃ Rotate the transmitter to face the most convenient direction
for wiring, configuration, and viewing.
➄ When the transmitter is facing the desired direction, use a
1
1
⁄2" (38 mm) wrench to tighten the universal connection on
the transmitter to 45 ft-lbs (60 Nm). A torque wrench is
highly recommended. This is a critical connection. DO
NOT LEAVE HAND-TIGHT.
2.4.2.2 Remote Mount
➀ Mount the transmitter/remote bracket as an assembly within
33" or 144" (84 or 366 cm) of the probe. DO NOT
REMOVE TRANSMITTER OR REMOTE CABLE
FROM BRACKET.
➁ Remove the protective plastic cap from the top of the
probe. Store the cap in a safe place in case the transmitter
has to be removed later.
➂ Align the universal connection at the end of the remote
assembly with the top of the probe. Using a 1
1
⁄2" (38 mm)
wrench, tighten the universal connection on the transmitter
to 45 ft-lbs (60 Nm). A torque wrench is highly recommend-
ed. This is a critical connection. DO NOT LEAVE HAND-
TIGHT.
➀
➁
➂
➃
➄
➀
➁
➂
