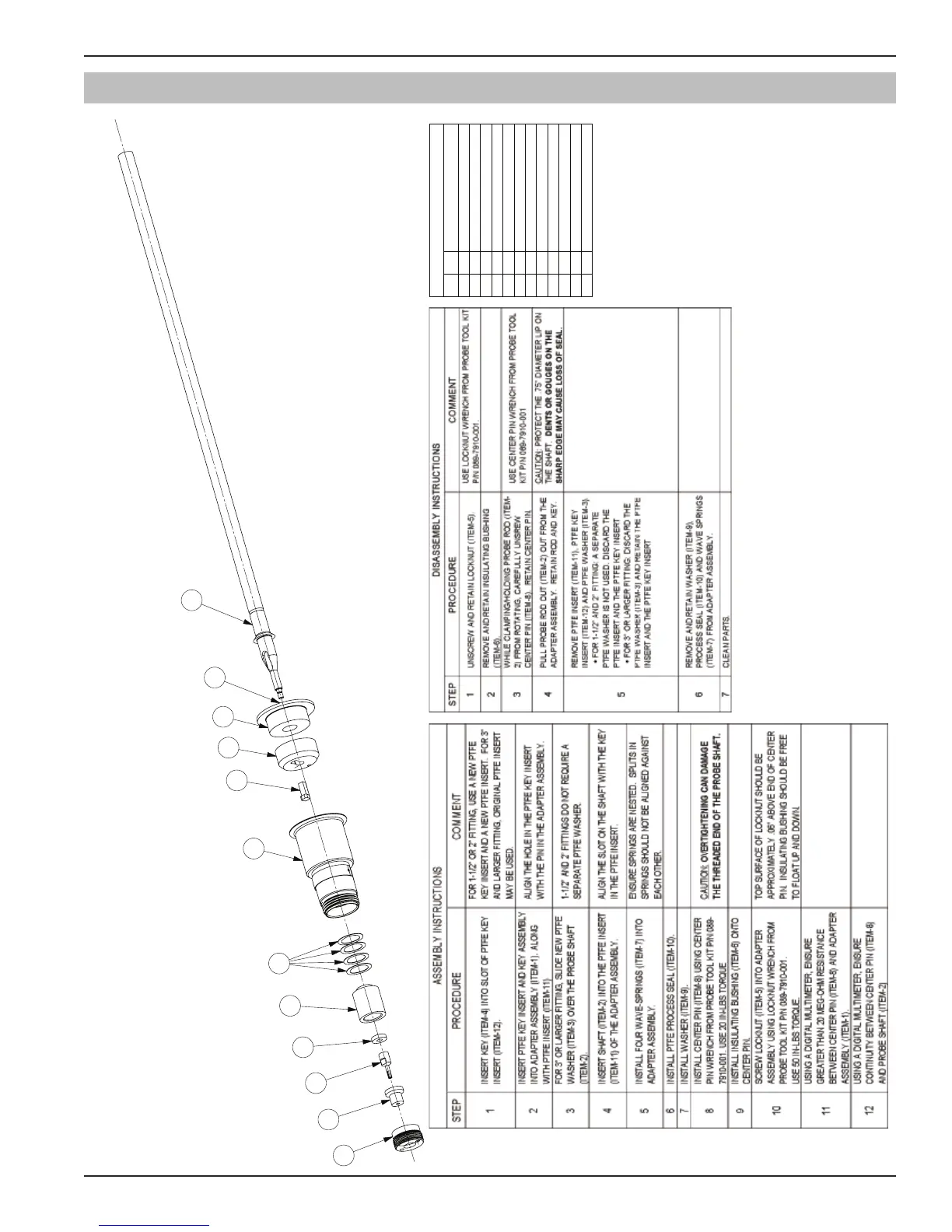

57-642 ECLIPSE Model 705 Guided Wave Radar Transmitter for Hygienic Industries
10.2 Model 7xF-E
SANITARY PROBE
PARTS
QTY
DESCRIPTION
ITEM
1
2 3
4
5 6
7
8 9
10
11
12
ADAPTER ASSEMBLY PROBE ROD WASHER (FOR 3" AND LARGER ONLY) KEY LOCKNUT INSULATING BUSHING WAVE SPRING CENTER PIN WASHER PROCESS SEAL PTFE INSERT PTFE KEY INSERT
1 1 1 1 1 1
4
1 1 1 1 1
2
3
4
1
7
10
9
8
6
5
11
12
